Trailer 2 - Cub Cadet Trailer (1971 - 1982) 2 Trailer - Axle, Body, Drawbar, Fender, Latch And Wheels Parts Diagram

Trailer

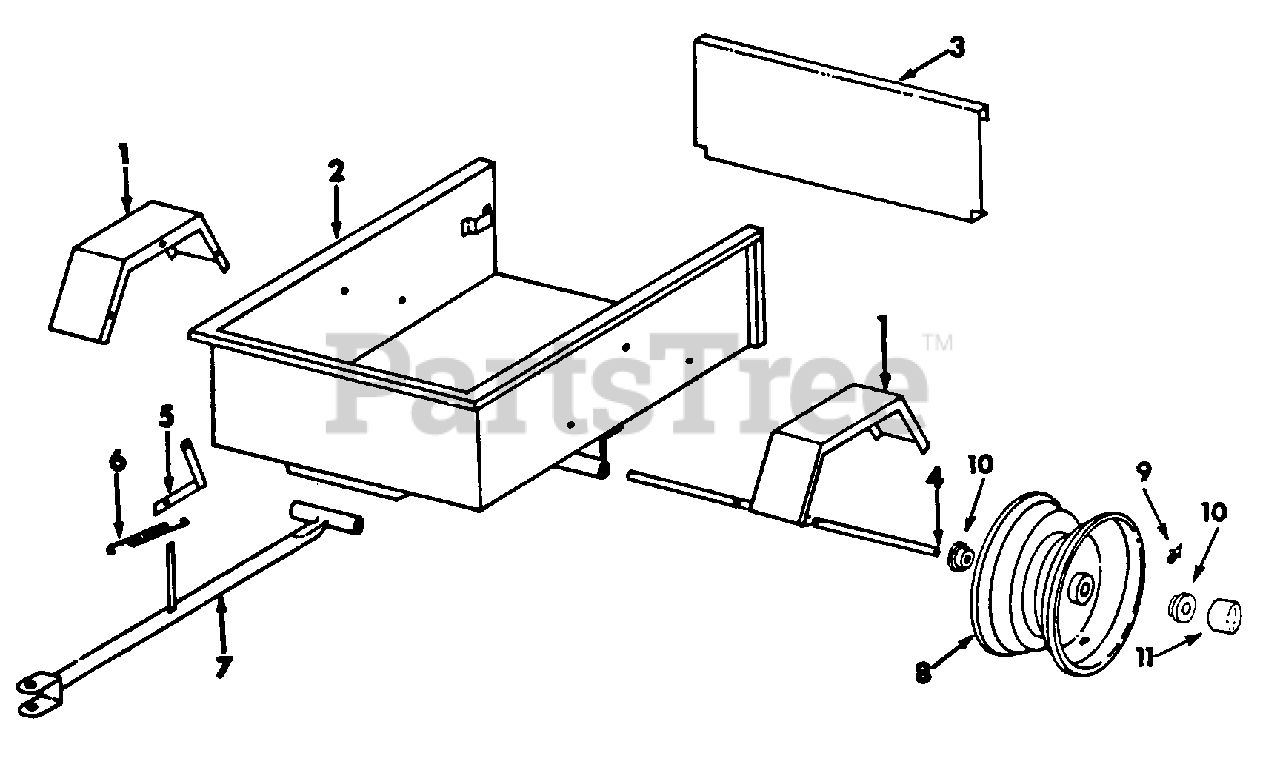

2 Trailer - Axle, Body, Drawbar, Fender, Latch And Wheels Parts Diagram

  • Title

1

Cub Cadet IH-491724-R1

Fenders

$

$

Currently unavailable

Cub Cadet IH-120375

Nut, 1/4-20 C-Z Hex
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180020

Screw, 1/4-20 X 3/4 C-Z Hex-Hd Cap

$

$

Currently unavailable

2

Cub Cadet IH-491721-R1

Body, Trailer

$

$

Currently unavailable

3

Cub Cadet IH-491723-R1

Gate, Rear

$

$

Currently unavailable

4

Cub Cadet IH-491728-R1

Axle

$

$

Currently unavailable

Cub Cadet IH-137263

Pin, 3/16 X 2 C-Z Cot

$

$

Currently unavailable

Cub Cadet IH-131017

Screw, 13/16 X 1-1/2 X .134 C-Z

$

$

Currently unavailable

5

Cub Cadet IH-491726-R1

Latch, Dump

$

$

Currently unavailable

Cub Cadet IH-180020

Screw, 1/4-20 X 3/4 C-Z Hex-Hd Cap

$

$

Currently unavailable

Cub Cadet IH-21222-R1

Nut, 1/4-20 Znp Nylon Insert
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet IH-491727-R1

Spring, Latch Return

$

$

Currently unavailable

7

Cub Cadet IH-491725-R1

Drawbar

$

$

Currently unavailable

Cub Cadet IH-21814-R1

Pin, 1/2 X 3 C-Z Std-Hd

$

$

Currently unavailable

8

Cub Cadet IH-386188-R92

Wheel Assy

Note: -For 4.00/4.80-8 tires

$

$

Not available

Cub Cadet IH-103407

Pin, 3/16 X 1 Cot

$

$

Currently unavailable

9

Cub Cadet IH-110146-R91

Fitting, 1/4-28 Str Lub

$

$

Not available

10

Cub Cadet IH-492027-R1

Bearing
(Superseded to IH-539476-R1)

$18.99

$

Usually ships in 3-6 days

0

11

Cub Cadet IH-492026-R1

Cap, Hub

$

$

Not available

Cub Cadet IH-387841-R91

Valve, TR-413 Tubeless Type
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0
