Trailer 4 - Cub Cadet Trailer (1976 - 1982) Body, Drawbar, Latch And Wheels (Part 1) Parts Diagram

Trailer

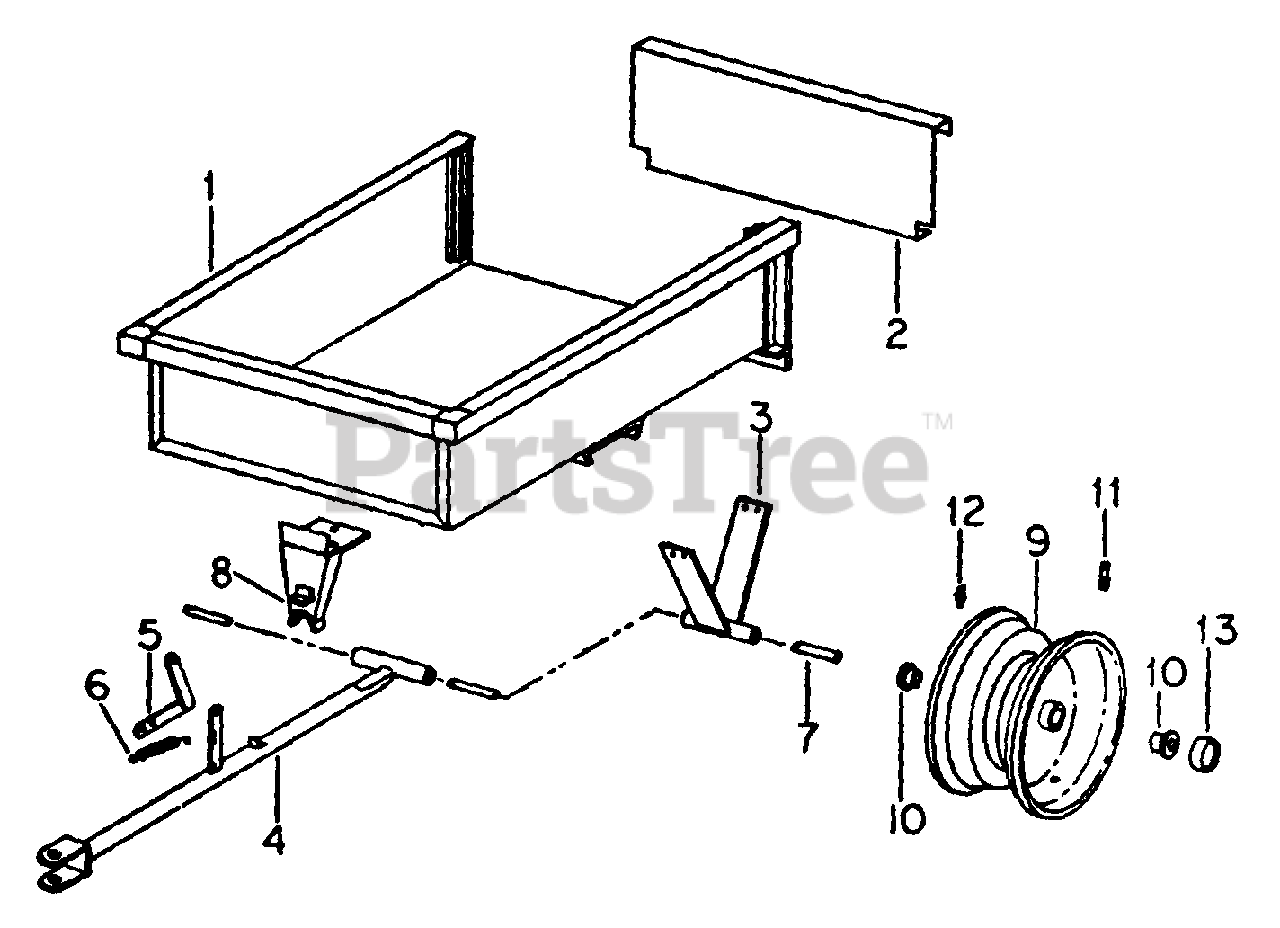

Body, Drawbar, Latch And Wheels (Part 1) Parts Diagram

  • Title

1

Cub Cadet IH-73201-C1

BODY

$

$

Currently unavailable

2

Cub Cadet IH-73202-C1

GATE, TAIL

$

$

Currently unavailable

3

Cub Cadet IH-73203-C1

SUPPORT, AXLE

$

$

Currently unavailable

Cub Cadet IH-80122

SCREW, 3/8-16 X 1 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-38542

WASHER, 3/8 ZND INT-TOOTH LOCK

$

$

Currently unavailable

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet IH-73204-C1

BAR

$

$

Currently unavailable

5

Cub Cadet IH-491726-R1

LATCH DUMP

$

$

Currently unavailable

Cub Cadet IH-180020

SCREW, 1/4-20 X 3/4 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-21222-R1

NUT, 1/4-20 ZND NYLON
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet IH-491727-R1

SPRING, LATCH RETURN

$

$

Currently unavailable

7

Cub Cadet IH-73205-C1

AXLE

$

$

Currently unavailable

Cub Cadet IH-594715-R1

WASHER, 1.031 X .054 ZND

$

$

Currently unavailable

Cub Cadet IH-137204

PIN, 1/8 X 1-1/2 COT

$

$

Currently unavailable

8

Cub Cadet IH-73206-C1

SPACER LATCH

$

$

Currently unavailable

Cub Cadet IH-19944-R1

SCREW 3/8 X 3/4 ZND SLT-TRUSS-HD MACH

$

$

Currently unavailable

Cub Cadet IH-136542

WASHER, 3/8 ZND INT-TOOTH LOCK

$

$

Currently unavailable

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX.
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet IH-73207-C1

WHEEL W/OUT TIRE

$

$

Not available

10

Cub Cadet IH-73208-C1

BEARING

$

$

Not available

11

Cub Cadet IH-387841-R91

VALVE, TR413 TUBELESS TIRE RIM
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet IH-110146-R91

FITTING, 1/4-28 STR LUB

$

$

Not available

13

Cub Cadet IH-492026-R1

CAP, HUB

$

$

Not available
