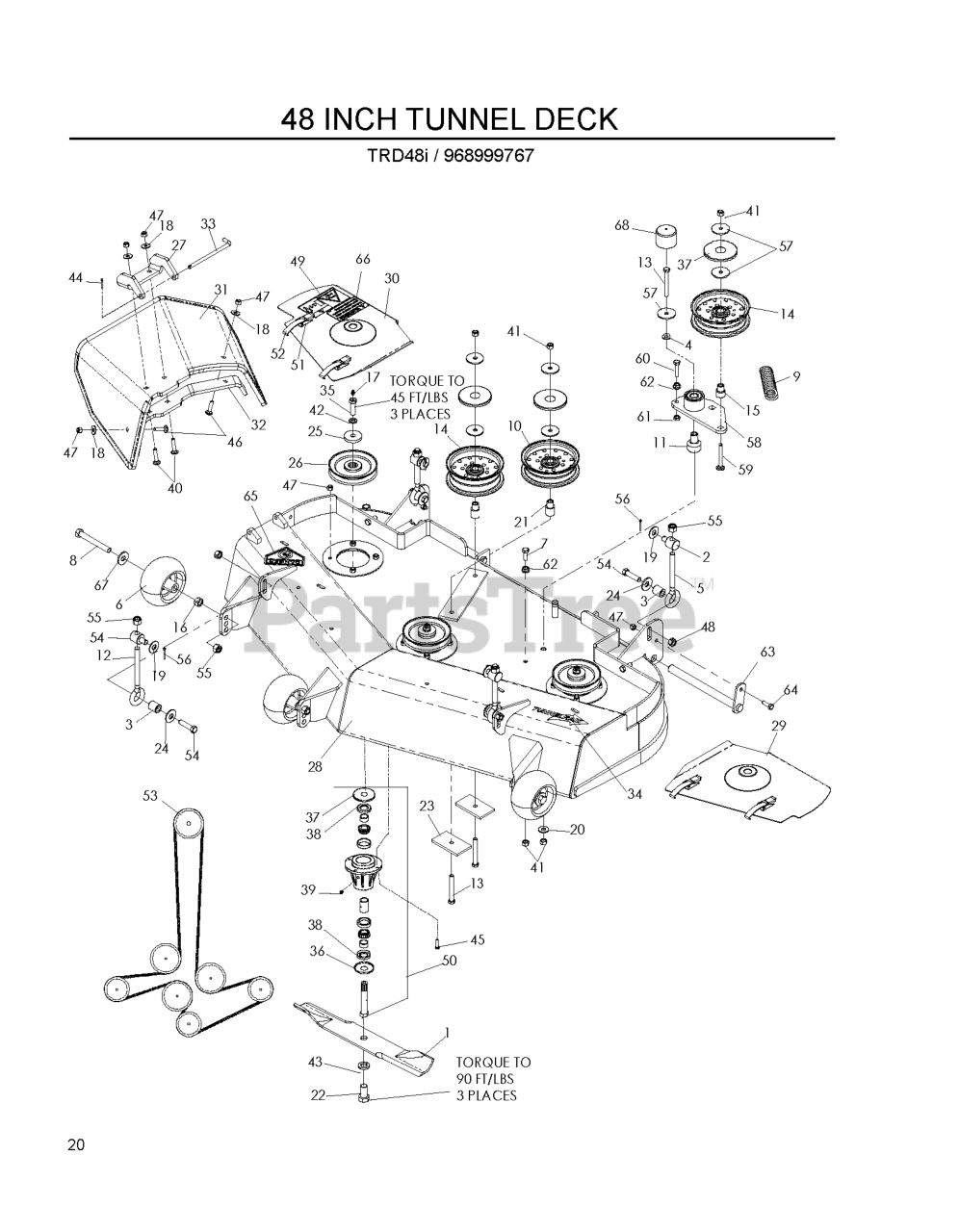

TRD 48 I (968999767) - Husqvarna 48" Mower Deck Assembly (2007-12) MOWER DECK / CUTTING DECK Parts Diagram

48" Mower Deck Assembly

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

50

Husqvarna 539112934

HOUSING ASM, 52/61
(Superseded to 966956101)

$145.99

$

In Stock, Qty 20+

0

22

Husqvarna 539103299

HCS 5/8F X 1 1/4

$7.49

$

In Stock, only 2 left!

0

7

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.49

$

Usually ships in 3-10 days

0

24

Husqvarna 539112484

SPRING WASHER - .50

$9.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539108754

SHAFT SEAL

$4.99

$

In Stock, Qty 15

0

65

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

37

Husqvarna 539108450

TOP DUST CAP

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539108686

48 BELT SHIELD ASM - RH

Note: RIGHT

$218.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539130778

CHUTE, RUBBER DISCHARGE 42/48"

$74.99

$

Usually ships in 3-10 days

0

63

Husqvarna 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0

17

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

68

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 2 left!

0

34

Husqvarna 539111812

DECAL, TUNNEL RAM 6"

$14.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539112141

PULLEY 42-48

$42.99

$

In Stock, Qty 11

0

57

Husqvarna 539111897

WASHER, 3/8 SPEC

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539119227

BOLT, EYE

$18.99

$

In Stock, only 3 left!

0

62

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, Qty 9

0

16

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 15

0

39

Husqvarna 539977326

PLUG-VENTED

$13.99

$

In Stock, only 1 left!

0

9

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

49

Husqvarna 539105746

DECAL, EURO SEVERING

$3.99

$

In Stock, only 3 left!

0

8

Husqvarna 539118862

HHB, 1/2-13X4
(Superseded to 539108366)

$6.49

$

In Stock, Qty 20+

0

2

Husqvarna 539114405

SWIVEL

$

$

Not available

21

Husqvarna 539103295

IDLER BUSHING

$9.99

$

In Stock, Qty 17

0

30

Husqvarna 539108687

48 BELT SHIELD ASM - LH

Note: LEFT

$133.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539130925

BRACKET, REINF-CHUTE

$170.99

$

In Stock, only 1 left!

0

55

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539112120

HCS 7/16-20 GD 8 SPEC

$30.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539110740

RIVET, BLIND, 5/32 DIA

$

$

Not available

36

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 17

0

18

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

60

Husqvarna 539107042

HCS 3/8-16 X 1-1/2

$3.99

$

In Stock, Qty 6

0

25

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

15

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, Qty 8

0

67

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

61

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539109660

DRAW LATCH

$14.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539114404

SPACER

$

$

Not available

43

Husqvarna 539990333

LOCKWASHER 5/8

$1.49

$

In Stock, Qty 6

0

20

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539100340

BLADE OEM 16 1/4"

$15.99

$

In Stock, Qty 12

0

19

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

66

Husqvarna 539113224

DECAL, CAUTION

$9.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539109246

PIN COTTER 1/8 X 1 ZD

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

44

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

64

Husqvarna 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 539111376

DECK W/DECALS 48" HUS

$

$

Not available

27

Husqvarna 539130923

PIVOT BRACKET - RUBBER CHUTE

$39.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539114698

EYEBOLT, 1/2-13 X 5.88

$27.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 10

0

46

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

54

Husqvarna 539108073

HCS 7/16 - 14 X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

11

Husqvarna 539130205

PIVOT, BEARING

$4.99

$

In Stock, Qty 5

0

6

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

58

Husqvarna 539130391

ARM-IDLER W/BRG

$

$

Not available

10

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, Qty 7

0

33

Husqvarna 539131813

PIN, CHUTE PIVOT

$

$

Not available

53

Husqvarna 539111949

BELT, DECK 48"

$

$

Not available

13

Husqvarna 539101341

HCS 3/8C X 3

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available
