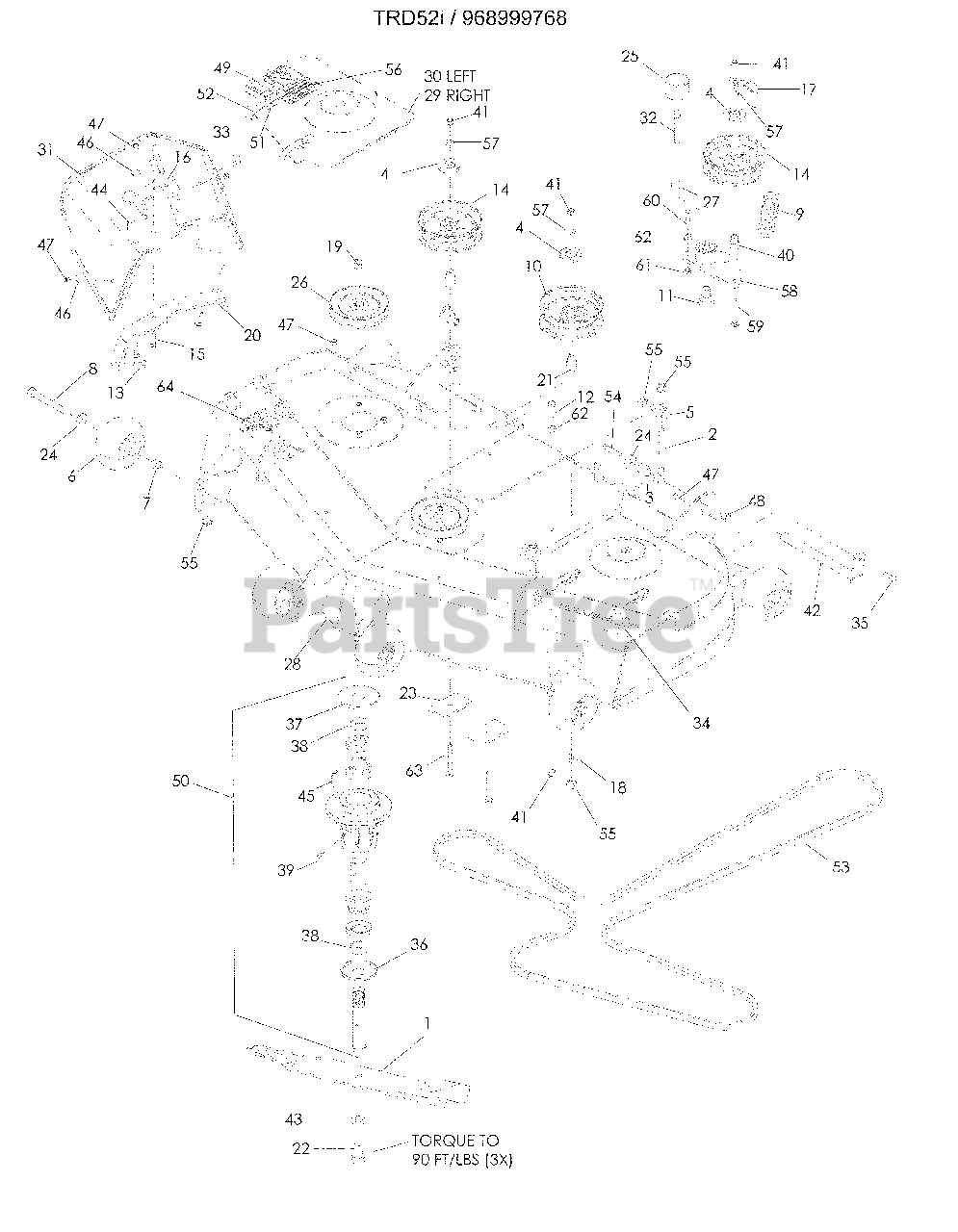

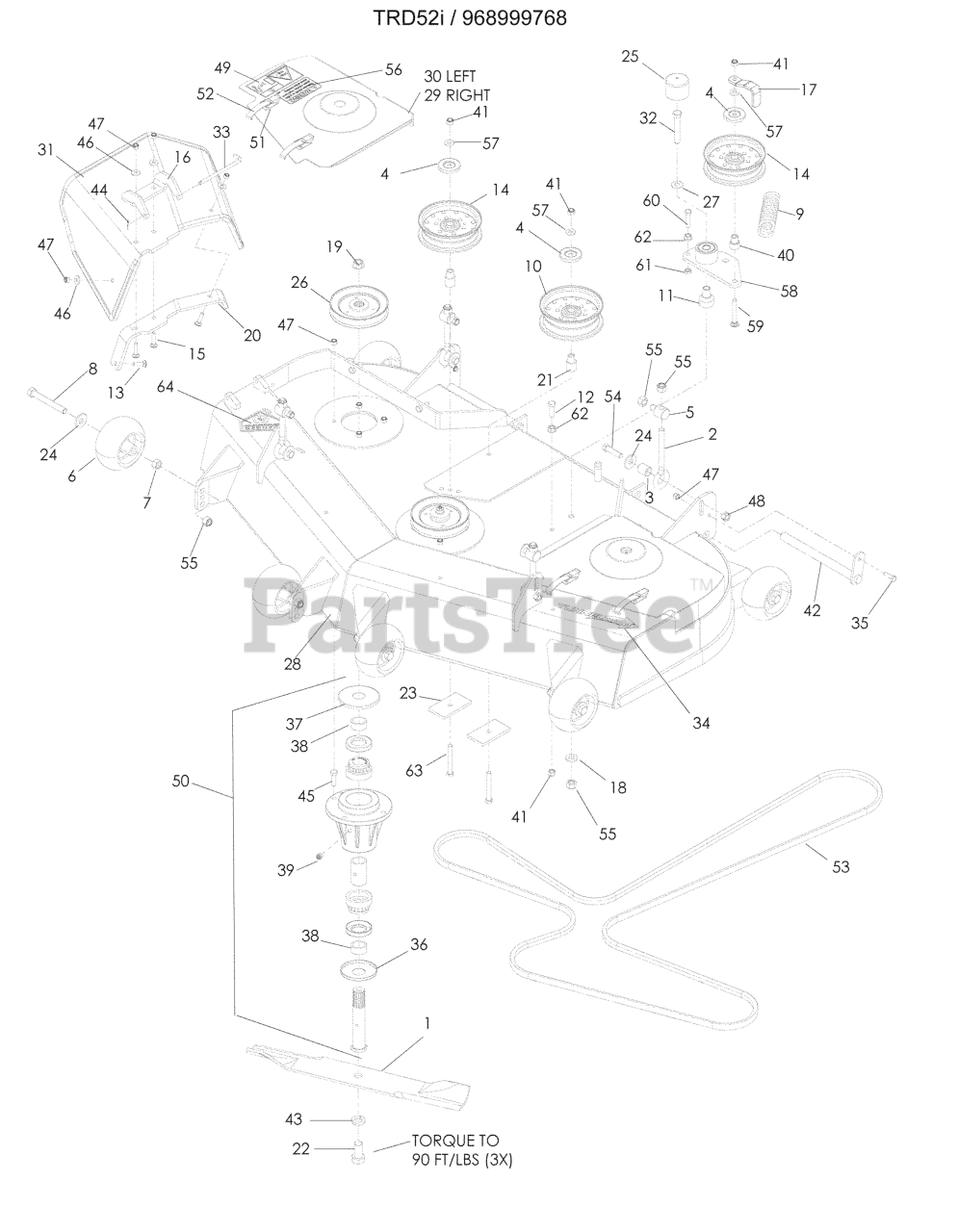

TRD 52 I (968999768) - Husqvarna 52" Mower Deck Assembly (2009-03) 52 Inch Tunnel Deck Parts Diagram

52" Mower Deck Assembly

52 Inch Tunnel Deck Parts Diagram

  • Title

1

Husqvarna 539100341

BLADE, 18"

$

$

Not available

2

Husqvarna 539119227

EYE BOLT

$18.99

$

In Stock, only 3 left!

0

3

Husqvarna 539114404

SPACER

$

$

Not available

4

Husqvarna 510254501

SHIELD, DUST

$

$

Not available

5

Husqvarna 505256501

SWIVEL

$18.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539107610

ROLLER, ANTI SCALP
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

7

Husqvarna 539990258

NUT ½- 13

$4.99

$

In Stock, Qty 15

0

8

Husqvarna 539108366

HCS ½-13 x 4

$6.49

$

In Stock, Qty 20+

0

9

Husqvarna 539130690

SPRING

$12.99

$

Usually ships in 3-10 days

0

10

Husqvarna 521966601

PULLEY, IDLER

$72.99

$

Usually ships in 3-10 days

0

11

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

12

Husqvarna 539976941

HCS 3/8- 16 x 1¼

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 539100472

RHSNB 5/16-18 x 1¼

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539103257

PULLEY, IDLER

$74.99

$

In Stock, Qty 9

0

15

Husqvarna 539102933

RHSNB 5/16-18 x 1½

$

$

Not available

16

Husqvarna 539130923

BRACKET, RUBBER CHUTE

$39.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539114981

GUIDE, BELT

$

$

Not available

18

Husqvarna 539102243

SUPPORT, WASHER

$

$

Not available

19

Husqvarna 539130653

NUT ¾-16 FLANGE

$7.49

$

In Stock, only 1 left!

0

20

Husqvarna 539130925

REINFORCEMENT, BRCKET

$170.99

$

In Stock, only 1 left!

0

21

Husqvarna 539103295

BUSHING, IDLER

$9.99

$

In Stock, Qty 17

0

22

Husqvarna 539103299

HCS 5/8-18 x 1¼

$7.49

$

In Stock, only 2 left!

0

23

Husqvarna 539103303

PAD
(Superseded to 539106504)

$

$

Not available

24

Husqvarna 539109554

WASHER ½

$

$

Not available

25

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 2 left!

0

26

Husqvarna 539112124

PULLEY

$44.99

$

In Stock, Qty 7

0

27

Husqvarna 539115528

WASHER ½ BELLEVILLE

$3.99

$

In Stock, only 3 left!

0

28

Husqvarna 539111377

DECK w/ DECALS

$

$

Not available

29

Husqvarna 539109652

BELT SHIELD, RIGHT

$339.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539109653

BELT SHIELD, LEFT

$303.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539130779

DISCHARGE CHUTE

$68.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539103433

HCS ½-13 x 3¼

$4.99

$

In Stock, Qty 10

0

33

Husqvarna 539131813

PIN, CHUTE PIVOT

$

$

Not available

34

Husqvarna 539111561

DECAL, TUNNEL RAM

$8.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990209

HCS 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0

36

Husqvarna 539108449

DUST CAP, BOTTOM

$4.99

$

In Stock, Qty 17

0

37

Husqvarna 539108450

DUST CAP, TOP

$4.99

$

In Stock, only 1 left!

0

38

Husqvarna 539108754

SHAFT SEAL

$4.99

$

In Stock, Qty 15

0

39

Husqvarna 539977326

GREASE POPPET

$13.99

$

In Stock, only 1 left!

0

40

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, Qty 8

0

41

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0

43

Husqvarna 539990333

LOCKWASHER 5/8

$1.49

$

In Stock, Qty 6

0

44

Husqvarna 539990365

PIN COTTER, 1/8 x ¾
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

45

Husqvarna 539990627

HCS 5/16-18 x 1¼

$4.99

$

In Stock, Qty 10

0

46

Husqvarna 539990692

WASHER 5/16
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

47

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 539990839

NUT 7/16-14 CNTRLK, GR A

$3.99

$

In Stock, only 3 left!

0

49

Husqvarna 539105746

DECAL, SEVERING

$3.99

$

In Stock, only 3 left!

0

50

Husqvarna 539131383

SPINDLE ASSEMBLY
(Superseded to 966956101)

$145.99

$

In Stock, Qty 20+

0

51

Husqvarna 539110740

POP RIVET

$

$

Not available

52

Husqvarna 539109660

DRAW LATCH

$14.99

$

Usually ships in 3-10 days

0

53

Husqvarna 510201201

DECK BELT

$

$

Not available

54

Husqvarna 539108073

HCS 7/16-14 x 1¾

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539101331

NUT ½-13 NYLOC
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

56

Husqvarna 539113224

DECAL, WARNING

$9.99

$

Usually ships in 3-10 days

0

57

Husqvarna 522023401

WASHER 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

58

Husqvarna 539130391

ARM w/ BEARINGS, IDLER

$

$

Not available

59

Husqvarna 539130235

RHSNB 3/8-16 x 2¾

$3.99

$

Usually ships in 3-10 days

0

60

Husqvarna 539107042

HCS 3/8-16 x 1½ GR8

$3.99

$

In Stock, Qty 6

0

61

Husqvarna 539109332

NUT 3/8-16 JAM
(Superseded to 596433501)

$3.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539990613

NUT 3/8-16 WHIZLK

$3.99

$

Usually ships in 3-10 days

0

63

Husqvarna 539101341

HCS 3/8-16 x 3

$4.99

$

In Stock, Qty 20+

0

64

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0
