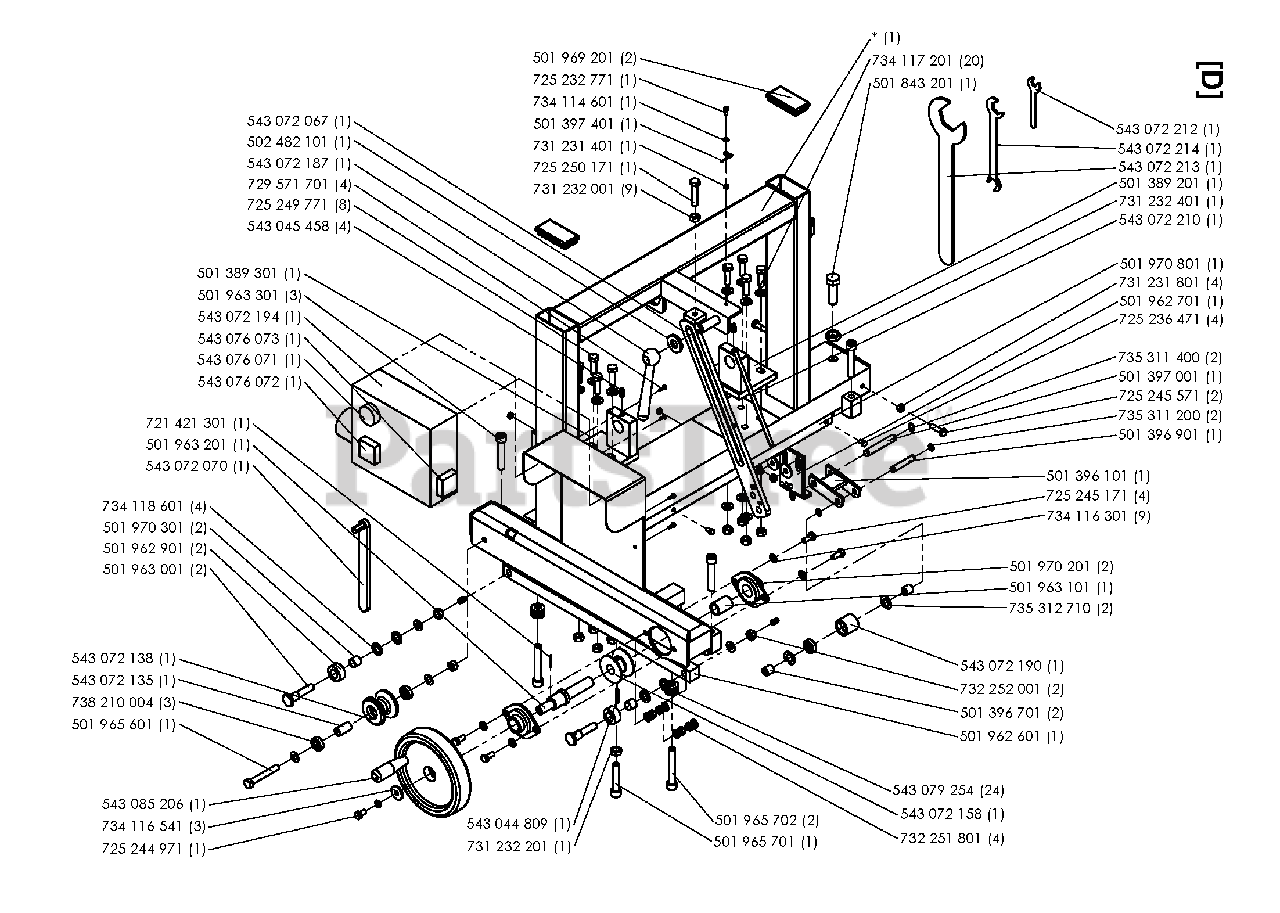

TS 1000 F - Husqvarna Tile Saw (2008-03) FRAME Parts Diagram

Tile Saw

FRAME Parts Diagram

  • Title

501 389 201

Husqvarna Construction 501 38 92-01

PLATE

$

$

Not available

501 389 301

Husqvarna Construction 501 38 93-01

PLATE

$

$

Not available

501 396 101

Husqvarna 501 39 61-01

STIRRUP

$

$

Not available

501 396 701

Husqvarna 501 39 67-01

SPACER

$

$

Not available

501 39 70-01

Husqvarna 501 39 69-01

PIVOT58 x 10 mm

$

$

Not available

501396901

Husqvarna 501 39 70-01

SHAFT PIVOT75 x 12 mm

$

$

Not available

501 397 401

Husqvarna Construction 501 39 74-01

DEPTH GAUGE

$

$

Not available

501 843 201

Husqvarna Construction 501 84 32-01

SCREW

$

$

Not available

501 962 601

Husqvarna 501 96 26-01

ARM

$

$

Not available

501 962 701

Husqvarna Construction 501 96 27-01

PLATE

$

$

Not available

501 962 901

Husqvarna Construction 501 96 29-01

ROLLER

$

$

Not available

501 963 001

Husqvarna 501 96 30-01

SHAFT PIVOT

$

$

Not available

501 963 101

Husqvarna 501 96 31-01

SPACER RING

$

$

Not available

501 963 201

Husqvarna 501 96 32-01

SHAFT

$

$

Not available

501 963 301

Husqvarna 501 96 33-01

SCREW

$

$

Not available

501 965 601

Husqvarna 501 96 56-01

SCREW

$

$

Not available

501 965 701

Husqvarna 501 96 57-01

SCREW

$

$

Not available

501 965 702

Husqvarna 501 96 57-02

SCREW

$

$

Not available

501 969 201

Husqvarna Construction 501 96 92-01

PLUG

$

$

Not available

501 970 201

Husqvarna 501 97 02-01

BEARING

$

$

Not available

501 970 301

Husqvarna 501 97 03-01

BEARING

$

$

Not available

501 970 801

Husqvarna Construction 501 97 08-01

SUPPORT

$

$

Not available

502 482 101

Husqvarna Construction 502 48 21-01

WASHER

$

$

Not available

543 044 809

Husqvarna Construction 543 04 48-09

GOUPILLE ELASTIQUE 5X30/

$

$

Not available

543 045 458

Husqvarna Construction 543 04 54-58

LUBRICATION NIPPLE

$2.33

$

Usually ships in 3-10 days

0

543 072 067

Husqvarna Construction 543 07 20-67

ZUGSTANGE

$

$

Not available

543 072 070

Husqvarna Construction 543 07 20-70

SPANNER

$

$

Not available

543 072 135

Husqvarna Construction 543 07 21-35

DRIVING ROLLERREP/37

$

$

Not available

543 072 138

Husqvarna Construction 543 07 21-38

DRIVING ROLLERREP/40

$

$

Not available

543 072 158

Husqvarna Construction 543 07 21-58

PEN

$

$

Not available

543 072 187

Husqvarna Construction 543 07 21-87

HEAD BLOCKING LEVERREP/131

$

$

Not available

543 072 190

Husqvarna Construction 543 07 21-90

BRACE ROLLER LEFTREP/133

$

$

Not available

543 072 194

Husqvarna Construction 543 07 21-94

CONTACT

$

$

Not available

543 072 210

Husqvarna Construction 543 07 22-10

TIEFENMASSSTAB

$

$

Not available

543 072 212

Husqvarna Construction 543 07 22-12

SPANNER

$

$

Not available

543 072 213

Husqvarna Construction 543 07 22-13

SPANNER

$

$

Not available

543 072 214

Husqvarna Construction 543 07 22-14

SPANNER

$

$

Not available

543 076 071

Husqvarna Construction 543 07 60-71

SCHALTER EIN/AUS

$

$

Not available

543 076 072

Husqvarna Construction 543 07 60-72

STERNDREIECKSCHALTER

$

$

Not available

543 076 073

Husqvarna Construction 543 07 60-73

STAR TRIANGLE SWITCH

$

$

Not available

543 079 254

Husqvarna Construction 543 07 92-54

SPRING WASHER M12 DIN127

$

$

Not available

543 085 206

Husqvarna Construction 543 08 52-06

STEERING WHEEL

$

$

Not available

721 421 301

Husqvarna 721 42 13-01

SPRING PIN

$

$

Not available

725 232 771

Husqvarna 725 23 27-71

SCREW EHHM
(Superseded to 503200003)

$6.49

$

Usually ships in 3-10 days

0

725 236 471

Husqvarna 725 23 64-71

SCREW EHHM
(Superseded to 725236451)

$2.49

$

Usually ships in 3-10 days

0

725 244 971

Husqvarna 725 24 49-71

SCREW EHHM
(Superseded to 725244951)

$4.99

$

In Stock, only 2 left!

0

725 245 171

Husqvarna Construction 725 24 51-71

SCREW EHHM

$2.49

$

In Stock, Qty 5

0

725 245 571

Husqvarna 725 24 55-71

SCREW EHHM

$5.99

$

In Stock, Qty 10

0

725 249 771

Husqvarna Construction 725 24 97-71

SCREW EHHM

$3.49

$

In Stock, only 1 left!

0

725 250 171

Husqvarna 725 25 01-71

SCREW EHHM

$

$

Not available

729 571 701

Husqvarna Construction 729 57 17-01

SCREW CRPANT

$

$

Not available

731 231 401

Husqvarna 731 23 14-01

HEXAGON NUT

$2.49

$

In Stock, Qty 20+

0

731 231 801

Husqvarna 731 23 18-01

HEXAGON NUT
(Superseded to 695008078)

$

$

Not available

731 232 001

Husqvarna Construction 731 23 20-01

HEXAGON NUT

$6.49

$

In Stock, Qty 13

0

731 232 201

Husqvarna 731 23 22-01

HEXAGON NUT

$

$

Not available

731 232 401

Husqvarna Construction 731 23 24-01

HEXAGON NUT

$

$

Not available

732 251 801

Husqvarna 732 25 18-01

HEXAGON LOCKING NUT
(Superseded to 732211801)

$5.99

$

In Stock, Qty 13

0

732 252 001

Husqvarna 732 25 20-01

HEXAGON LOCKING NUT

$6.99

$

Usually ships in 3-10 days

0

734 114 601

Husqvarna 734 11 46-01

WASHER
(Superseded to 819070816)

$5.99

$

In Stock, Qty 5

0

734 116 301

Husqvarna 734 11 63-01

WASHER
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

734 116 541

Husqvarna 734 11 65-41

WASHER

$5.99

$

Usually ships in 3-10 days

0

734 117 201

Husqvarna 734 11 72-01

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

734 118 601

Husqvarna 734 11 86-01

WASHER

$

$

Not available

735 311 200

Husqvarna 735 31 12-00

CIRCLIP

$4.99

$

In Stock, Qty 8

0

735 311 400

Husqvarna 735 31 14-00

CIRCLIP

$6.49

$

In Stock, only 1 left!

0

735 312 710

Husqvarna 735 31 27-10

CIRCLIP

$5.99

$

In Stock, only 1 left!

0

738 210 004

Husqvarna 738 21 00-04

BALL BEARING

$62.99

$

In Stock, only 1 left!

0
