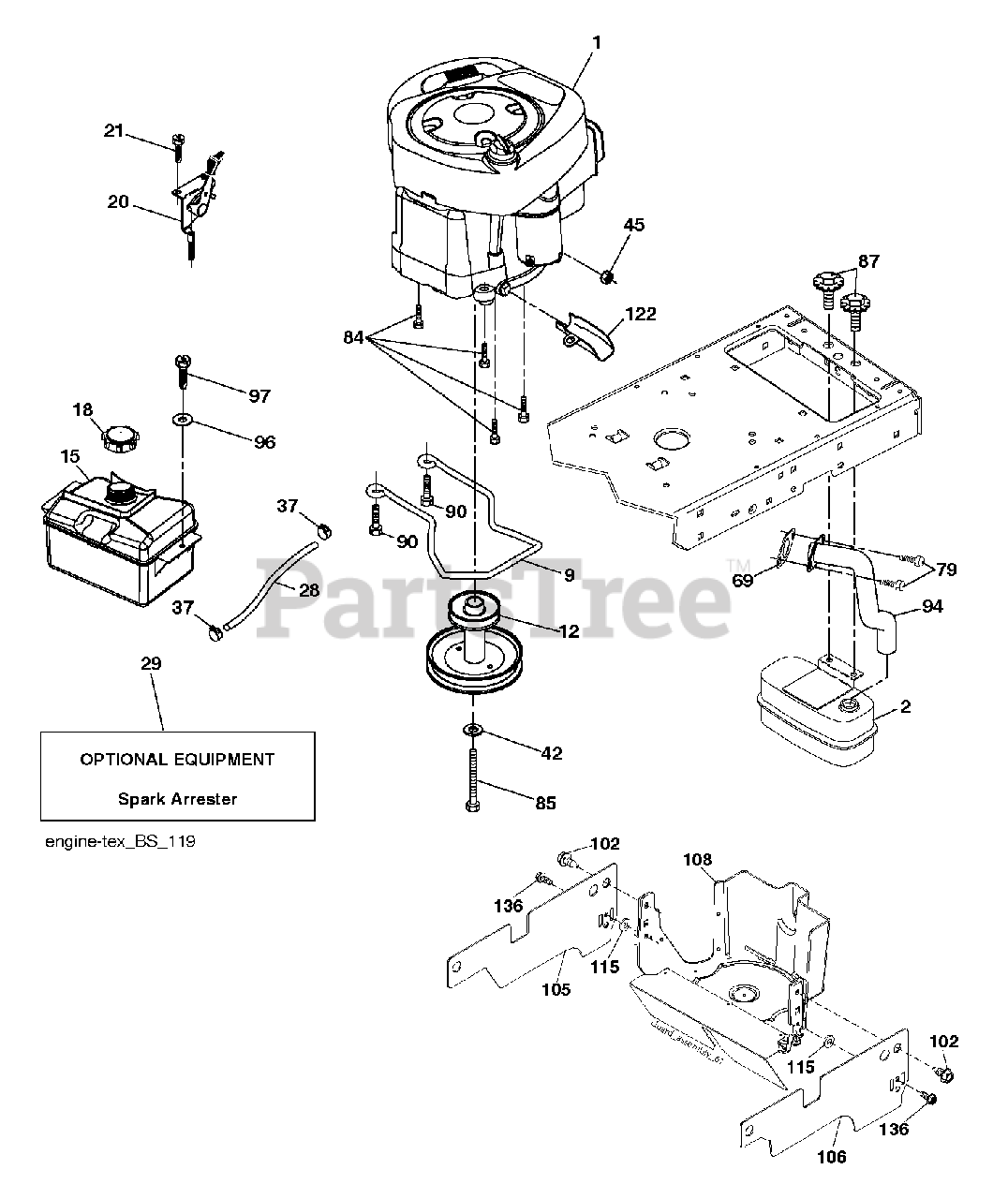

TS 138 (960410367-02) - Husqvarna 38" Garden Tractor (2017-04) ENGINE Parts Diagram

38" Garden Tractor

ENGINE Parts Diagram

  • Title

1

000000000

Note: ENGINE B S MODEL 31R577-0027-B1 (587333501)

$

$

Not available

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$51.99

$

In Stock, Qty 8

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$13.99

$

In Stock, only 3 left!

0

12

Husqvarna 586478501

ENGINE.PULLEY

$34.99

$

In Stock, only 1 left!

0

15

Husqvarna 532407545

RP TANK FUEL FRT 1.5 GAL
(Superseded to 581289901)

$62.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

20

Husqvarna 587242601

THROTTLE.COBRA.21".RSTART.BLK
(Superseded to 587242604)

$26.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$13.99

$

In Stock, Qty 10

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

42

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.49

$

In Stock, Qty 17

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

69

Husqvarna 532185909

GASKET.EXHAUST.KOHLER

$4.99

$

In Stock, Qty 20+

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

84

Husqvarna 817060620

SCREW.3/8-16

$6.99

$

In Stock, Qty 9

0

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$3.49

$

In Stock, Qty 14

0

87

Husqvarna 532171877

BOLT, 5/16-18 X 1 3/4

$5.99

$

In Stock, only 2 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

94

Husqvarna 581880901

EXHAUST.TUBE.B&S.28/31

$26.99

$

In Stock, only 2 left!

0

96

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 11

0

105

Husqvarna 501267202

SHIELD.SIDE.LH.3842"TEX FRN.BK

$17.99

$

Usually ships in 3-10 days

0

106

Husqvarna 501268202

SHIELD.SIDE.LH.3842"TEX FRN.BK

$13.99

$

Usually ships in 3-10 days

0

108

Husqvarna 587179501

COVER.PULLEY.ENG.WSHL
(Superseded to 587179509)

$85.99

$

Usually ships in 3-10 days

0

115

Husqvarna 532431761

RETAINER

$4.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532421922

EXTENSION DRAIN OIL

$31.99

$

In Stock, Qty 8

0

136

Husqvarna 532421756

SCREW.#10 X 0.500
(Superseded to 596434001)

$3.49

$

Usually ships in 3-10 days

0
