TS 138 (960410421-00) - Husqvarna 38" Garden Tractor (2018-04) ENGINE 2 Parts Diagram

38" Garden Tractor

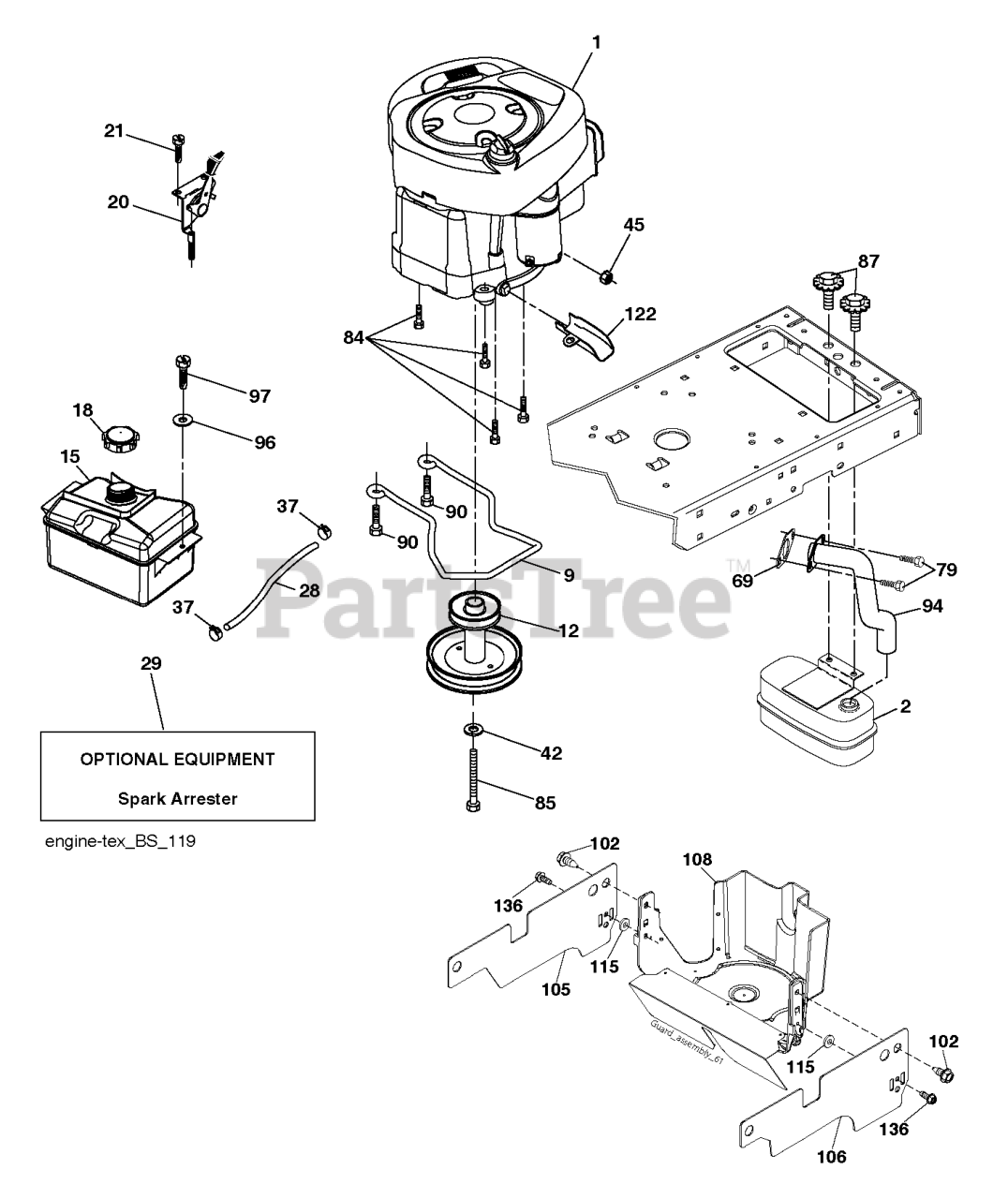

ENGINE 2 Parts Diagram

  • Title

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$14.99

$

Usually ships in 3-10 days

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 9

0

105

Husqvarna 501267202

SHIELD.SIDE.LH.3842"TEX FRN.BK

$17.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$53.99

$

In Stock, Qty 20+

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, only 2 left!

0

106

Husqvarna 501268202

SHIELD.SIDE.LH.3842"TEX FRN.BK

$14.99

$

Usually ships in 3-10 days

0

108

Husqvarna 587179509

COVER ENGINE PULLEY COVER WITH

$89.99

$

Usually ships in 3-10 days

0

45

Husqvarna 596133601

Hardware

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 587242601

THROTTLE.COBRA.21".RSTART.BLK
(Superseded to 587242604)

$27.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532421922

EXTENSION DRAIN OIL

$31.99

$

In Stock, Qty 6

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

136

Husqvarna 596434001

Screws

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 586478501

ENGINE.PULLEY

$35.99

$

In Stock, only 2 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, Qty 10

0

115

Husqvarna 532431761

RETAINER

$4.99

$

Usually ships in 3-10 days

0

1

000000000

Note: Engine B&S Model No. 31R577-0027-B5 (597359601)

$

$

Not available

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$3.99

$

In Stock, only 2 left!

0

15

Husqvarna 581289901

FUEL.TANK.ASM.NON-EPA

$62.99

$

In Stock, Qty 6

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

96

Husqvarna 596135301

Washers

$3.99

$

In Stock, Qty 6

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$14.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

94

Husqvarna 581880901

EXHAUST.TUBE.B&S.28/31

$27.99

$

Usually ships in 3-10 days

0

79

Husqvarna 596134201

Screws

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$14.99

$

In Stock, Qty 10

0
