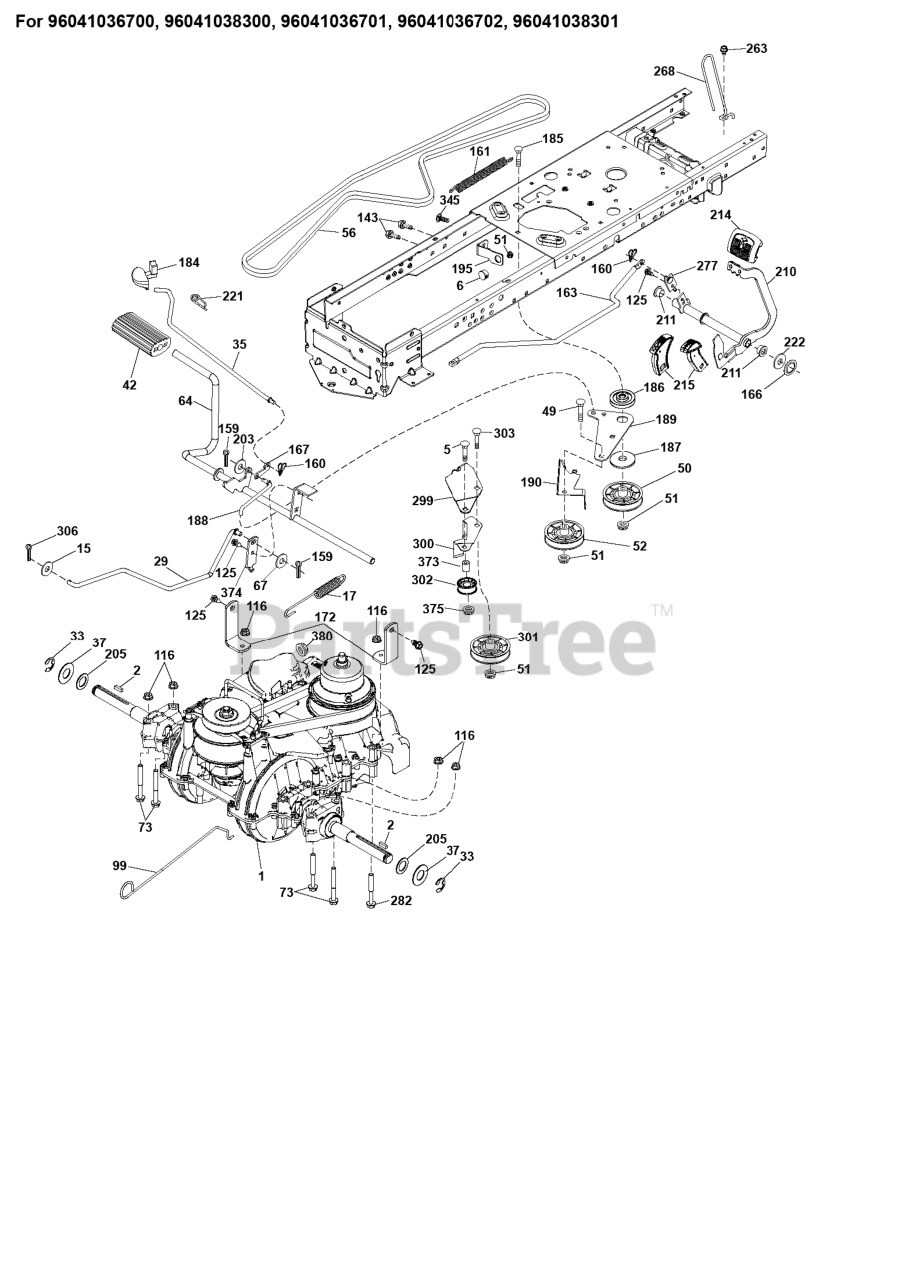

TS 138 - Husqvarna 38" Garden Tractor (Original) DRIVE 2 Parts Diagram

38" Garden Tractor

DRIVE 2 Parts Diagram

  • Title

56

Husqvarna 532197253

BELT.DRIVE.MOWER.TEX.42"
(Superseded to 592855001)

Note: For 96041036701, 96041038301

$41.99

$

In Stock, Qty 20+

0

172

Husqvarna 583974201

STRAP.TORQUE.VARIATOR

$3.99

$

Usually ships in 3-10 days

0

211

Husqvarna 532120183

BEARING.NYLON

$7.49

$

In Stock, only 4 left!

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.
(Superseded to 531169001)

$8.49

$

Usually ships in 3-10 days

0

56

Husqvarna 592855001

Belts

Note: For 96041038300, 96041038301

$41.99

$

In Stock, Qty 20+

0

184

Husqvarna 532411484

HANDLE.PARKNG BRK.PRED.LT.428

$31.99

$

Usually ships in 3-10 days

0

35

Husqvarna 596874801

Rods

$14.99

$

Usually ships in 3-10 days

0

49

Husqvarna 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, Qty 20+

0

185

Husqvarna 872110622

BOLT

$4.99

$

In Stock, Qty 13

0

222

Husqvarna 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$4.99

$

In Stock, Qty 6

0

268

Husqvarna 596887801

Mufflers

Note: For 96041036700, 9604106701, 96041036702

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 501487101

SPRING.BRAKE.VARIATOR

$8.49

$

In Stock, Qty 9

0

29

Husqvarna 584823101

BRAKE.VARIATOR.SD3
(Superseded to 584823102)

$23.99

$

Usually ships in 3-10 days

0

56

Husqvarna 581603801

BELT.V.EURO.VARIATOR

Note: For 96041036700, 96041036701, 96041036702

$74.99

$

Usually ships in 3-10 days

0

163

Husqvarna 587847902

ROD.CONTROL.PEDAL.VARIATOR
(Superseded to 583971301)

Note: For 96041036700, 96041036701, 96041036702

$35.99

$

In Stock, only 1 left!

0

161

Husqvarna 532105709

SPRING, RETURN LT

$14.99

$

In Stock, Qty 20+

0

163

Husqvarna 587847901

ROD.CONTROL.PEDAL.VARIATOR
(Superseded to 583971301)

$35.99

$

In Stock, only 1 left!

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING
(Superseded to 531152901)

$3.99

$

In Stock, Qty 13

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$21.99

$

In Stock, Qty 20+

0

215

Husqvarna 532448254

CAP.PEDAL.REVERSE.VARIATOR

Note: For 96041036700

$6.99

$

In Stock, only 1 left!

0

380

Husqvarna 584287701

NUT.PUSH.8MM

Note: For 96041036700

$3.49

$

In Stock, Qty 20+

0

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$6.99

$

In Stock, Qty 18

0

64

Husqvarna 589671401

SHAFT VARIATOR PEDAL CROSS

$27.99

$

Usually ships in 3-10 days

0

306

Husqvarna 876020416

PIN COTTER
(Superseded to 596029601)

$2.49

$

Usually ships in 3-10 days

0

374

Husqvarna 581475201

ARM.CONTROL.BRAKE

$2.49

$

Usually ships in 3-10 days

0

5

Husqvarna 874760636

BOLT

$5.99

$

Usually ships in 3-10 days

0

186

Husqvarna 532194321

SPACER.RETAINER

$9.99

$

In Stock, Qty 20+

0

1

Husqvarna 590277501

TRANSAXLE.VARIATOR.PEDAL.SD

Note: For 96041038300, 96041036700, 96041036701, 96041036702, 96041038301. Transaxle, Variator SD Pedal (590277501) Order parts from transaxle manufacturer.

$989.99

$

Usually ships in 3-10 days

0

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

302

Husqvarna 581420501

PULLEY.IDLER.FLAT.2"

$28.99

$

In Stock, Qty 20+

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

Usually ships in 3-10 days

0

282

Husqvarna 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$5.99

$

In Stock, only 2 left!

0

345

Husqvarna 872110606

BOLT
(Superseded to 596136001)

$4.99

$

Usually ships in 3-10 days

0

210

Husqvarna 588921001

PEDAL.ASM.ROCKET.VARIATOR.LT
(Superseded to 588921002)

Note: For 96041036700, 96041038300, 96041036701, 96041036702

$51.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

195

Husqvarna 581504601

BRACKET.BRAKE.BRAKE.VAR.SD

$2.49

$

Usually ships in 3-10 days

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

277

Husqvarna 532448500

SUBASM.LINK.ROCKER.PEDAL

$9.99

$

Usually ships in 3-10 days

0

67

Husqvarna 582580101

WASHER.NYLON;13/32X13/16X.109

$5.99

$

Usually ships in 3-10 days

0

160

Husqvarna 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 3 left!

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$4.99

$

In Stock, Qty 15

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

37

Husqvarna 532188967

WASHER.HARDENED

$2.49

$

In Stock, Qty 20+

0

214

Husqvarna 532421263

PEDAL.FORWARD.PAD.TEX

$7.99

$

In Stock, Qty 7

0

373

Husqvarna 581461801

SPACER.IDLER

$4.99

$

In Stock, Qty 12

0

6

Husqvarna 532124028

BUSHING.SNAP.NYL.BLK.

$5.99

$

In Stock, only 1 left!

0

99

Husqvarna 532435935

ROD.BYPASS.VARIATOR.GEN2

$5.99

$

In Stock, Qty 10

0

300

Husqvarna 532415681

KEEPER.IDLERS.REAR.VARIATOR
(Superseded to 531153901)

$4.99

$

In Stock, Qty 6

0

203

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 812000001

E-RING LT

$3.99

$

In Stock, Qty 20+

0

380

Husqvarna 582478601

NUT.FLG.NYLOCK.1/4-20.GR.G.ZY
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

303

Husqvarna 872110618

BOLT CARRIAGE

$5.99

$

In Stock, Qty 13

0

375

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

Usually ships in 3-10 days

0

160

Husqvarna 587225301

PIN COTTER;LOCKING;BOWTIE;1IN

$3.49

$

In Stock, Qty 11

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 510089501)

$6.99

$

In Stock, only 2 left!

0

380

Husqvarna 582478602

NUT FLG, NYLOCK, 1/4-20 GR G C

$2.49

$

In Stock, Qty 20+

0

210

Husqvarna 588921002

WELDMENT.PEDAL.VARIATOR.X431

$51.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532401031

ROD.CNTRL.PARK.PREDATOR.LT.TEX
(Superseded to 596874801)

$14.99

$

Usually ships in 3-10 days

0

215

Husqvarna 591100101

PEDAL.REVERSE.VARIATOR.MS428

Note: For 96041038300, 96041036701, 96041036702, 96041038301

$

$

Not available

299

Husqvarna 532415683

BRACKET.MOUNT.IDLERS

$9.99

$

In Stock, only 2 left!

0

301

Husqvarna 532415680

PULLEY.IDLER.V-GROOVE

$29.99

$

In Stock, Qty 20+

0

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 20+

0

188

Husqvarna 582217001

LINK.CLUTCH.GROUND DRIVE.LONG
(Superseded to 532194323)

$5.99

$

In Stock, Qty 10

0

166

Husqvarna 532429164

NUT.PUSH.625

$4.99

$

In Stock, Qty 15

0

73

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5
(Superseded to 595316601)

$4.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$23.99

$

In Stock, Qty 20+

0

263

Husqvarna 817000612

SCREW, 3/8-16X3/4

Note: For 96041036700, 96041036701, 96041036702

$4.99

$

In Stock, Qty 20+

0

268

Husqvarna 532182402

GUARD MUFFLER
(Superseded to 583122001)

Note: For 96041036700, 96041036701, 96041036702

$7.49

$

Usually ships in 3-10 days

0

56

Husqvarna 592855201

Belts

Note: For 96041042100, 96041042900, 96041045400, 96041041700

$29.99

$

In Stock, Qty 20+

0

143

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

11

000000000

Note: For 96041036700. TRANSAXLE VARIATOR SD PEDAL (580486201).

$

$

Not available
