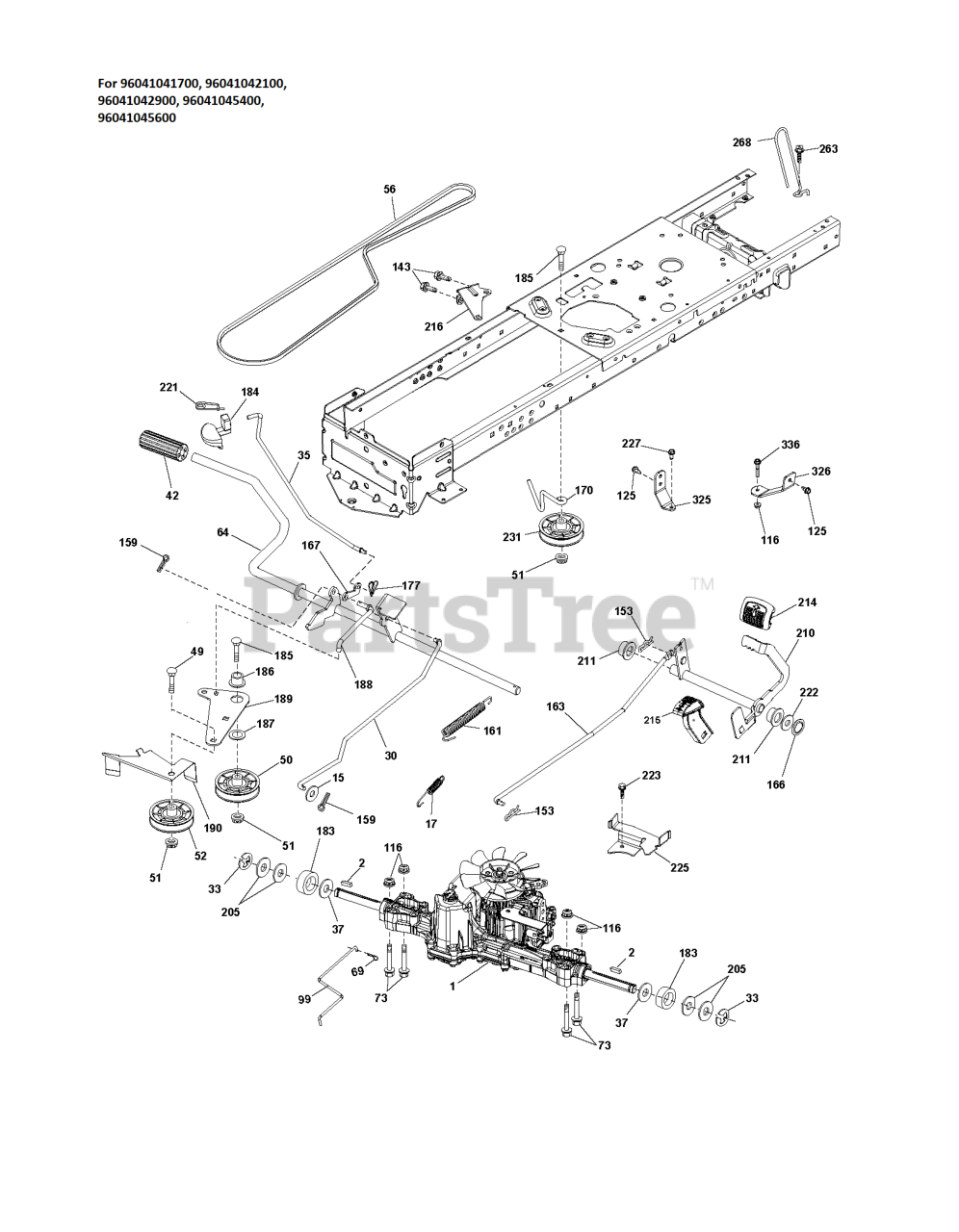

TS 138 - Husqvarna 38" Garden Tractor (Original) DRIVE 4 Parts Diagram

38" Garden Tractor

DRIVE 4 Parts Diagram

  • Title

51

Husqvarna 532409149

NUT.HEX.FLANGE.3/8-16.LOCKNUT

$1.49

$

In Stock, Qty 20+

0

177

Husqvarna 596029401

GSPW Retainers

Note: For 96041041700

$4.99

$

In Stock, only 3 left!

0

116

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

268

Husqvarna 596887801

Mufflers

Note: For 96041042100, 96041045400

$3.99

$

Usually ships in 3-10 days

0

189

Husqvarna 531169001

SERVICE KIT BELLCRANK

$8.49

$

Usually ships in 3-10 days

0

215

Husqvarna 586606502

PEDAL.COVER.REVERSE.CRD.X428BK

$23.99

$

In Stock, only 3 left!

0

227

Husqvarna 596135901

Bolts

$2.49

$

In Stock, Qty 11

0

166

Husqvarna 532429164

NUT.PUSH.625

$4.99

$

In Stock, Qty 14

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$4.99

$

In Stock, Qty 15

0

185

Husqvarna 872110622

BOLT

$4.99

$

In Stock, Qty 12

0

69

Husqvarna 583404901

HAIRPIN.SOFT.ZINC.059X1.125

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532188967

WASHER.HARDENED

Note: For 96041041700, 96041042900, 96041045400, 96041042100, 96041045600

$2.49

$

In Stock, Qty 20+

0

325

Husqvarna 586431203

BRACKET TORQUE STRAP

$5.99

$

In Stock, Qty 20+

0

184

Husqvarna 532411484

HANDLE.PARKNG BRK.PRED.LT.428

$31.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$59.99

$

Usually ships in 3-10 days

0

56

Husqvarna 592855201

Belts

$29.99

$

In Stock, Qty 20+

0

263

Husqvarna 817000612

SCREW, 3/8-16X3/4

Note: For 96041042100, 96041045400

$4.99

$

In Stock, Qty 17

0

153

Husqvarna 532004497

RETAINER M

$4.99

$

In Stock, Qty 10

0

161

Husqvarna 532105709

SPRING, RETURN LT

$14.99

$

In Stock, Qty 20+

0

163

Husqvarna 593861001

Rods

$29.99

$

Usually ships in 3-10 days

0

99

Husqvarna 582404501

ARM.PIVOTING.TCRD.GEN2.5.BAGGE

$7.49

$

In Stock, only 2 left!

0

30

Husqvarna 532403806

ROD.BRAKE.K46

Note: For 96041041700, 96041042100, 96041042900, 96041045400, 96041045600

$23.99

$

In Stock, only 1 left!

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$23.99

$

In Stock, Qty 20+

0

231

Husqvarna 532407287

IDLER.V-GROOVE.1.688.OFFSET

$23.99

$

In Stock, Qty 20+

0

225

Husqvarna 531149001

SERVICE KIT KEEPER BELT KEEPER

$8.49

$

In Stock, Qty 17

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$21.99

$

In Stock, Qty 20+

0

143

Husqvarna 596030701

Screws

$3.99

$

In Stock, Qty 7

0

17

Husqvarna 532413678

SPRING.BRAKE.K46.GREEN

$8.49

$

In Stock, Qty 18

0

49

Husqvarna 596136201

Bolts

$4.99

$

In Stock, Qty 19

0

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$6.99

$

In Stock, Qty 15

0

336

Husqvarna 587259602

Bolts

$4.99

$

In Stock, Qty 9

0

170

Husqvarna 532413430

KEEPER.CENTER SPAN.1.688

$7.49

$

In Stock, only 4 left!

0

125

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$5.99

$

In Stock, Qty 20+

0

35

Husqvarna 596874801

Rods

$14.99

$

Usually ships in 3-10 days

0

15

Husqvarna 596565301

WASHER PLAIN WASHER 3/8 X 0.08

$3.99

$

In Stock, Qty 20+

0

73

Husqvarna 596136501

Bolts

$4.99

$

Usually ships in 3-10 days

0

211

Husqvarna 532120183

BEARING.NYLON

$7.49

$

In Stock, only 2 left!

0

186

Husqvarna 532194321

SPACER.RETAINER

$9.99

$

In Stock, Qty 20+

0

222

Husqvarna 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$4.99

$

In Stock, Qty 6

0

205

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 510089501

PAD, FOOT PEDAL
(Superseded to 532008883)

$6.99

$

In Stock, only 2 left!

0

187

Husqvarna 596135501

Washers

$5.99

$

Usually ships in 3-10 days

0

177

Husqvarna 587225301

PIN COTTER;LOCKING;BOWTIE;1IN

$3.49

$

In Stock, Qty 10

0

223

Husqvarna 598662601

BOLTS

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 20+

0

159

Husqvarna 596029501

Pins

$3.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532421263

PEDAL.FORWARD.PAD.TEX

$7.99

$

In Stock, Qty 7

0

167

Husqvarna 531152901

SERVICE KIT LATCH LATCH.BRAKE.

$3.99

$

In Stock, Qty 12

0

33

Husqvarna 812000001

E-RING LT

$3.99

$

In Stock, Qty 20+

0

326

Husqvarna 586001103

BRACKET TORQUE STRAP

$7.49

$

In Stock, Qty 20+

0

216

Husqvarna 532196131

BRACKET.PULLEY.IDLER.W/TEX

$8.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532426120

TRANSAXLE(K46BT).PDL.

Note: Transaxle, Tuff Torq K46BT (532426120)

$1196.99

$

Usually ships in 3-10 days

0

183

Husqvarna 532137057

SPACER AXLE

Note: For 96041041700, 96041042900, 96041045400, 96041042100, 96041045600

$7.49

$

In Stock, Qty 9

0

188

Husqvarna 582217001

LINK.CLUTCH.GROUND DRIVE.LONG
(Superseded to 532194323)

$5.99

$

In Stock, Qty 8

0

210

Husqvarna 532400980

ROCKER.ASM.PEDAL.CONTR

$43.99

$

In Stock, only 2 left!

0
