TS 138 - Husqvarna 38" Garden Tractor (Original) ENGINE Parts Diagram

38" Garden Tractor

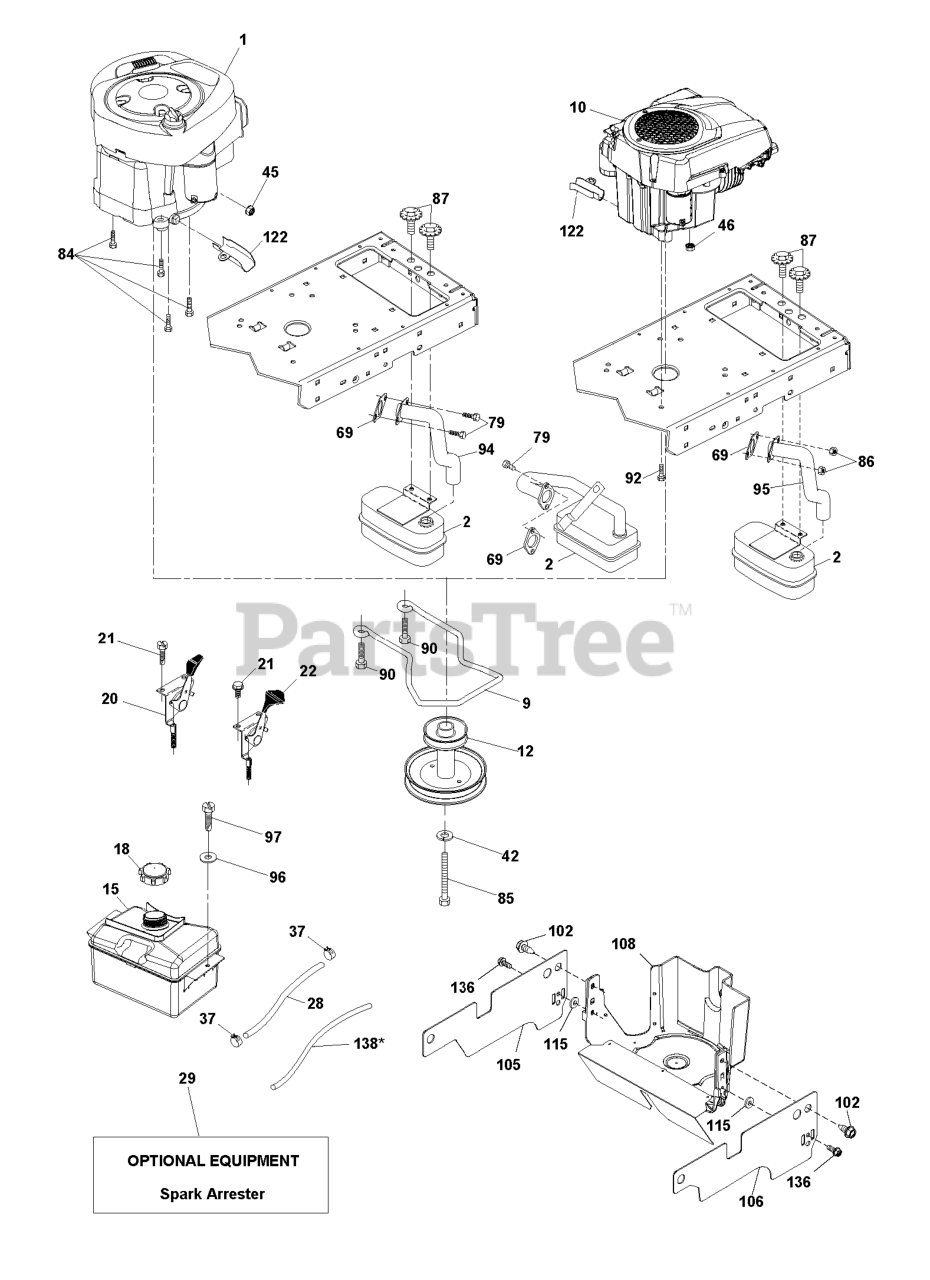

ENGINE Parts Diagram

  • Title

136

Husqvarna 532421756

SCREW.#10 X 0.500

Note: For 96041036700, 96041036701, 96041036702

$

$

Not available

115

Husqvarna 532431761

RETAINER

Note: For 96041036700, 96041036701, 96041036702, 96041042100, 96041045400

$3.49

$

Usually ships in 3-10 days

0

122

Husqvarna 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 9

0

10

Husqvarna 593230401

ENGINE.LONCIN.SPARE/452

Note: For 96041042900. HUSQVARNA MODEL NO. HS452 (COMPLETE IPL AVAILABLE SEPARATELY).

$

$

Not available

105

Husqvarna 501267202

SHIELD.SIDE.LH.3842"TEX FRN.BK

Note: For 96041036700, 96041036701, 96041036702, 96041042100, 96041045400

$8.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

Note: For 96041041700, 96041042100, 96041036700, 96041036701, 96041036702, 96041038300, 96041038301

$12.99

$

Usually ships in 3-10 days

0

9

Husqvarna 596501502

Keepers

Note: For all except 96041038300, 96041038301

$7.49

$

In Stock, Qty 9

0

106

Husqvarna 501268202

SHIELD.SIDE.LH.3842"TEX FRN.BK

Note: For 96041036700, 96041036701, 96041036702, 96041042100, 96041045400

$8.99

$

Usually ships in 3-10 days

0

12

Husqvarna 586478501

ENGINE.PULLEY

Note: For 96041036700, 96041036701, 96041036702, 96041041700, 96041042100, 96041042900, 96041045400

$40.99

$

In Stock, only 3 left!

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

In Stock, Qty 5

0

136

Husqvarna 596434001

Screws

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 593356401

NUT HEXAGON WITH FLANGE, SERRA

Note: For 96041042900, 96041045400

$2.49

$

Usually ships in 3-10 days

0

12

Husqvarna 586729001

PULLEY.ENGINE

Note: For 96041038300, 96041038301

$40.99

$

In Stock, Qty 8

0

10

Husqvarna 598694001

NEEDS DESCRIPTION

Note: For 96041042900, 96041045400. Europe Only. Engine Husqvarna Model HV 452CC. Engine IPL available separately

$

$

Currently unavailable

2

Husqvarna 532137352

MUFFLER.LT.BRIGGS.14HP.IC/OHV

Note: For 96041041700, 96041036700, 96041038300, 96041038301, 96041042100

$44.99

$

In Stock, only 2 left!

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

Note: For 96041036701, 96041036702, 96041042100, 96041042900, 96041045400

$7.49

$

In Stock, Qty 5

0

1

000000000

Note: For 96041042100. Engine B&S Model No. 31R577-0027-B5 (597359601).

$

$

Not available

96

Husqvarna 819091416

WASHER

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$6.49

$

Usually ships in 3-10 days

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431

Note: For 96041036700, 96041036701, 96041036702, 96041041700, 96041042100, 96041042900

$

$

Not available

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$4.99

$

In Stock, Qty 8

0

1

000000000

Note: For 96041038300, 96041038301, 96041041700. ENGINE B&S MODEL 31R977-0046-G1 (588640801).

$

$

Not available

79

Husqvarna 596134202

Screws

Note: For 96041042900

$3.99

$

In Stock, Qty 10

0

69

Husqvarna 590863501

GASKET GASKET.EXHAUST.LONCIN 3

Note: For 96041042900, 96041045400

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 587044822

HOSE.1/4".LOW.PERM.FUEL.LN.22"

Note: For 96041042900

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 597952201

Tanks

Note: For 96041042900 EPA TANK

$103.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532185909

GASKET.EXHAUST.KOHLER

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$

$

Not available

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

Note: For 96041036701, 96041036702, 96041042100

$44.99

$

In Stock, Qty 20+

0

84

Husqvarna 817060620

SCREW.3/8-16

Note: For all EXCEPT 96041042900

$7.49

$

In Stock, Qty 20+

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

Note: For 96041045400

$6.49

$

In Stock, only 4 left!

0

20

Husqvarna 587242604

THROTTLE CABLE

Note: For all EXCEPT 96041042900, 96041045400

$24.99

$

Usually ships in 3-10 days

0

79

Husqvarna 596134201

Screws

Note: For all EXCEPT 96041042900

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 532183897

CONTROL.TH/CK.C.
(Superseded to 532176636)

Note: For 96041042900, 96041045400

$37.99

$

In Stock, only 1 left!

0

2

Husqvarna 590645301

MUFFLER.ASM.SINGLE

Note: For 96041042900, 96041045400

$44.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990247

WASHER 7/16 LOCK

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$

$

Not available

108

Husqvarna 587179509

COVER ENGINE PULLEY COVER WITH

Note: For 96041036700, 96041036701, 96041036702, 96041042100, 96041045400

$34.99

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 13

0

94

Husqvarna 581880901

EXHAUST.TUBE.B&S.28/31

Note: For 96041036701, 96041036702, 96041042100

$31.99

$

In Stock, Qty 5

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

Note: For 96041036700, 96041036701, 96041036702, 96041042100, 96041045400

$6.49

$

In Stock, Qty 20+

0

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

Note: All except 96041042900

$7.49

$

In Stock, Qty 11

0

92

Husqvarna 817120616

SCREW 3/8-16X1

Note: For 96041042900, 96041045400

$5.99

$

In Stock, Qty 20+

0

138

Husqvarna 587044531

NEEDS DESCRIPTION

Note: Only equipped with the unit using EPA tank

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 596133601

Hardware

Note: For all EXCEPT 96041042900, 96041045400

$3.99

$

Usually ships in 3-10 days

0

96

Husqvarna 596135301

Washers

$3.99

$

In Stock, Qty 6

0

95

Husqvarna 590864701

TUBE TUBE.EXHAUST.LONCIN 452.T

Note: For 96041042900, 96041045400

$24.99

$

Usually ships in 3-10 days

0

15

Husqvarna 581289901

FUEL.TANK.ASM.NON-EPA

Note: NON-EPA TANK

$87.99

$

In Stock, Qty 5

0

20

Husqvarna 587242601

THROTTLE.COBRA.21".RSTART.BLK

Note: For all EXCEPT 96041042900, 96041045400

$

$

Not available

9

Husqvarna 582540302

KEEPER.BELT.ENG.3.25"2BOLT.PNT

Note: For 96041038300, 96041038301

$7.49

$

Usually ships in 3-10 days

0

1

000000000

Note: For 96041036700, 96041036701, 96041036702. ENGINE B&S MODEL 31R577-0027-B1 (587333501).

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

28

Husqvarna 587044820

HOSE 1/4" LOW PERMEATION FUEL

Note: For all EXCEPT 96041042900

$7.49

$

In Stock, Qty 11

0

45

Husqvarna 586668901

NUT HEX_LRG FLG_1_4-20_LOCK

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$3.99

$

In Stock, Qty 20+
