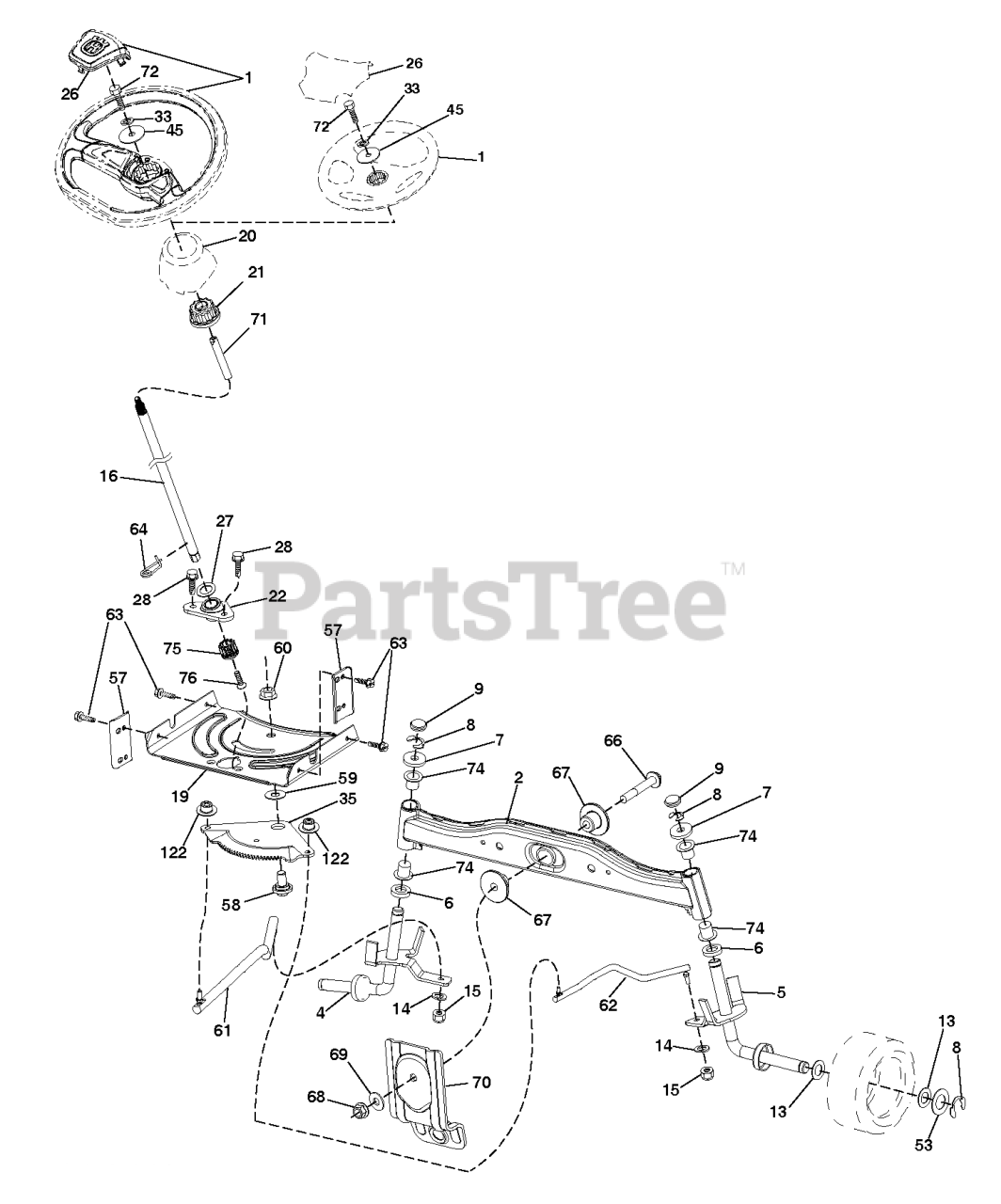

TS 138 - Husqvarna 38" Garden Tractor (Original) STEERING Parts Diagram

38" Garden Tractor

STEERING Parts Diagram

  • Title

28

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 15

0

66

Husqvarna 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$5.99

$

In Stock, Qty 7

0

60

Husqvarna 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 532194732

GEAR.SECTOR.PLATE.DDL.

$33.99

$

In Stock, Qty 20+

0

21

Husqvarna 532186737

ADAPTER, WHEEL STNG..
(Superseded to 587738905)

$11.99

$

In Stock, Qty 20+

0

5

Husqvarna 532403088

SPINDLE.WELDED.RH.15"T
(Superseded to 538691201)

$27.99

$

In Stock, Qty 20+

0

59

Husqvarna 532194748

WASHER.THURST.SECTOR.S

$5.99

$

In Stock, Qty 20+

0

4

Husqvarna 532403087

SPINDLE.WELDED.LH.15"TEX
(Superseded to 596873601)

$21.99

$

In Stock, Qty 20+

0

26

Husqvarna 594949101

Steering

Note: For 96041042100, 96041042900, 96041045400

$7.49

$

In Stock, only 1 left!

0

58

Husqvarna 532194747

BOLT.SHOULDER.SECTOR.P

$8.49

$

In Stock, Qty 20+

0

62

Husqvarna 532194741

DRAGLINK.RH.BALLSTUD.D
(Superseded to 597047902)

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301, 96041041700

$17.99

$

In Stock, Qty 20+

0

2

Husqvarna 532418168

AXLE HALF ASM-WELDED
(Superseded to 531171101)

$77.99

$

In Stock, Qty 20+

0

6

Husqvarna 532006266

WASHER THRUST

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 585338801

BRACKET.FRT.DECK.SUSP.RR.MT431
(Superseded to 585338802)

$21.99

$

In Stock, Qty 15

0

20

Husqvarna 532441425

STEERING.BOOT.HUSQ.LT

$9.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532190752

SHAFT.EXTEN.STRG.SPLINE

$13.99

$

In Stock, only 3 left!

0

45

Husqvarna 819113812

WASHER.11/32
(Superseded to 596040001)

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$8.49

$

In Stock, only 1 left!

0

68

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$4.99

$

In Stock, Qty 12

0

15

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 597047902

Links

$17.99

$

In Stock, Qty 20+

0

14

Husqvarna 596238701

Washers

$3.99

$

In Stock, Qty 20+

0

57

Husqvarna 532407465

BRACKET.UPSTOP.TEX

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

72

Husqvarna 532428982

BOLT 5/16-18 X 4 W/PATCH
(Superseded to 596039701)

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$4.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532194740

DRAGLINK.LH.BALLSTUD.D
(Superseded to 597047802)

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301, 96041041700

$17.99

$

In Stock, Qty 20+

0

69

Husqvarna 532199162

WASHER.1.5X.505X.118

$5.99

$

In Stock, only 3 left!

0

63

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

74

Husqvarna 532003366

BEARING.STEERING.COLUMN

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 596238801

WASHER SPRING LOCK WASHER WITH

Note: For 96041042100, 96041042900, 96041045400

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 812000029

RING CLIP

$2.49

$

In Stock, Qty 20+

0

45

Husqvarna 596040001

Washers

$8.49

$

In Stock, only 1 left!

0

27

Husqvarna 596933401

Washers

$3.99

$

In Stock, Qty 11

0

26

Husqvarna 532439743

INSERT.CAP.WHL.STRG.HUSQ.PREM

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301, 96041041700

$14.99

$

In Stock, Qty 5

0

53

Husqvarna 532188967

WASHER.HARDENED

$2.49

$

In Stock, Qty 20+

0

61

Husqvarna 597047802

Links

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

Note: For 96041036700, 96041038300, 96041036701

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 585029802

BEARING.SHAFT.STEER.LOWER.625
(Superseded to 587738901)

$17.99

$

In Stock, Qty 20+

0

76

Husqvarna 580683601

SCREW HEAD SOCKET LRVB

$3.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532444962

CAP.GEAR.SECTOR.TEX
(Superseded to 583576601)

$5.99

$

In Stock, Qty 20+

0

33

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

Note: For 96041036702, 96041038301, 96041041700

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 819211616

WASHER LT
(Superseded to 596933401)

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301

$3.99

$

In Stock, Qty 11

0

67

Husqvarna 532194737

BUSHING.PM.FRONT AXLE
(Superseded to 529496302)

$3.99

$

In Stock, only 1 left!

0

19

Husqvarna 532194729

PLATE.STEER.DDL.NLT/NG
(Superseded to 531169101)

$29.99

$

In Stock, Qty 9

0

13

Husqvarna 532121749

WASHER

$2.49

$

In Stock, Qty 20+

0

75

Husqvarna 587738906

KIT.SRVC.STEERINGSHAFT.PINION

$4.99

$

In Stock, Qty 5

0

64

Husqvarna 532199849

RETAINER.CLIP.SPRING.S

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 532439997

WHEEL.STEERING.HUSQ.PREM.HRDRM

Note: For 96041036700, 96041038300, 96041036701, 96041036702, 96041038301, 96041041700

$65.99

$

Usually ships in 3-10 days

0

16

Husqvarna 585869202

3 HIGH.SHAFT-ZINC.PLATED
(Superseded to 587738903)

$59.99

$

In Stock, Qty 8

0

1

Husqvarna 597866101

Service Kit

Note: For 96041042100, 96041042900

$77.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 20+

0

72

Husqvarna 596039701

Bolts

$4.99

$

Usually ships in 3-10 days

0
