TS 142 - Husqvarna 42" Garden Tractor (Original) ENGINE Parts Diagram

42" Garden Tractor

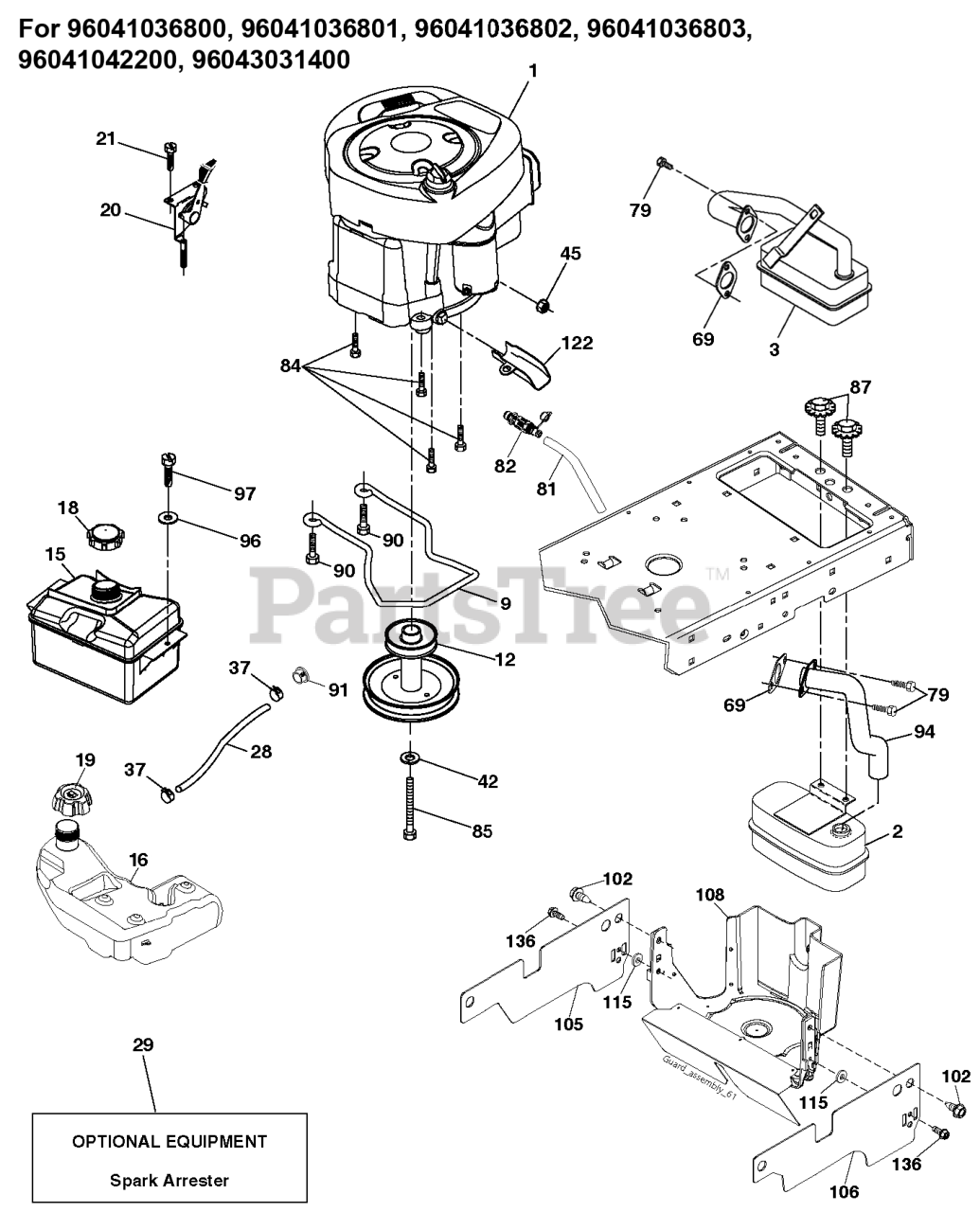

ENGINE Parts Diagram

  • Title

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

Note: For 96041036800, 96041036801, 96041036802, 96041036803, 96041042200

$4.99

$

In Stock, only 2 left!

0

96

Husqvarna 819091416

WASHER
(Superseded to 596135301)

Note: For 96041036800, 96041036801, 96041036802, 96041036803, 96041042200

$3.99

$

In Stock, Qty 6

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

Note: For 96043031400

$27.99

$

In Stock, only 2 left!

0

115

Husqvarna 532431761

RETAINER

Note: For 96041036800, 96041036801, 96041036802, 96041036803, 96041042200

$4.99

$

Usually ships in 3-10 days

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

45

Husqvarna 596133601

Hardware

Note: For 96043031400

$3.99

$

In Stock, only 2 left!

0

1

000000000

Note: For 96041042200. Engine Briggs Model No. 31R577-0027-B5 (597359601).

$

$

Not available

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$3.49

$

Usually ships in 3-10 days

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

Note: For 96043031400

$23.99

$

In Stock, Qty 20+

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$14.99

$

In Stock, only 1 left!

0

42

Husqvarna 596238901

Washers

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$29.99

$

Usually ships in 3-10 days

0

136

Husqvarna 532421756

SCREW.#10 X 0.500
(Superseded to 596434001)

Note: For 96041036800, 96041036801, 96041036802, 96041036803, 96041042200

$3.99

$

Usually ships in 3-10 days

0

122

Husqvarna 532421922

EXTENSION DRAIN OIL

Note: For 96041036800, 96041036801, 96041036802, 96041036803, 96041042200

$31.99

$

In Stock, Qty 6

0

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

Note: For 96041036802, 96041036803, 96041042200

$53.99

$

In Stock, Qty 20+

0

79

Husqvarna 596134201

Screws

$3.99

$

In Stock, Qty 20+

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

Note: For 96043031400

$6.99

$

In Stock, Qty 13

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

Note: For 96041036800, 96041036801, 96041036802, 96041036803, 96041042200

$5.99

$

In Stock, Qty 20+

0

12

Husqvarna 586478501

ENGINE.PULLEY

$35.99

$

In Stock, only 1 left!

0

105

Husqvarna 501267202

SHIELD.SIDE.LH.3842"TEX FRN.BK

Note: For 96041036800, 96041036801, 96041036802, 96041036803, 96041042200

$17.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

Note: For 96041036802, 96041036803, 96041042200, 96043031400

$5.99

$

In Stock, Qty 10

0

108

Husqvarna 587179509

COVER ENGINE PULLEY COVER WITH

Note: For 96041036800, 96041036801, 96041036802, 96041036803, 96041042200

$89.99

$

Usually ships in 3-10 days

0

20

Husqvarna 587242601

THROTTLE.COBRA.21".RSTART.BLK
(Superseded to 587242604)

$27.99

$

Usually ships in 3-10 days

0

106

Husqvarna 501268202

SHIELD.SIDE.LH.3842"TEX FRN.BK

Note: For 96041036800, 96041036801, 96041036802, 96041036803, 96041042200

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 596501502

Keepers

$14.99

$

In Stock, only 1 left!

0

15

Husqvarna 581289901

FUEL.TANK.ASM.NON-EPA

Note: Fits 2.75" filler neck. For 96041036800, 96041036801, 96041036802, 96041036803, 96041042200

$62.99

$

In Stock, Qty 6

0

91

Husqvarna 532187495

BUSHING.1.375OD

Note: For 96043031400

$5.99

$

In Stock, only 2 left!

0

2

Husqvarna 590645301

MUFFLER.ASM.SINGLE
(Superseded to 590645302)

Note: For 96043031400

$59.99

$

In Stock, Qty 7

0

45

Husqvarna 586668901

NUT HEX_LRG FLG_1_4-20_LOCK

Note: For 96041036800, 96041036801, 96041036802, 96041036803, 96041042200

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck. For 96043031400

$23.99

$

In Stock, only 4 left!

0

28

Husqvarna 587044820

HOSE 1/4" LOW PERMEATION FUEL

Note: For 96041036800, 96041036801, 96041036802, 96041036803, 96041042200

$14.99

$

In Stock, Qty 10

0

1

000000000

Note: For 96041036800, 96041036801, 96041036802, 96041036803. Engine Briggs Model No. 31R577-0027-B1 (587333501).

$

$

Not available

3

Husqvarna 532137352

MUFFLER.LT.BRIGGS.14HP.IC/OHV

Note: For 96041036800, 96041036801

$53.99

$

In Stock, Qty 19

0

20

Husqvarna 587242604

THROTTLE CABLE

Note: For 96043031400

$27.99

$

Usually ships in 3-10 days

0

1

000000000

Note: For 96043031400. ENGINE B&S MODEL NO. 31S777-0004-G1 (597971301).

$

$

Not available

94

Husqvarna 581880901

EXHAUST.TUBE.B&S.28/31

Note: For 96041036802, 96041036803, 96041042200, 96043031400

$27.99

$

In Stock, only 2 left!

0

16

Husqvarna 532438031

FUEL TANKS
(Superseded to 599306005)

Note: Fits 2.75" filler neck. For 96043031400

$335.99

$

In Stock, Qty 11

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 13

0

18

Husqvarna 581075501

CAP.2.25'.VENTED.RATCHET.EPA

Note: Fits 2.75" filler neck. For 96041036800, 96041036801, 96041036802, 96041036803, 96041042200

$27.99

$

In Stock, Qty 6

0
