TS 142 - Husqvarna 42" Garden Tractor (Original) MOWER LIFT / DECK LIFT Parts Diagram

42" Garden Tractor

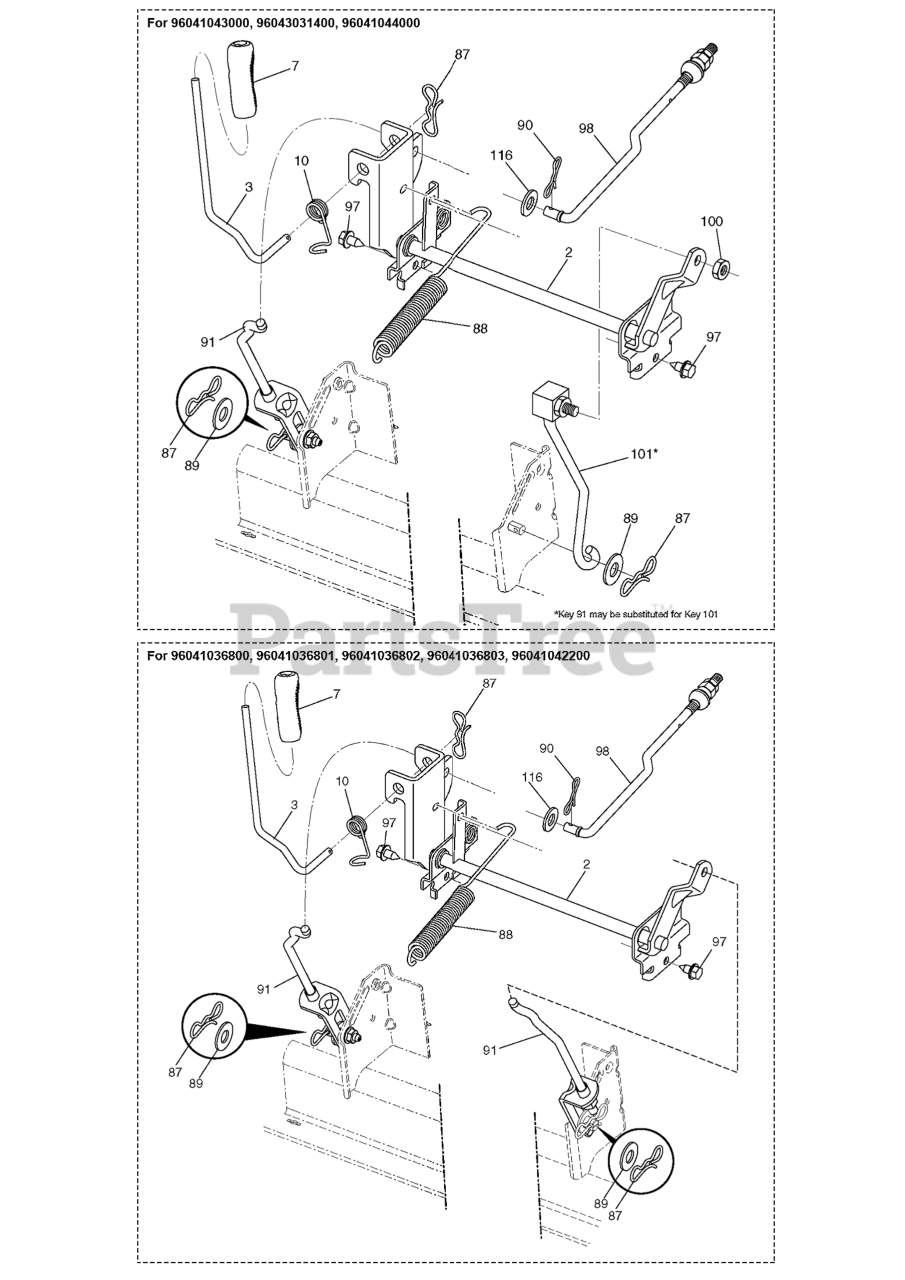

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

100

Husqvarna 595305901

Nuts

Note: For 96041043000, 96043031400, 96041044000

$3.99

$

In Stock, Qty 20+

0

87

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

Usually ships in 3-10 days

0

89

Husqvarna 819191912

WASHER.CLEAR.ZINC

$3.99

$

In Stock, Qty 5

0

2

Husqvarna 532422027

SHAFT.ASM.CROSS.LIFT

$89.99

$

In Stock, only 2 left!

0

98

Husqvarna 532195270

LINK.ASM.SUSP.FRONT.MW
(Superseded to 581506903)

Note: For 96041036800, 96041036801, 96041036802, 96041036803, 96041042200, 96041044000

$17.99

$

In Stock, Qty 20+

0

91

Husqvarna 589464803

LINK ASSY LIFT.REAR 10.278
(Superseded to 589464807)

Note: For 96041043000, 96041044000, 96043031400

$23.99

$

In Stock, only 1 left!

0

97

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

88

Husqvarna 532410710

SPRING.LIFT.ASSIST

$14.99

$

In Stock, Qty 6

0

90

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$1.49

$

In Stock, Qty 20+

0

3

Husqvarna 594018001

Levers

Note: For 96041043000, 96043031400, 96041044000

$23.99

$

In Stock, only 1 left!

0

98

Husqvarna 581506903

Links

Note: For 96041043000, 96043031400, 96041044000

$17.99

$

In Stock, Qty 20+

0

116

Husqvarna 594976501

Washers

Note: For 96041042200, 96041043000, 96043031400, 96041044000

$3.99

$

In Stock, Qty 13

0

101

Husqvarna 532407003

LINK.ASM.LIFT.FIXE.38/42/46"

Note: For 96041043000, 96043031400, 96041044000

$14.99

$

In Stock, only 2 left!

0

7

Husqvarna 580962301

GRIP.HANDLE.LIFT.PVC.BLACK
(Superseded to 532411555)

$9.99

$

In Stock, only 3 left!

0

91

Husqvarna 589464807

Links

Note: For 96041043000, 96041044000

$23.99

$

In Stock, only 1 left!

0

3

Husqvarna 532195231

LEVER.LIFT.HANDLE.LT
(Superseded to 594018001)

Note: For 96041036800, 96041036801, 96041036802, 96041036803, 96041042200

$23.99

$

In Stock, only 1 left!

0

10

Husqvarna 532196314

SPRING.TORSION.LIFT.HANDLE

$4.99

$

In Stock, Qty 8

0

116

Husqvarna 819151516

WASHER
(Superseded to 594976501)

Note: For 96041036800, 96041036801, 96041036802, 96041036803, 96041044000

$3.99

$

In Stock, Qty 13

0
