TS 142 T (960410432-00) - Husqvarna 42" Garden Tractor (2019-06) ENGINE Parts Diagram

42" Garden Tractor

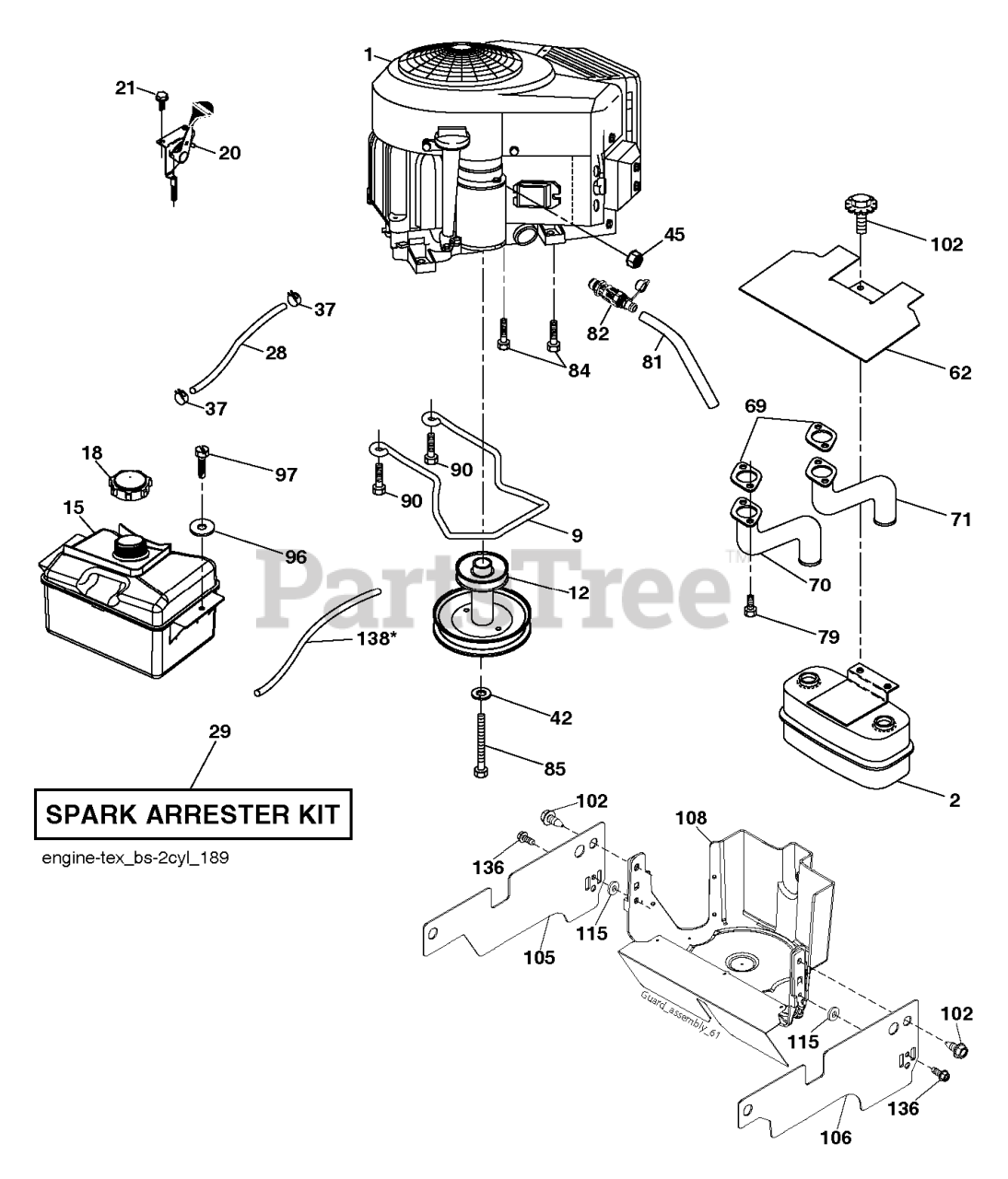

ENGINE Parts Diagram

  • Title

9

Husqvarna 596501502

Keepers

$13.99

$

In Stock, Qty 5

0

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$13.99

$

In Stock, Qty 11

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, Qty 20+

0

108

Husqvarna 587179509

COVER ENGINE PULLEY COVER WITH

$85.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 6

0

15

Husqvarna 597952202

Tanks
(Superseded to 597952203)

Note: EPA TANK

$96.99

$

Usually ships in 3-10 days

0

15

Husqvarna 581289901

FUEL.TANK.ASM.NON-EPA

Note: NON-EPA TANK

$87.99

$

In Stock, Qty 10

0

12

Husqvarna 586478501

ENGINE.PULLEY

$40.99

$

In Stock, only 3 left!

0

70

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

$44.99

$

In Stock, Qty 10

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

In Stock, Qty 16

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

136

Husqvarna 596434001

Screws

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 596133601

Hardware

$3.99

$

Usually ships in 3-10 days

0

106

Husqvarna 501268202

SHIELD.SIDE.LH.3842"TEX FRN.BK

$13.99

$

Usually ships in 3-10 days

0

71

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

$28.99

$

In Stock, Qty 10

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$20.99

$

In Stock, Qty 20+

0

21

Husqvarna 596321701

Screws

$3.99

$

Usually ships in 3-10 days

0

115

Husqvarna 532431761

RETAINER

$4.99

$

Usually ships in 3-10 days

0

96

Husqvarna 596135301

Washers

$3.99

$

In Stock, Qty 6

0

20

Husqvarna 587242504

THROTTLE CABLE

$39.99

$

In Stock, only 2 left!

0

79

Husqvarna 596134202

Screws

$3.99

$

In Stock, Qty 16

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 17

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

1

000000000

Note: ENGINE BRIGGS MODEL NUMBER 40N777-0009-BS(597818301)

$

$

Not available

138*

Husqvarna 587044531

NEEDS DESCRIPTION

Note: Only equipped with unit using EPA-Tank

$5.99

$

Usually ships in 3-10 days

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$56.99

$

In Stock, Qty 20+

0

105

Husqvarna 501267202

SHIELD.SIDE.LH.3842"TEX FRN.BK

$17.99

$

Usually ships in 3-10 days

0
