TS 142 TX (960410434-00) - Husqvarna 42" Garden Tractor (2019-06) ENGINE Parts Diagram

42" Garden Tractor

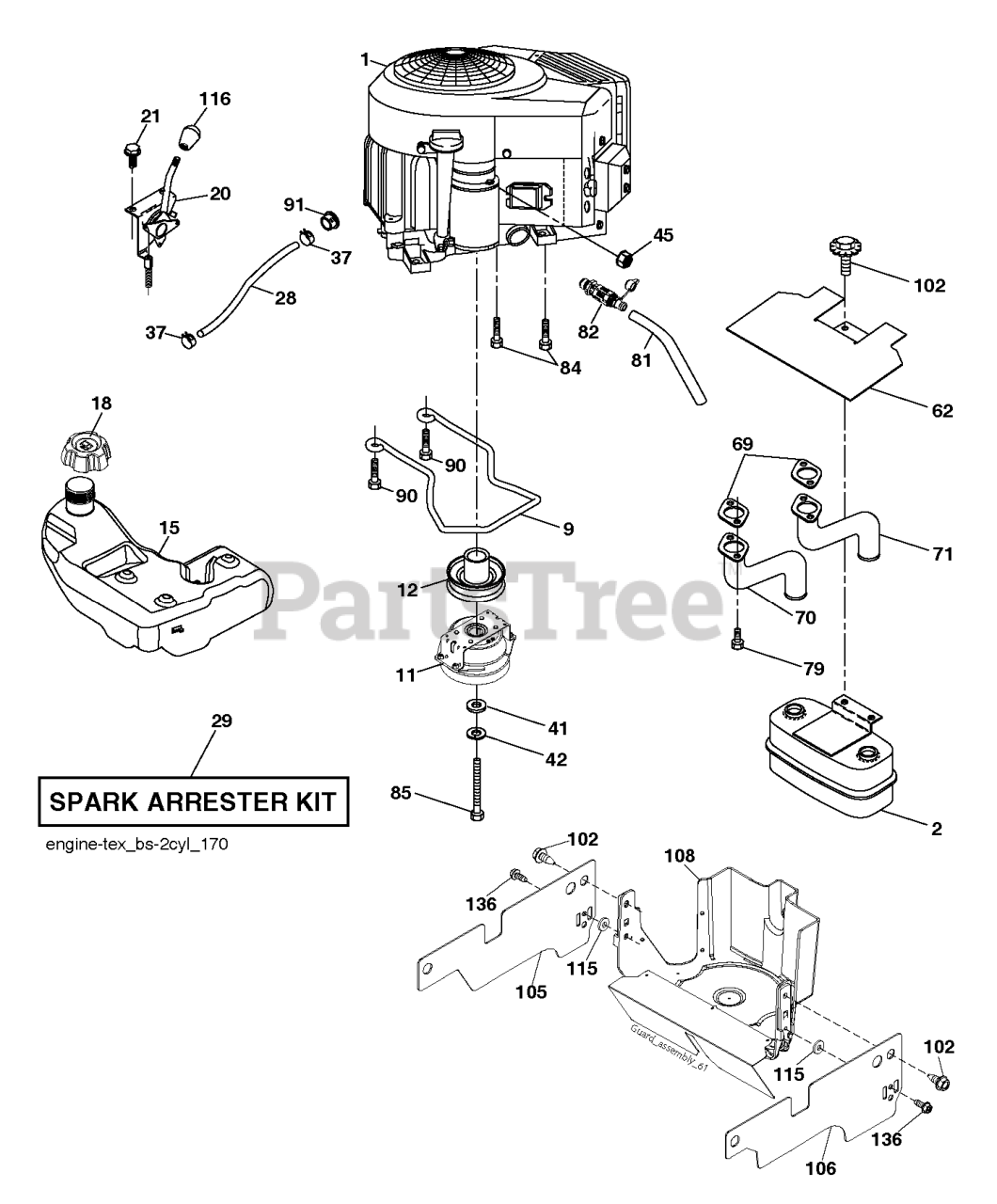

ENGINE Parts Diagram

  • Title

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$13.99

$

In Stock, only 2 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$20.99

$

In Stock, Qty 8

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$56.99

$

In Stock, only 3 left!

0

108

Husqvarna 587179509

COVER ENGINE PULLEY COVER WITH

$85.99

$

Usually ships in 3-10 days

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 5

0

106

Husqvarna 501268202

SHIELD.SIDE.LH.3842"TEX FRN.BK

$13.99

$

Usually ships in 3-10 days

0

136

Husqvarna 596434001

Screws

$3.49

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

84

Husqvarna 817060620

SCREW.3/8-16

$6.99

$

In Stock, Qty 11

0

105

Husqvarna 501267202

SHIELD.SIDE.LH.3842"TEX FRN.BK

$17.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 2 left!

0

70

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

$34.99

$

In Stock, Qty 5

0

79

Husqvarna 596134202

Screws

$3.49

$

In Stock, Qty 20+

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

1

000000000

Note: Engine B&S Model No. 40U777-0006-B5 (597360001)

$

$

Not available

20

Husqvarna 587242701

THROTTLE.PRO.RSTART. 38

$34.99

$

Usually ships in 3-10 days

0

42

Husqvarna 596238901

Washers

$3.49

$

In Stock, Qty 20+

0

21

Husqvarna 596321701

Screws

$3.49

$

In Stock, Qty 20+

0

41

Husqvarna 532126197

WASHER

$7.99

$

In Stock, Qty 5

0

45

Husqvarna 596133601

Hardware

$3.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$26.99

$

In Stock, only 1 left!

0

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck

$22.99

$

In Stock, only 2 left!

0

71

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

$28.99

$

In Stock, only 3 left!

0

18

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$28.99

$

Usually ships in 3-10 days

0

115

Husqvarna 532431761

RETAINER

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$62.99

$

In Stock, only 2 left!

0

15

Husqvarna 532438027

FUEL.TANK.ASM.3.0GAL.REAR.2019
(Superseded to 532438031)

Note: Fits 2.75" filler neck

$

$

Not available

85

Husqvarna 581332804

CLUTCH BOLT7/16-20X3.5 GR524HR

$7.99

$

In Stock, Qty 8

0

11

Husqvarna 587241501

CLUTCH.OGURA.4.4PD.GT1.5-EH13V

$250.99

$

Usually ships in 3-10 days

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 19

0
