TS 142 TXD (960410450-00) - Husqvarna 42" Garden Tractor (2020-03) ENGINE Parts Diagram

42" Garden Tractor

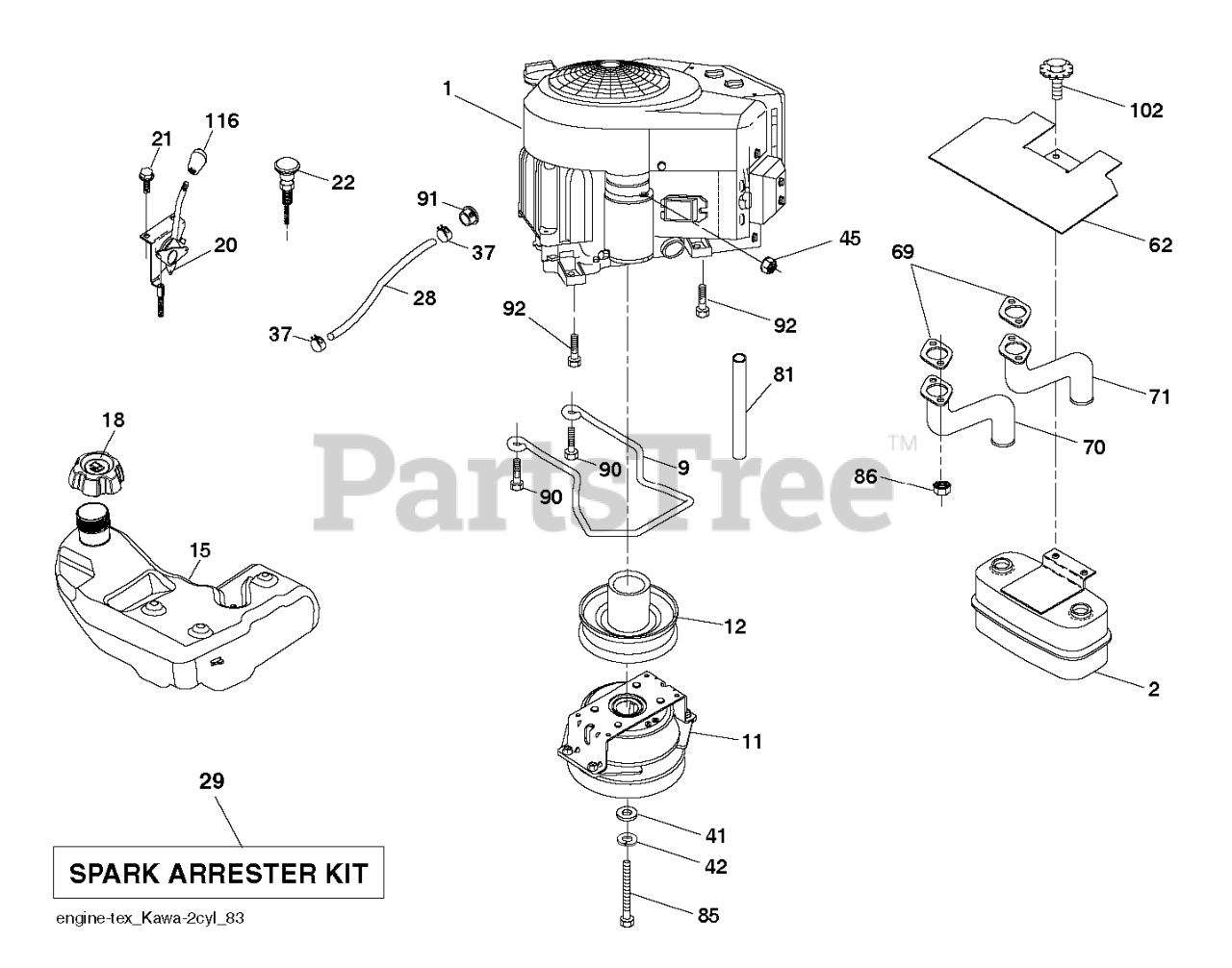

ENGINE Parts Diagram

  • Title

15

Husqvarna 532438031

FUEL TANKS
(Superseded to 599306005)

Note: Fits 2.75" filler neck

$335.99

$

In Stock, Qty 11

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 10

0

1

000000000

Note: Engine KAWA Model No. FR651V (5930036001)

$

$

Not available

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

85

Husqvarna 581332804

CLUTCH BOLT7/16-20X3.5 GR524HR

$7.49

$

In Stock, Qty 11

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$71.99

$

In Stock, Qty 17

0

22

Husqvarna 532189541

CONTROL, CHOKE
(Superseded to 532187768)

$37.99

$

In Stock, only 2 left!

0

20

Husqvarna 532424341

CONTROL.THROTTLE.PRO.

$45.99

$

In Stock, only 2 left!

0

71

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

$33.99

$

In Stock, only 2 left!

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.99

$

In Stock, Qty 5

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0

69

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 587241501

CLUTCH.OGURA.4.4PD.GT1.5-EH13V

$250.99

$

Usually ships in 3-10 days

0

42

Husqvarna 596238901

Washers

$3.99

$

Usually ships in 3-10 days

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

70

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

$33.99

$

In Stock, only 4 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 13

0

9

Husqvarna 596501502

Keepers

$14.99

$

In Stock, only 1 left!

0

45

Husqvarna 596133601

Hardware

$3.99

$

In Stock, only 2 left!

0

41

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 15

0

18

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$29.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$27.99

$

In Stock, only 2 left!

0

21

Husqvarna 532438562

SCREW.#10X.750
(Superseded to 583533301)

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$71.99

$

Usually ships in 3-10 days

0

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck

$23.99

$

In Stock, only 4 left!

0
