TS 146 XK - Husqvarna 46" Garden Tractor (Original) ELECTRICAL Parts Diagram

46" Garden Tractor

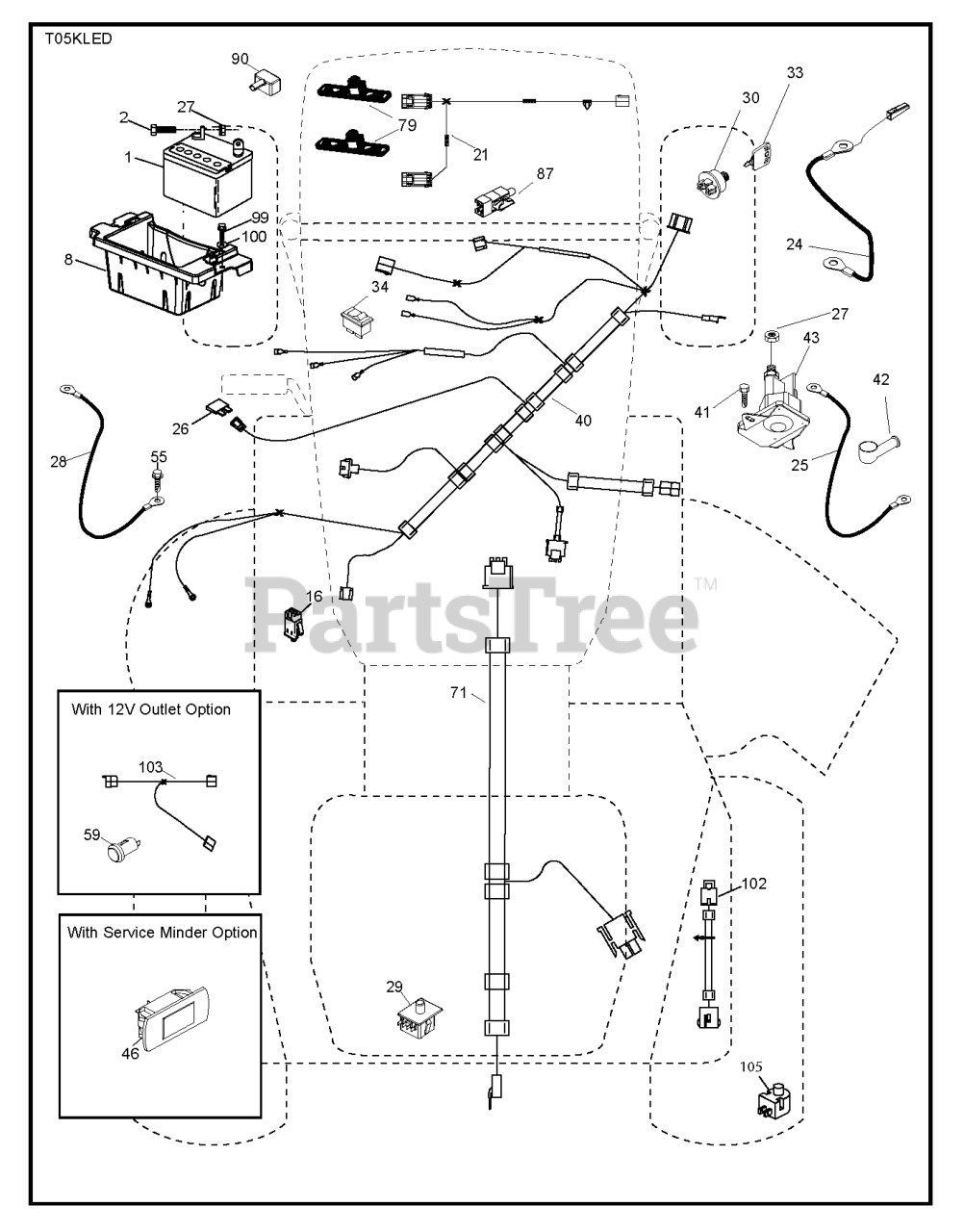

ELECTRICAL Parts Diagram

  • Title

42

Husqvarna 532154336

COVER.TERMINAL.RED

$8.99

$

Usually ships in 3-10 days

0

46

Husqvarna 594919101

GUAGE.SRVCMNDR.HRMTR.

$24.99

$

In Stock, Qty 18

0

99

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

55

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

102

Husqvarna 532404454

HARNESS PIGTAIL PCH TEX ROS

$26.99

$

In Stock, only 1 left!

0

33

Husqvarna 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$10.99

$

In Stock, Qty 20+

0

41

Husqvarna 596437001

Screws

$3.99

$

In Stock, Qty 10

0

71

Husqvarna 532194276

HARNESS-CHASSIS SUB

$40.99

$

In Stock, only 1 left!

0

25

Husqvarna 585555501

CABLE.STARTER.8GA.17.5

$8.99

$

In Stock, Qty 7

0

100

Husqvarna 596135301

Washers

$3.99

$

In Stock, Qty 6

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, Qty 5

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$13.99

$

In Stock, Qty 20+

0

43

Husqvarna 582042802

Solenoids

$13.99

$

In Stock, Qty 20+

0

34

Husqvarna 532110712

SWITCH LT

$8.99

$

In Stock, Qty 10

0

79

Husqvarna 597523001

Light

$18.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532416588

CABLE.GROUND.21"BLK.8GA.90T

$8.99

$

In Stock, only 2 left!

0

105

Husqvarna 532407568

REVERSE SWITCH

$18.99

$

Usually ships in 3-10 days

0

21

Husqvarna 585436402

Harnesses

$14.99

$

Usually ships in 3-10 days

0

24

Husqvarna 585555601

CABLE.FRBATT.W/WIRE.8GA.8

$8.99

$

In Stock, Qty 13

0

87

Husqvarna 532197802

SWITCH.INTRLCK.CLUTCH.

$18.99

$

In Stock, Qty 13

0

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, Qty 10

0

1

Husqvarna 532123899

BATTERY.DRY.30.AMP

$194.99

$

Usually ships in 3-10 days

0

8

Husqvarna 587205101

TRAY.BATTERY BOX.FRONT

$10.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$6.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$15.99

$

In Stock, Qty 20+

0

29

Husqvarna 532192749

SWITCH.SEAT.DP W/RAMPS

$21.99

$

In Stock, only 2 left!

0

27

Husqvarna 596133601

Hardware

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 501133001

HARNESS.IGN.DASH.CBL.YTGT.PRED

$66.99

$

In Stock, only 1 left!

0
