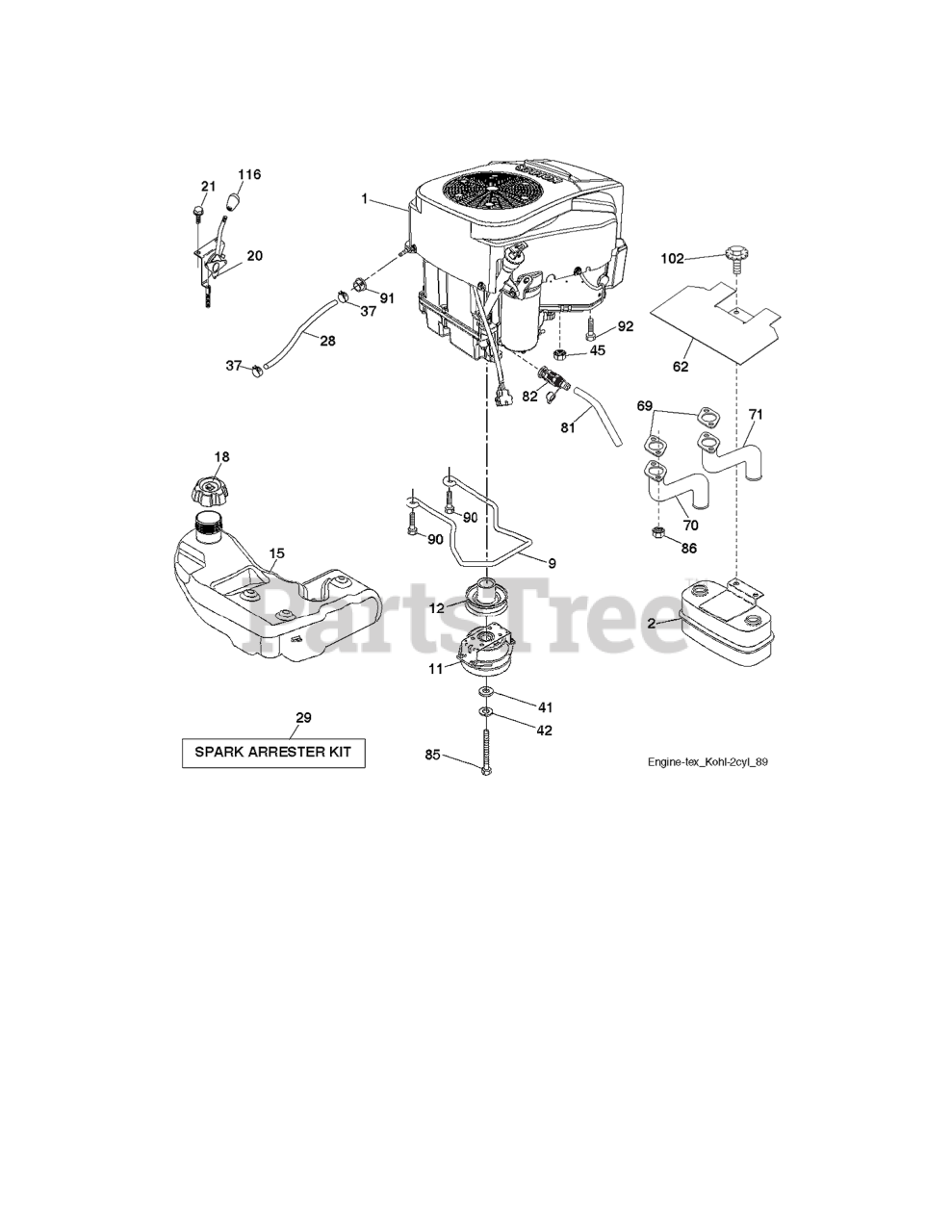

TS 148 XK - Husqvarna 48" Garden Tractor ENGINE 2 Parts Diagram

48" Garden Tractor

ENGINE 2 Parts Diagram

  • Title

18

Husqvarna 529989702

FUEL CAP

Note: Fits 2.00" filler neck

$22.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 16

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 7

0

45

Husqvarna 596133601

Hardware

$3.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

$

$

Not available

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

In Stock, only 1 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$4.99

$

In Stock, Qty 14

0

20

Husqvarna 587631703

THROTTLE.KOHL.PRO.#88PAD_46"

$31.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 4 left!

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 6

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 14

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$18.99

$

Usually ships in 3-10 days

0

9

Husqvarna 596501502

Keepers

$7.49

$

In Stock, Qty 8

0

92

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.49

$

In Stock, Qty 12

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET

$44.99

$

Usually ships in 3-10 days

0

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck

$18.99

$

Usually ships in 3-10 days

0

70

Husqvarna 583954801

PIPE.EXHAUST.RH.CV18/20

$17.99

$

In Stock, Qty 8

0

15

Husqvarna 532438031

FUEL TANKS

Note: Fits 2.75" filler neck

$206.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

85

Husqvarna 501606601

BOLT.HEX.7/16-20X3.75.GR5.RED

$4.99

$

In Stock, Qty 5

0

21

Husqvarna 532438562

SCREW.#10X.750
(Superseded to 583533301)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 587241601

CLUTCH.OGURA.5.0PD.GT1.5A-EH07

$278.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

71

Husqvarna 583954501

PIPE.EXHAUST.LH.CV18/20

$17.99

$

In Stock, Qty 9

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

1

000000000

Note: ENGINE KOHLER MODEL NO. KT735-3090 (529818501)

$

$

Not available
