TS 230 F - Husqvarna Tile Saw (2007-03) PRODUCT COMPLETE Parts Diagram

Tile Saw

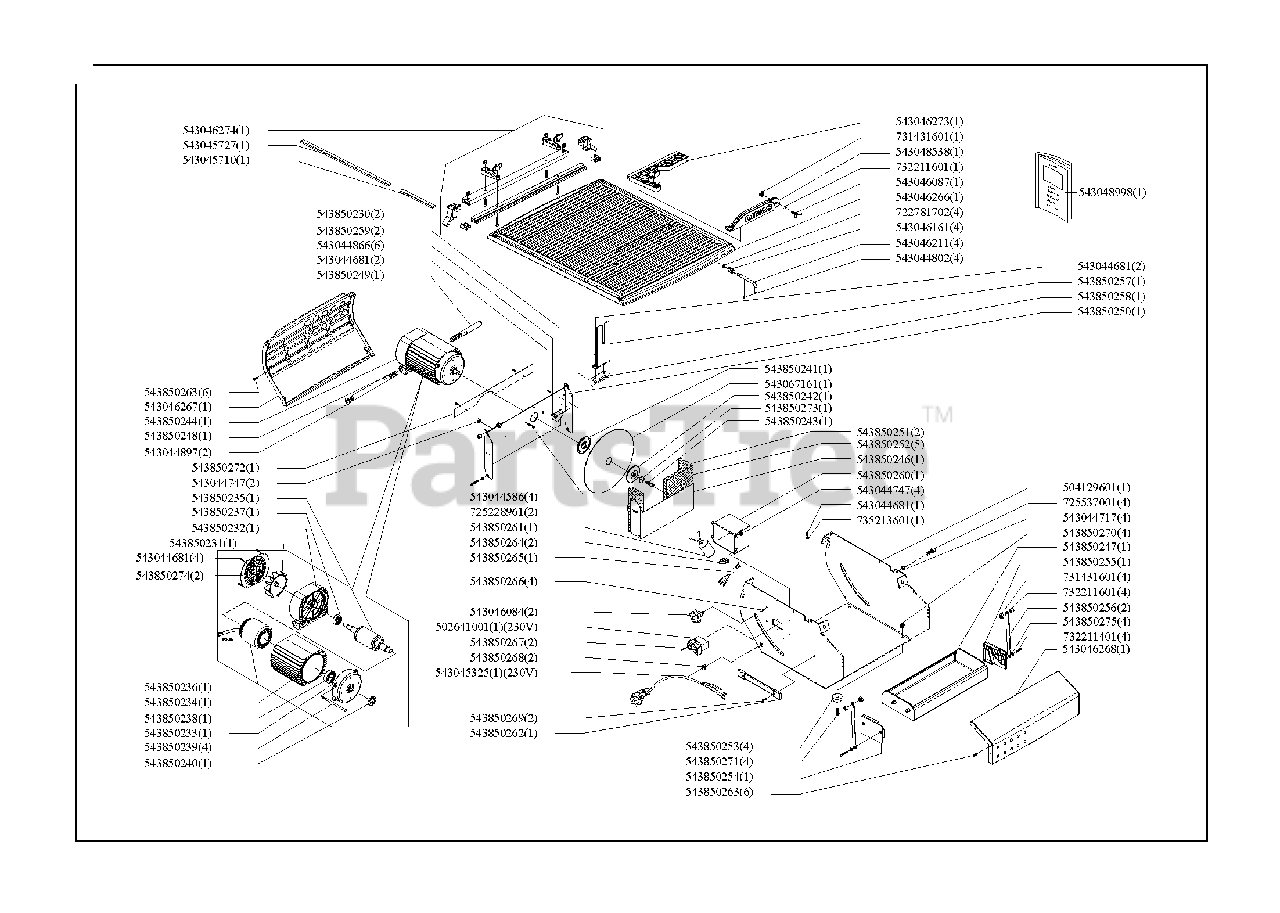

PRODUCT COMPLETE Parts Diagram

  • Title

502641001

Husqvarna Construction 502 64 10-01

SWITCH

$

$

Not available

504129601

Husqvarna Construction 504 12 96-01

FRAME

$

$

Not available

543044586

Husqvarna Construction 543 04 45-86

VIS TH 8/8 5X16 BICHROM/

$

$

Not available

543044681

Husqvarna Construction 543 04 46-81

VIS TOLE T CBL CRUCIFORM/3.9X9

$

$

Not available

543044681

Husqvarna Construction 543 04 46-81

VIS TOLE T CBL CRUCIFORM/3.9X9

$

$

Not available

543044681

Husqvarna Construction 543 04 46-81

VIS TOLE T CBL CRUCIFORM/3.9X9

$

$

Not available

543044681

Husqvarna Construction 543 04 46-81

VIS TOLE T CBL CRUCIFORM/3.9X9

$

$

Not available

543044717

Husqvarna Construction 543 04 47-17

WASHER

$

$

Not available

543044747

Husqvarna Construction 543 04 47-47

ECROU HH 4 BICHRO/

$

$

Not available

543044747

Husqvarna Construction 543 04 47-47

ECROU HH 4 BICHRO/

$

$

Not available

543044802

Husqvarna Construction 543 04 48-02

GOUPILLE ELASTIQUE 3X15/

$

$

Not available

543044866

Husqvarna Construction 543 04 48-66

RIVET 4*21.5 BF 01 0523/

$

$

Not available

543044897

Husqvarna Construction 543 04 48-97

ENTRETOISE 30/10.5/3/

$

$

Not available

543045325

Husqvarna Construction 543 04 53-25

CORDON HO5W-F 3G0.75/1.6M AS

$

$

Not available

543045710

Husqvarna Construction 543 04 57-10

REGLET GAUCHE L 170/

$

$

Not available

543045727

Husqvarna Construction 543 04 57-27

REGLET AVANT 320 12"1/2/"

$

$

Not available

543046084

Husqvarna Construction 543 04 60-84

STEERING WHEEL

$7.88

$

Usually ships in 3-10 days

0

543046087

Husqvarna Construction 543 04 60-87

GALET GP/34 6X15 6310055/

$

$

Not available

543046161

Husqvarna Construction 543 04 61-61

RESSORT N' 11344/

$

$

Not available

543046211

Husqvarna Construction 543 04 62-11

AXE

$

$

Not available

543046266

Husqvarna Construction 543 04 62-66

TABLE/

$

$

Not available

543046267

Husqvarna Construction 543 04 62-67

COUVERCLE MOTEUR/

$

$

Not available

543046268

Husqvarna Construction 543 04 62-68

COUVERCLE AVANT/

$

$

Not available

543046273

Husqvarna Construction 543 04 62-73

GUIDE

$

$

Not available

543046274

Husqvarna Construction 543 04 62-74

GUIDE

$

$

Not available

543048538

Husqvarna Construction 543 04 85-38

CARTER BLADE TS230F/

$

$

Not available

543048998

Husqvarna Construction 543 04 89-98

NOTICE TS230F/

$

$

Not available

543067161

Husqvarna Construction 543 06 71-61

DIAMOND BLADE

$

$

Not available

543850230

Husqvarna Construction 543 85 02-30

CLIP

$

$

Not available

543850231

Husqvarna Construction 543 85 02-31

FAN

$

$

Not available

543850232

Husqvarna Construction 543 85 02-32

MOTOR TAIL COVER

$

$

Not available

543850233

Husqvarna Construction 543 85 02-33

MOTOR FRONT COVER

$

$

Not available

543850234

Husqvarna Construction 543 85 02-34

MOTOR HOUSING

$

$

Not available

543850235

Husqvarna Construction 543 85 02-35

ROTOR

$

$

Not available

543850236

Husqvarna Construction 543 85 02-36

STATOR

$

$

Not available

543850237

Husqvarna Construction 543 85 02-37

MOTOR REAR BEARING

$

$

Not available

543850238

Husqvarna Construction 543 85 02-38

MOTOR FRONT BEARING

$

$

Not available

543850239

Husqvarna Construction 543 85 02-39

STATOR SCREWS

$

$

Not available

543850240

Husqvarna Construction 543 85 02-40

SEAL

$

$

Not available

543850241

Husqvarna Construction 543 85 02-41

FLANGE

$

$

Not available

543850242

Husqvarna Construction 543 85 02-42

FLANGE

$

$

Not available

543850243

Husqvarna Construction 543 85 02-43

BLADE FIXING BOLT

$

$

Not available

543850244

Husqvarna Construction 543 85 02-44

COMPLETE MOTOR UNIT230 V

$

$

Not available

543850244

Husqvarna Construction 543 85 04-30

COMPLETE MOTORUNIT(110V)115V

$

$

Currently unavailable

543850246

Husqvarna Construction 543 85 02-46

LOWER BLADE SHROUD

$

$

Not available

543850247

Husqvarna Construction 543 85 02-47

TRAY

$

$

Not available

543850248

Husqvarna Construction 543 85 02-48

MOTOR SWIVEL AXLE-LONG

$

$

Not available

543850249

Husqvarna Construction 543 85 02-49

MOTOR SWIVEL AXLE-SHORT

$

$

Not available

543850250

Husqvarna Construction 543 85 02-50

FRONT MOTOR SUPPORT

$

$

Not available

543850251

Husqvarna Construction 543 85 02-51

TURF MUD GUARD-LARGE

$

$

Not available

543850252

Husqvarna Construction 543 85 02-52

TURF MUD GUARD-SMALL

$

$

Not available

543850253

Husqvarna Construction 543 85 02-53

FOOT PAD

$

$

Not available

543850254

Husqvarna Construction 543 85 02-54

WATER TRAY SUPPORT-LEFT

$

$

Not available

543850255

Husqvarna Construction 543 85 02-55

WATER TRAY SUPPORT-RIGHT

$

$

Not available

543850256

Husqvarna Construction 543 85 02-56

CONNECTING ROD

$

$

Not available

543850257

Husqvarna Construction 543 85 02-57

SEPARATOR

$

$

Not available

543850258

Husqvarna Construction 543 85 02-58

SEPARATOR SUPPORTBRACKET

$

$

Not available

543850259

Husqvarna Construction 543 85 02-59

DEFLECTOR

$

$

Not available

543850260

Husqvarna Construction 543 85 02-60

SWITCH BOX

$

$

Not available

543850261

Husqvarna Construction 543 85 02-61

CONDENSATOR

$

$

Not available

543850262

Husqvarna Construction 543 85 02-62

STRAP

$

$

Not available

543850263

Husqvarna Construction 543 85 02-63

AUTO THREADING SCREW

$

$

Not available

543850263

Husqvarna Construction 543 85 02-63

AUTO THREADING SCREW

$

$

Not available

543850264

Husqvarna Construction 543 85 02-64

CONNECTOR BLOCK

$

$

Not available

543850265

Husqvarna Construction 543 85 02-65

LEAD WIRE

$

$

Not available

543850266

Husqvarna Construction 543 85 02-66

SCREW

$

$

Not available

543850267

Husqvarna Construction 543 85 02-67

FLAT HEAD SCREW

$

$

Not available

543850268

Husqvarna Construction 543 85 02-68

GLAND PACKING

$

$

Not available

543850269

Husqvarna Construction 543 85 02-69

FLAT HEAD SCREW

$

$

Not available

543850270

Husqvarna Construction 543 85 02-70

NYLOC NUT

$

$

Not available

543850271

Husqvarna Construction 543 85 02-71

SCREW

$

$

Not available

543850272

Husqvarna Construction 543 85 02-72

SPLASH SHIELD STRIP

$

$

Not available

543850273

Husqvarna Construction 543 85 02-73

WASHER

$

$

Not available

543850274

Husqvarna Construction 543 85 02-74

PLATE

$

$

Not available

543850275

Husqvarna Construction 543 85 02-75

WASHER

$

$

Not available

722781702

Husqvarna Construction 722 78 17-02

BLIND RIVET

$

$

Not available

725228961

Husqvarna Construction 725 22 89-61

SCREW EHHF

$

$

Not available

725537001

Husqvarna 725 53 70-01

SCREW IHSCM
(Superseded to 725537055)

$10.99

$

In Stock, Qty 20+

0

731431601

Husqvarna 731 43 16-01

HEXAGON THIN NUT
(Superseded to 731231655)

$5.99

$

In Stock, Qty 19

0

731431601

Husqvarna 731 43 16-01

HEXAGON THIN NUT
(Superseded to 731231655)

$5.99

$

In Stock, Qty 19

0

732211401

Husqvarna 732 21 14-01

LOCK NUT

$6.49

$

In Stock, Qty 8

0

732211601

Husqvarna 732 21 16-01

NUT

$4.99

$

Usually ships in 3-10 days

0

732211601

Husqvarna 732 21 16-01

NUT

$4.99

$

Usually ships in 3-10 days

0

735213601

Husqvarna Construction 735 21 36-01

LOCKWASHER

$

$

Not available
