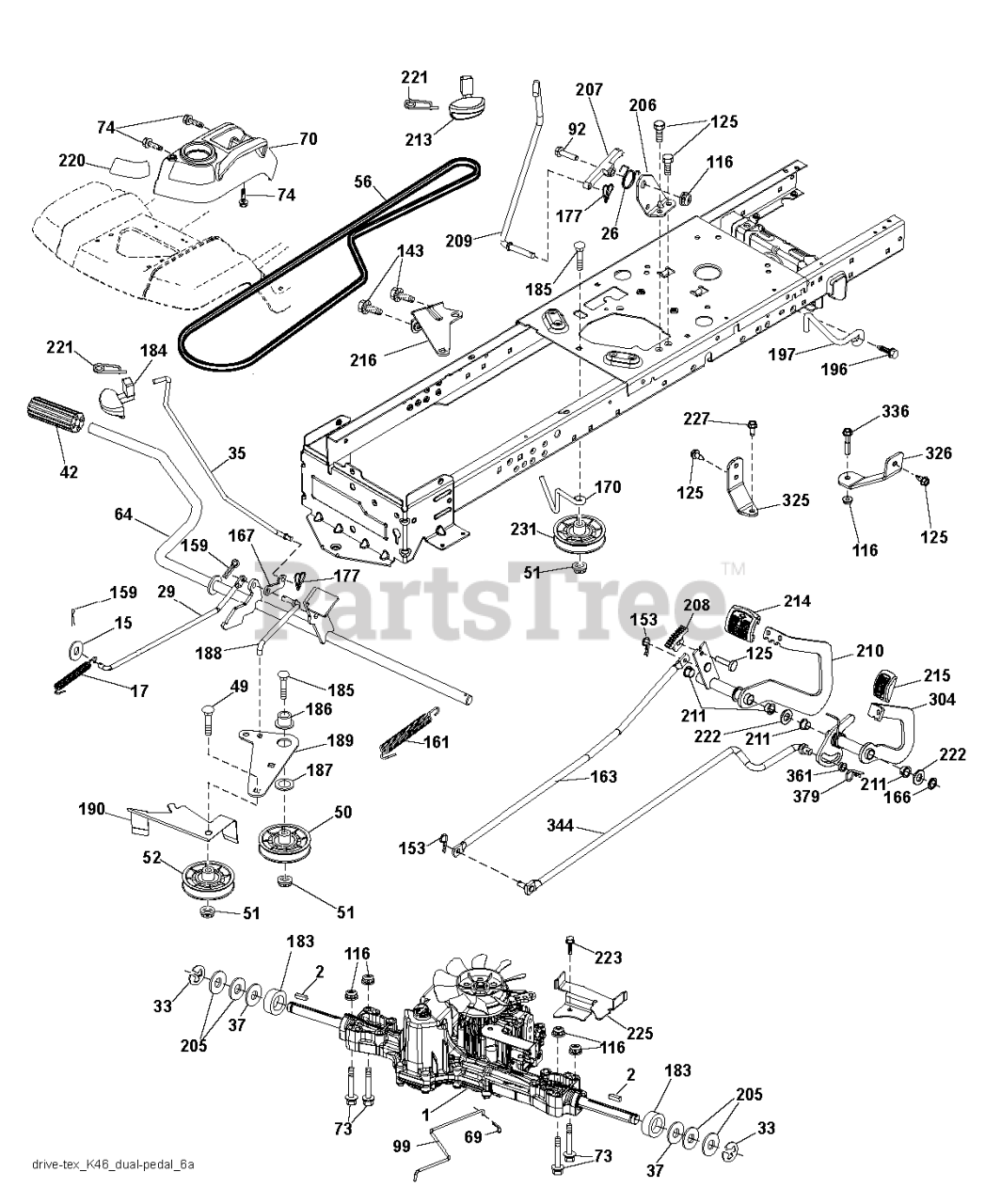

TS 242 D - Husqvarna 42" Garden Tractor (Original) DRIVE Parts Diagram

42" Garden Tractor

DRIVE Parts Diagram

  • Title

344

Husqvarna 597647301

Rods

$36.99

$

Usually ships in 3-10 days

0

210

Husqvarna 588987202

Pedals

Note: For 96041044200

$26.99

$

Usually ships in 3-10 days

0

49

Husqvarna 596136201

Bolts

$3.99

$

In Stock, Qty 6

0

29

Husqvarna 532403806

ROD.BRAKE.K46

$31.99

$

In Stock, only 1 left!

0

216

Husqvarna 532196131

BRACKET.PULLEY.IDLER.W/TEX

Note: For 96041044700

$7.49

$

In Stock, only 2 left!

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

74

Husqvarna 596134101

Screws

$3.99

$

In Stock, only 3 left!

0

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

196

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 11

0

42

Husqvarna 532008883

PEDAL COVER
(Superseded to 510089501)

$6.49

$

In Stock, Qty 14

0

17

Husqvarna 532413678

SPRING.BRAKE.K46.GREEN

$7.49

$

In Stock, Qty 8

0

161

Husqvarna 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 10

0

304

Husqvarna 588987302

Pedals

$22.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

In Stock, Qty 5

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 1 left!

0

92

Husqvarna 595305701

Screws

$3.99

$

In Stock, only 4 left!

0

15

Husqvarna 596565301

WASHER PLAIN WASHER 3/8 X 0.08

Note: For 96041044200

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 583864502

Rods

$5.99

$

Usually ships in 3-10 days

0

215

Husqvarna 596908301

Pedals

Note: For 96041044200

$4.99

$

Usually ships in 3-10 days

0

163

Husqvarna 588566301

Rods

Note: For 96041044200

$20.99

$

Usually ships in 3-10 days

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

99

Husqvarna 582404501

ARM.PIVOTING.TCRD.GEN2.5.BAGGE

$6.49

$

Usually ships in 3-10 days

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 9

0

183

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

336

Husqvarna 587259602

Bolts

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 501051401

TRANSAXLE.K46CR.PCH.ALD

Note: TRANSAXLE TUFFTORQ K46 CR (501051401)

$970.99

$

Usually ships in 3-10 days

0

188

Husqvarna 582217001

LINK.CLUTCH.GROUND DRIVE.LONG
(Superseded to 532194323)

$4.99

$

In Stock, Qty 13

0

26

Husqvarna 532199679

SPRING.RETURN.CRUISE

$6.49

$

Usually ships in 3-10 days

0

361

Husqvarna 597136701

Bushings

$4.99

$

Usually ships in 3-10 days

0

223

Husqvarna 598662601

BOLTS

$2.49

$

Usually ships in 3-10 days

0

325

Husqvarna 586431202

TORQUE.STRAP.K46.LT.LH
(Superseded to 586431203)

Note: For 96041044200

$3.49

$

Usually ships in 3-10 days

0

208

Husqvarna 596564101

Gears

$3.99

$

In Stock, Qty 5

0

207

Husqvarna 587031402

Latch

$3.49

$

In Stock, only 1 left!

0

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, Qty 18

0

231

Husqvarna 532407287

IDLER.V-GROOVE.1.688.OFFSET

$18.99

$

In Stock, Qty 20+

0

205

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

197

Husqvarna 587402001

BRKT.42.FCS.CLUTCH.ANTIROTATIO

Note: For 96041044200

$5.99

$

Usually ships in 3-10 days

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

69

Husqvarna 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

$6.49

$

In Stock, only 2 left!

0

215

Husqvarna 586606502

PEDAL.COVER.REVERSE.CRD.X428BK

Note: For 96041044700

$10.99

$

In Stock, only 1 left!

0

73

Husqvarna 596136501

Bolts

$3.99

$

In Stock, only 4 left!

0

222

Husqvarna 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 3 left!

0

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 6

0

33

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 5

0

213

Husqvarna 532403119

KNOB.CONTROL.CRUSIE.HU

$12.99

$

In Stock, only 1 left!

0

225

Husqvarna 532403319

KEEPER.BELT.TRANSAXLE.K46

$3.49

$

In Stock, only 2 left!

0

64

Husqvarna 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

211

Husqvarna 532120183

BEARING.NYLON

$6.49

$

In Stock, only 3 left!

0

170

Husqvarna 532413430

KEEPER.CENTER SPAN.1.688

Note: For 96041044200

$7.49

$

Usually ships in 3-10 days

0

187

Husqvarna 596135501

Washers

$3.99

$

In Stock, Qty 17

0

227

Husqvarna 596135901

Bolts

$2.49

$

Usually ships in 3-10 days

0

185

Husqvarna 872110622

BOLT

$3.99

$

In Stock, Qty 5

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

Note: For 96041044700

$3.99

$

In Stock, Qty 20+

0

177

Husqvarna 596029401

GSPW Retainers

Note: For 96041044700

$3.99

$

In Stock, Qty 13

0

325

Husqvarna 585668502

BRACKET.TRQ.STP.46.20".TIRE.LH

Note: For 96041044700

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

Usually ships in 3-10 days

0

326

Husqvarna 586001102

BRCKT.PNT.TRQ.STP.46.18TIRE.RH

Note: For 96041044200

$4.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532448596

BRACKET.MOUNT.CRUISE.LATCH

$4.99

$

In Stock, only 1 left!

0

143

Husqvarna 596030701

Screws

Note: For 96041044700

$3.99

$

In Stock, only 2 left!

0

70

Husqvarna 532439661

CONSOLE.ASM.RH.GT.FC.HUSQ

$120.99

$

Usually ships in 3-10 days

0

186

Husqvarna 532194321

SPACER.RETAINER

$7.49

$

Usually ships in 3-10 days

0

116

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

379

Husqvarna 596580601

Pins

$3.99

$

In Stock, Qty 14

0

209

Husqvarna 596869801

Rods

$4.99

$

Usually ships in 3-10 days

0

220

Husqvarna 532198908

REFLECTOR.RH.TEX GT

$17.99

$

In Stock, only 1 left!

0

153

Husqvarna 532004497

RETAINER M

$10.99

$

In Stock, Qty 19

0

56

Husqvarna 592855201

Belts

$31.99

$

In Stock, Qty 20+

0

210

Husqvarna 532400980

ROCKER.ASM.PEDAL.CONTR

Note: For 96041044700

$34.99

$

In Stock, only 1 left!

0

177

Husqvarna 587225301

PIN COTTER;LOCKING;BOWTIE;1IN

Note: For 96041044200

$4.99

$

In Stock, only 3 left!

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

197

Husqvarna 585658602

Stop

Note: For 96041044700

$3.99

$

In Stock, only 1 left!

0

159

Husqvarna 596029501

Pins

$3.99

$

In Stock, only 1 left!

0

170

Husqvarna 532194322

KEEPER.V-IDLER.CENTER.

Note: For 96041044700

$7.49

$

In Stock, Qty 9

0

163

Husqvarna 593861001

Rods

Note: For 96041044700

$17.99

$

In Stock, only 4 left!

0

184

Husqvarna 587653701

HANDLE.PARKING.BRAKE.H (BLK)
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

326

Husqvarna 585670802

BRCKT.PNT.TRQ.STP.46.20TIRE.RH

Note: For 96041044700

$

$

Not available
