TS 242 D - Husqvarna 42" Garden Tractor (Original) ENGINE Parts Diagram

42" Garden Tractor

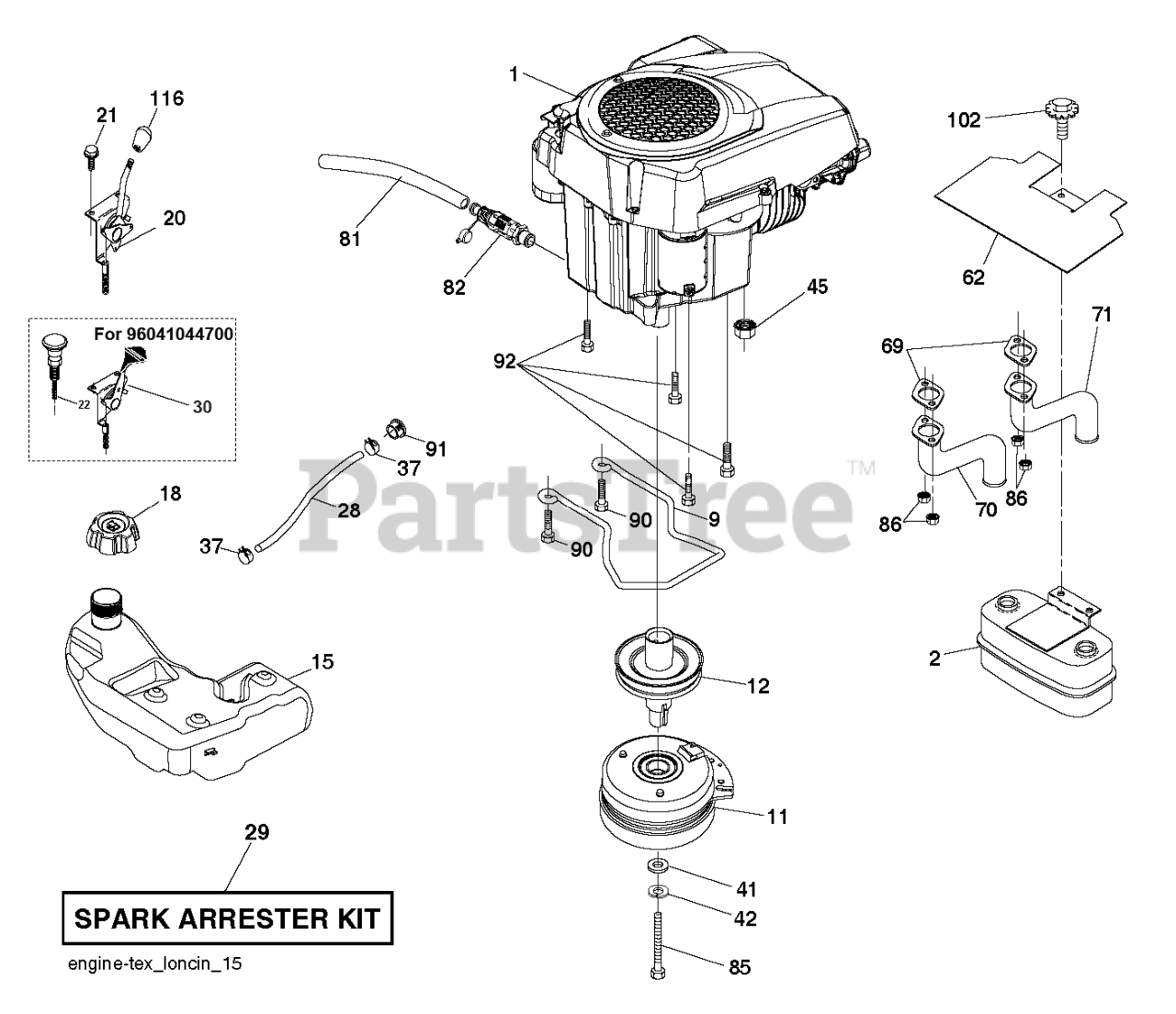

ENGINE Parts Diagram

  • Title

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

11

Husqvarna 587255001

CLUTCH. 5.0 PD. 2.5 OFFSET

Note: For 96041044200

$359.99

$

In Stock, only 1 left!

0

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck. For 96041044700

$23.99

$

In Stock, only 4 left!

0

71

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

Note: For 96041044700

$33.99

$

In Stock, only 2 left!

0

28

Husqvarna 587044860

HOSE.1/4".LOW.PERM.FUEL.LN.60"

Note: For 96041044700

$27.99

$

Usually ships in 3-10 days

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$71.99

$

In Stock, Qty 17

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

Note: For 96041044200

$27.99

$

In Stock, only 2 left!

0

85

Husqvarna 581332804

CLUTCH BOLT7/16-20X3.5 GR524HR

Note: For 96041044700

$7.49

$

In Stock, Qty 11

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.99

$

In Stock, Qty 5

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

Note: For 96041044200

$14.99

$

In Stock, only 2 left!

0

15

Husqvarna 532193499

TANK.FUEL.4GAL

Note: Fits 2.75" filler neck. For 96041044200

$96.99

$

In Stock, only 1 left!

0

1

Husqvarna 598632101

NEEDS DESCRIPTION

Note: Engine Husqvarna Model No. HV 764cc. Engine IPL available separately.

$

$

Currently unavailable

69

Husqvarna 532178151

GASKET

Note: For 96041044700

$2.49

$

In Stock, Qty 20+

0

18

Husqvarna 584248702

CAP.ASSY.FUEL.3".N-EPA.GRY.498

Note: Fits 2.75" filler neck. For 96041044200

$21.99

$

In Stock, only 3 left!

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 10

0

12

Husqvarna 586899601

PULLEY.EXTENDED.SHAFT.GROUND

Note: For 96041044200

$39.99

$

In Stock, only 1 left!

0

85

Husqvarna 501606701

BOLT.HEX.7/16-20X5.GR5.GREEN

Note: For 96041044200

$7.49

$

Usually ships in 3-10 days

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

41

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 14

0

11

Husqvarna 587241501

CLUTCH.OGURA.4.4PD.GT1.5-EH13V

Note: For 96041044700

$250.99

$

Usually ships in 3-10 days

0

18

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$29.99

$

Usually ships in 3-10 days

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 9

0

20

Husqvarna 586219601

CONTROL.THROTTLE/CHOKE.PRO.45

$71.99

$

In Stock, only 2 left!

0

45

Husqvarna 596133601

Hardware

Note: For 96041044700

$3.99

$

In Stock, only 2 left!

0

69

Husqvarna 597905101

NEEDS DESCRIPTION

Note: For 96041044200

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

15

Husqvarna 532438027

FUEL.TANK.ASM.3.0GAL.REAR.2019
(Superseded to 532438031)

Note: Fits 2.75" filler neck. For 96041044700

$

$

Not available

71

Husqvarna 597889001

NEEDS DESCRIPTION

Note: For 96041044200

$

$

Not available

22

Husqvarna 532189541

CONTROL, CHOKE
(Superseded to 532187768)

Note: For 96041044700

$37.99

$

In Stock, only 1 left!

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, only 2 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

Note: For 96041044700

$71.99

$

Usually ships in 3-10 days

0

45

Husqvarna 593356401

NUT HEXAGON WITH FLANGE, SERRA

Note: For 96041044200

$2.49

$

Usually ships in 3-10 days

0

70

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

Note: For 96041044700

$33.99

$

In Stock, only 4 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 20+

0

30

Husqvarna 532412165

CONTROL.THROTTLE.COBRA.BLACK

Note: For 96041044700

$35.99

$

In Stock, only 1 left!

0

9

Husqvarna 501832601

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

Note: For 96041044700

$14.99

$

In Stock, only 2 left!

0

9

Husqvarna 596501502

Keepers

Note: For 96041044200

$14.99

$

In Stock, only 2 left!

0

70

Husqvarna 597888901

NEEDS DESCRIPTION

Note: For 96041044200

$

$

Not available
