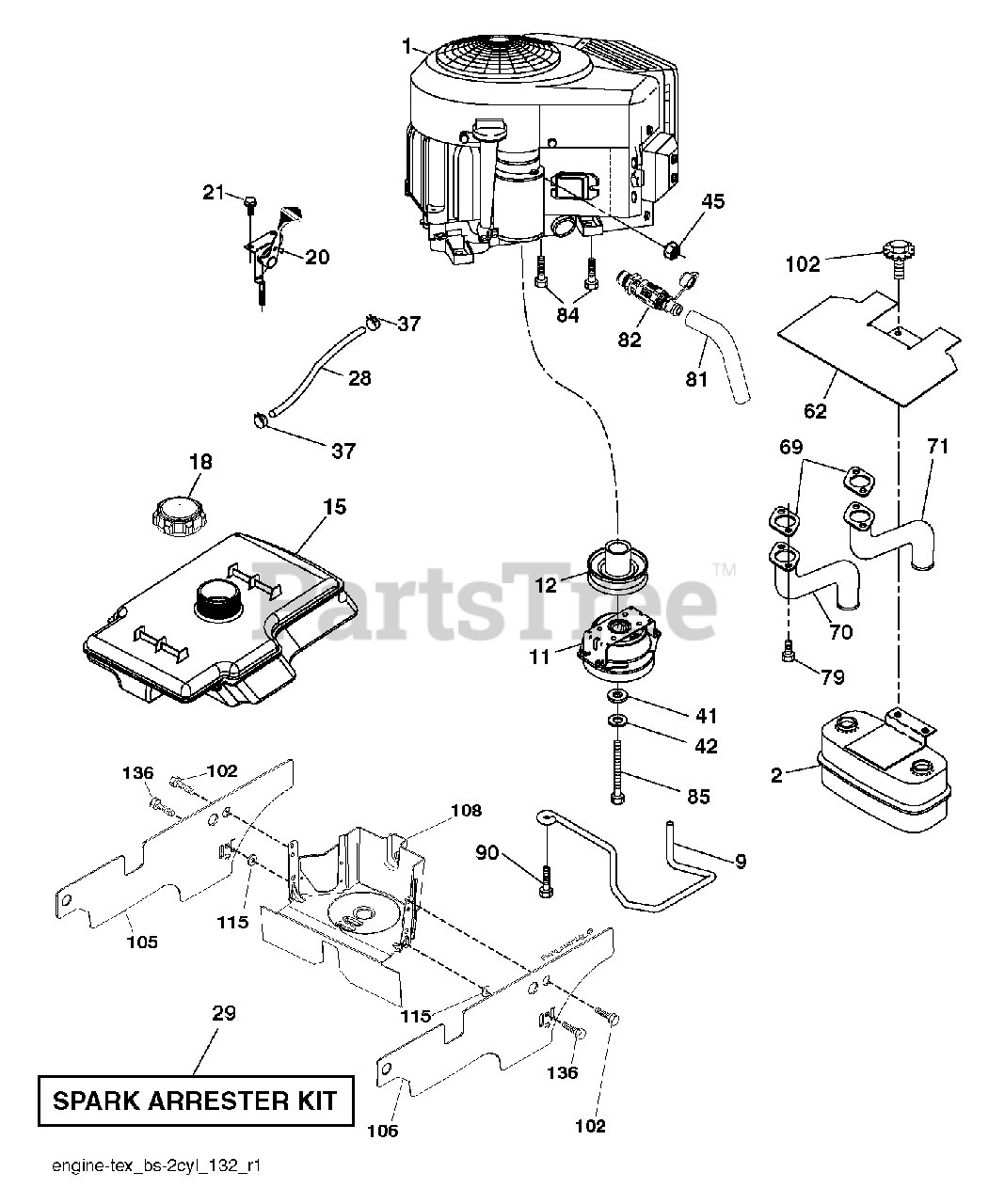

TS 243 (960410379-01) - Husqvarna 42" Garden Tractor (2015-07) ENGINE Parts Diagram

42" Garden Tractor

ENGINE Parts Diagram

  • Title

1

000000000

Note: ENGINE B S MODEL NO 40S777-0003-B1 (587525901)

$

$

Not available

2

Husqvarna 532445962

MUFFLER.ASM.TWN.EXTNDED.DFLCTR
(Superseded to 589818701)

$44.99

$

Usually ships in 3-10 days

0

9

Husqvarna 584908001

KEEPER BELT ENGINE
(Superseded to 501832602)

$

$

Not available

11

Husqvarna 587241501

CLUTCH.OGURA.4.4PD.GT1.5-EH13V

$278.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

In Stock, only 1 left!

0

15

Husqvarna 532418179

FUEL TANK
(Superseded to 583462301)

$

$

Not available

18

Husqvarna 584248701

CAP.ASSY.FUEL.3".N-EPA.BLK.428

$12.99

$

Usually ships in 3-10 days

0

20

Husqvarna 587242501

THROTTLE.COBRA.38"READSTART.BK

$

$

Not available

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

28

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$17.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 19

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

$44.99

$

In Stock, only 4 left!

0

71

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

$31.99

$

In Stock, only 3 left!

0

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$4.99

$

In Stock, Qty 18

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, Qty 13

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

85

Husqvarna 581332804

CLUTCH BOLT7/16-20X3.5 GR524HR

$4.99

$

In Stock, only 3 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 13

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

105

Husqvarna 532410528

SHIELD.SIDE.LH.3842"TEX FRENCH

$

$

Not available

106

Husqvarna 532410529

SHIELD.SIDE.RH.3842"TEX FRENCH

$

$

Not available

108

Husqvarna 532421794

ENGINE COVER
(Superseded to 583391801)

$

$

Not available

115

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

136

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0
