TS 246 (960410401-00) - Husqvarna 46" Garden Tractor (2017-01) ENGINE Parts Diagram

46" Garden Tractor

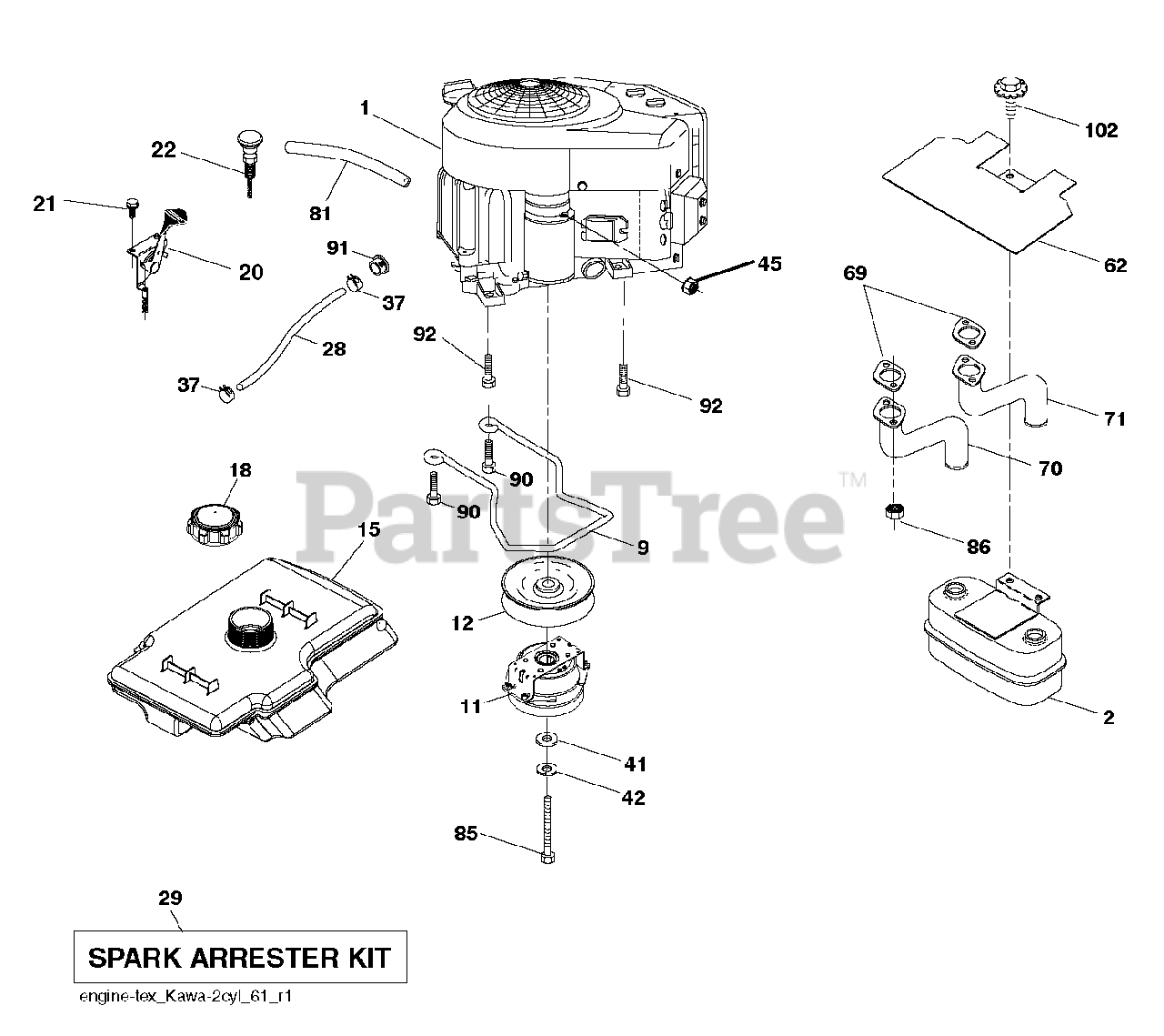

ENGINE Parts Diagram

  • Title

1

000000000

Note: ENGINE KAWA MODEL NO FR651V-AS28 (581411101)

$

$

Not available

2

Husqvarna 532445962

MUFFLER.ASM.TWN.EXTNDED.DFLCTR
(Superseded to 589818702)

$56.99

$

In Stock, Qty 17

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431

$

$

Not available

11

Husqvarna 587241601

CLUTCH.OGURA.5.0PD.GT1.5A-EH07

$319.99

$

In Stock, Qty 9

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532418179

FUEL TANK
(Superseded to 583462301)

$

$

Not available

18

Husqvarna 584248701

CAP.ASSY.FUEL.3".N-EPA.BLK.428

$20.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532412165

CONTROL.THROTTLE.COBRA.BLACK

$44.99

$

In Stock, only 2 left!

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

22

Husqvarna 532189541

CONTROL, CHOKE
(Superseded to 532187768)

$37.99

$

In Stock, only 1 left!

0

28

Husqvarna 587044660

HOSE.14.FUEL.LINE.60.
(Superseded to 587044860)

$26.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 6

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 20+

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

70

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

$37.99

$

In Stock, only 2 left!

0

71

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

$37.99

$

In Stock, only 3 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 16

0

85

Husqvarna 501606601

BOLT.HEX.7/16-20X3.75.GR5.RED

$4.99

$

In Stock, Qty 14

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, Qty 7

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

Usually ships in 3-10 days

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0
