TS 348 XD (960410404-00) - Husqvarna 48" Garden Tractor (2018-06) SEAT Parts Diagram

48" Garden Tractor

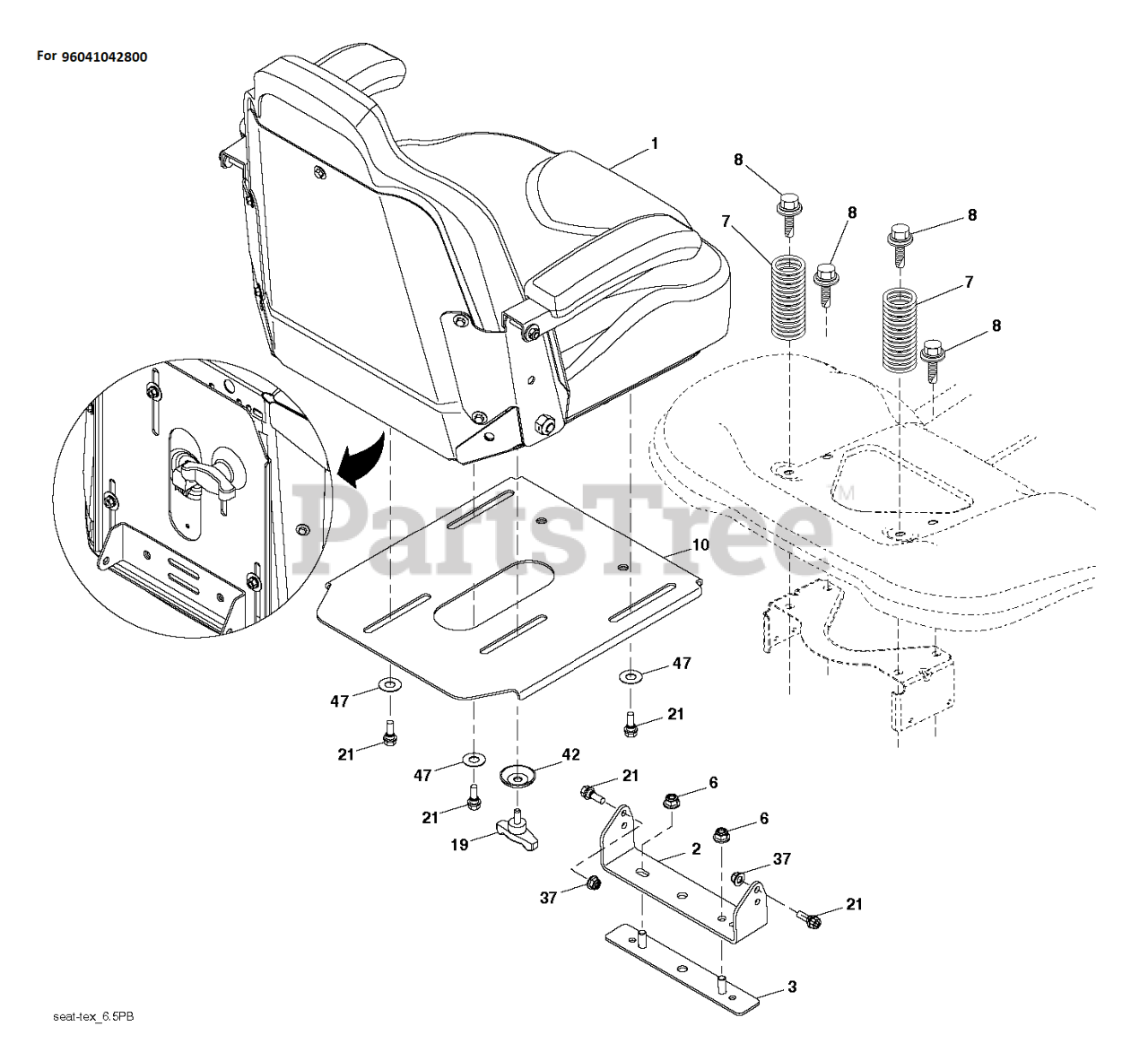

SEAT Parts Diagram

  • Title

47

Husqvarna 590341101

NEEDS DESCRIPTION

$

$

Currently unavailable

2

Husqvarna 590336602

BRACKET PIVOT FENDER SEAT TRAC

$21.99

$

In Stock, only 1 left!

0

6

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 14

0

42

Husqvarna 532199371

WASHER.CUP.SEAT.
(Superseded to 529846501)

$3.99

$

In Stock, Qty 13

0

3

Husqvarna 590777602

BRACKET ASSEMBLY REINFORCEMENT

$11.99

$

Usually ships in 3-10 days

0

7

Husqvarna 590812301

SPRING COMPRESSION SEAT 300 SE

$9.99

$

In Stock, only 2 left!

0

21

Husqvarna 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$4.99

$

In Stock, Qty 6

0

37

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

1

Husqvarna 590337301

SEAT TRACTOR MZ
(Superseded to 590337305)

$778.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, Qty 8

0

19

Husqvarna 590691501

KNOB SEAT 5/16-18X3/4

$9.99

$

In Stock, Qty 8

0

10

Husqvarna 590481702

BRACKET ASM PLATE & BRACKET SE
(Superseded to 590481704)

$119.99

$

Usually ships in 3-10 days

0
