TS 348 XD (960410425-00) - Husqvarna 48" Garden Tractor (2018-04) CHASSIS / FRAME Parts Diagram

48" Garden Tractor

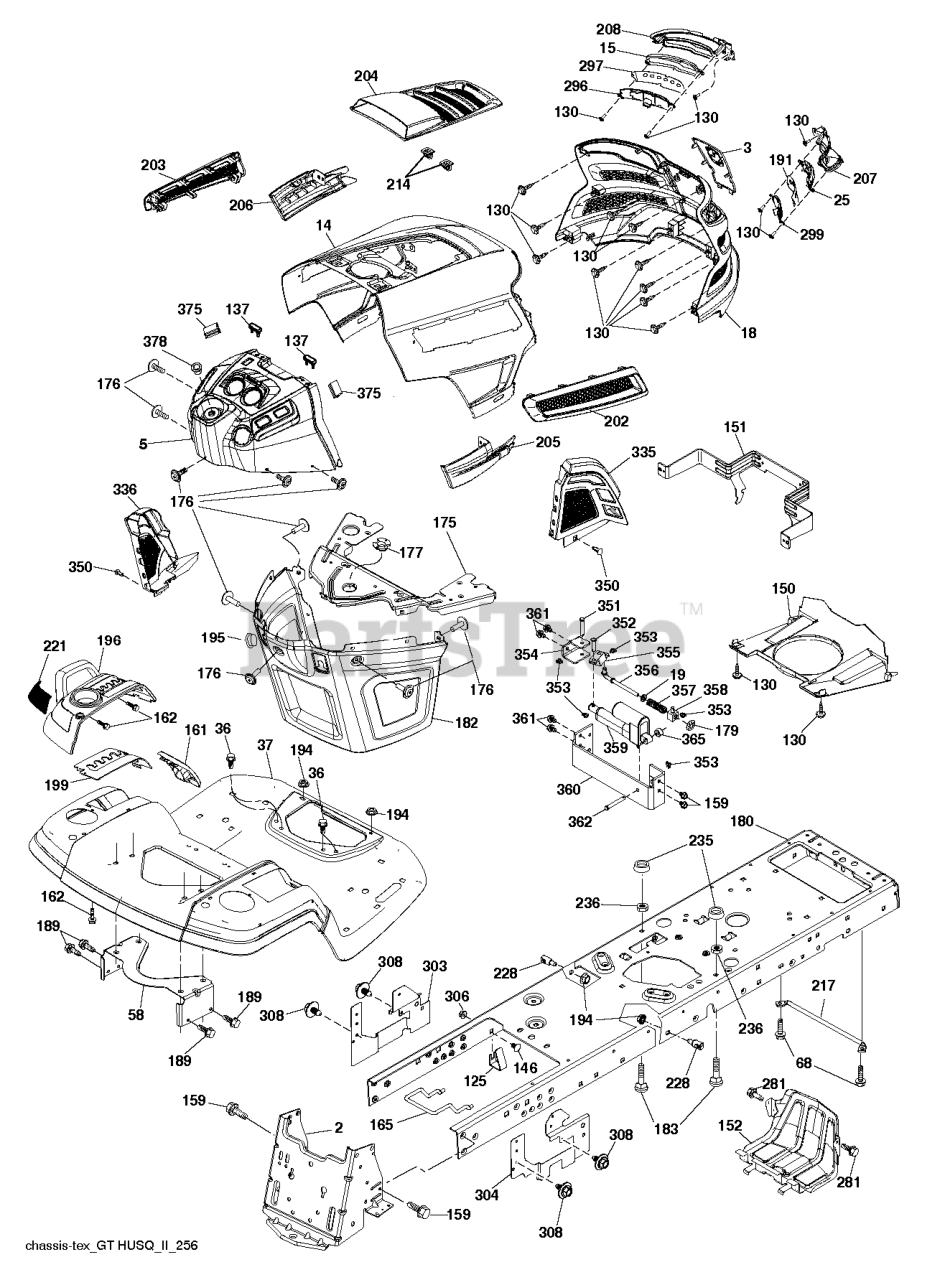

CHASSIS / FRAME Parts Diagram

  • Title

297

Husqvarna 586182901

INSERT REFECT LH

$3.99

$

Usually ships in 3-10 days

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

Usually ships in 3-10 days

0

360

Husqvarna 532448618

BRACKET.ACUATOR
(Superseded to 583597501)

$85.99

$

Usually ships in 3-10 days

0

191

Husqvarna 586182801

INSERT INFLECT.RH

$3.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532198259

PLATE.DECK.LIFT.HUSQVARNA.GT

$26.99

$

Usually ships in 3-10 days

0

195

Husqvarna 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

303

Husqvarna 589008102

SHIELD.LWR.LH.LTGT.NON30

$10.99

$

Usually ships in 3-10 days

0

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 9

0

208

Husqvarna 585420102

BEZEL GT2 LED LH W/ LOWER ATT

Note: LH

$12.99

$

In Stock, only 1 left!

0

354

Husqvarna 532448619

SUPPORT.BELLCRANK
(Superseded to 583597601)

$21.99

$

Usually ships in 3-10 days

0

165

Husqvarna 532194330

SUPPORT.TANK.REAR.B/TE

$12.99

$

Usually ships in 3-10 days

0

204

Husqvarna 532444484

VENT.TOP.ASM.HUSQ.GT2
(Superseded to 587485801)

$18.99

$

Usually ships in 3-10 days

0

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

306

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

203

Husqvarna 532439727

VENT.SIDE.LH.GT.HUSQ.II.498

Note: LH

$17.99

$

In Stock, Qty 13

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

183

Husqvarna 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

304

Husqvarna 589009002

SHIELD.LWR.RH.LTGT.NON30.NOTCH

$10.99

$

Usually ships in 3-10 days

0

335

Husqvarna 532448204

COVER.LOWER.DASH.RH.BLACK

$37.99

$

Usually ships in 3-10 days

0

5

Husqvarna 590740022

DASH.GT2.UPPER.RND.ELD.CP.498
(Superseded to 590748822)

$44.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

125

Husqvarna 581684801

CLIP.FUEL.LINE

$3.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

146

Husqvarna 581857901

BOLT.RDHD.SHT.SQNK.3/8-16X5/8

$6.49

$

Usually ships in 3-10 days

0

365

Husqvarna 532447368

SPACER.NYLON.75" X .4375
(Superseded to 583590601)

$4.99

$

Usually ships in 3-10 days

0

351

Husqvarna 532421734

PIN.CLEVIS.375X2.125

$4.99

$

Usually ships in 3-10 days

0

235

Husqvarna 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532439870

SHIELD.BROWNING.PNT.GT.V2

$12.99

$

In Stock, Qty 20+

0

37

Husqvarna 532441208

FENDER.PNT.TX.GT.CH/FW/DL.HUSQ

$206.99

$

Usually ships in 3-10 days

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

358

Husqvarna 580366601

GUIDE.SWIVEL
(Superseded to 583626401)

$9.49

$

Usually ships in 3-10 days

0

175

Husqvarna 590607702

PLATE.PNT.CROSSMEMBER.HUSQ/PRE

$24.99

$

Usually ships in 3-10 days

0

161

Husqvarna 532439929

CONSOLE.WINDOW.FUEL.HUSQ.GT
(Superseded to 532401826)

$7.49

$

Usually ships in 3-10 days

0

336

Husqvarna 532445309

COVER-LH.LOWER.DASH.GT2.BLACK

$37.99

$

In Stock, Qty 5

0

205

Husqvarna 532439730

SIDE.TRIM.RH.GT.HUSQ.II

Note: RH

$13.99

$

Usually ships in 3-10 days

0

68

Husqvarna 539990858

SCR 5/16-18 X 1/2 SELFTAP ZN

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

362

Husqvarna 532448633

PIN.CLEVIS.(.375 X 2.42)
(Superseded to 583597901)

$3.99

$

Usually ships in 3-10 days

0

356

Husqvarna 532448693

LINK.LOCK.DIFF
(Superseded to 583598601)

$9.99

$

Usually ships in 3-10 days

0

357

Husqvarna 532448684

SPRING.COMPRESSION
(Superseded to 583598501)

$4.99

$

Usually ships in 3-10 days

0

281

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

15

Husqvarna 585420301

LED LIGHT.LH
(Superseded to 585420602)

Note: LH

$169.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$11.99

$

In Stock, Qty 5

0

- -

Husqvarna 532431882

KIT GUARD BRUSH
(Superseded to 505568813)

$147.99

$

In Stock, only 2 left!

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

207

Husqvarna 585420002

BEZEL GT2 LED RH W/ LOWER.ATT

Note: RH

$12.99

$

Usually ships in 3-10 days

0

2

Husqvarna 580434401

DRAWBAR.STGT

$120.99

$

Usually ships in 3-10 days

0

296

Husqvarna 585420501

LED LIGHT.LH

$120.99

$

Usually ships in 3-10 days

0

180

Husqvarna 593346302

CHASSIS LTGT BOLTED PAINTED X4

$109.99

$

Usually ships in 3-10 days

0

359

Husqvarna 584393401

ACTUATOR.ELECTRIC

$338.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532436670

BRACKET.PIVOT.HOOD.GT.HUSQ.II

$54.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532406859

DASH.LOWER.COMMON.12V.ADAPTOR

$87.99

$

Usually ships in 3-10 days

0

25

Husqvarna 585420201

LENS.RH
(Superseded to 585420602)

Note: RH

$169.99

$

Usually ships in 3-10 days

0

352

Husqvarna 532448634

PIN.CLEVIS.(.375 X 1.25)
(Superseded to 583598001)

$3.99

$

In Stock, only 1 left!

0

361

Husqvarna 817490610

SCREW LT.3/8-46X5/8

$4.99

$

Usually ships in 3-10 days

0

350

Husqvarna 532445143

CLIP.X-MAS.TREE

$4.99

$

In Stock, Qty 20+

0

177

Husqvarna 532195228

BUSHING STEERING

$4.99

$

In Stock, Qty 11

0

58

Husqvarna 532194314

BRKT.SUPPORT.FNDR/TANK

$27.99

$

Usually ships in 3-10 days

0

353

Husqvarna 532178062

CLIP RETAINER

$4.99

$

In Stock, only 1 left!

0

130

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

196

Husqvarna 532439674

CONSOLE.ASM.DECKLIFT.HUSQGT.DL

$112.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

Usually ships in 3-10 days

0

375

Husqvarna 586908201

BUMPER CLIP-ON. DASH 1"

$4.99

$

Usually ships in 3-10 days

0

221

Husqvarna 532198909

REFLECTOR.LH.TEX GT HU

Note: LH

$17.99

$

In Stock, only 3 left!

0

378

Husqvarna 590849801

BUSHING FLANGE; PLASTIC

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532444481

APPLIQUE.SUBASM.GT.HUSQ.II

$40.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532439729

SIDE.TRIM.LH.GT.HUSQ.II.GRAY

Note: LH

$13.99

$

In Stock, only 2 left!

0

14

Husqvarna 532441177

HOOD.ASM.HUSQVARNA.GT.TEX.ORAN
(Superseded to 587483301)

$80.99

$

Usually ships in 3-10 days

0

355

Husqvarna 532448636

BELLCRANK.PIVOT.LOCK.DIFF
(Superseded to 583598101)

$24.99

$

Usually ships in 3-10 days

0

299

Husqvarna 585420401

LED LIGHT.RH

$120.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532439774

AIR.DUCT.GTV.BLACK

$53.99

$

Usually ships in 3-10 days

0

308

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

18

Husqvarna 587523401

GRILLE SUBASM.GT.II.LOW.HDLGHT
(Superseded to 597247201)

$100.99

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

179

Husqvarna 532168937

NUT

$4.99

$

Usually ships in 3-10 days

0

202

Husqvarna 532439728

VENT.SIDE.RH.GT.HUSQ.II.

Note: RH

$17.99

$

In Stock, Qty 7

0
