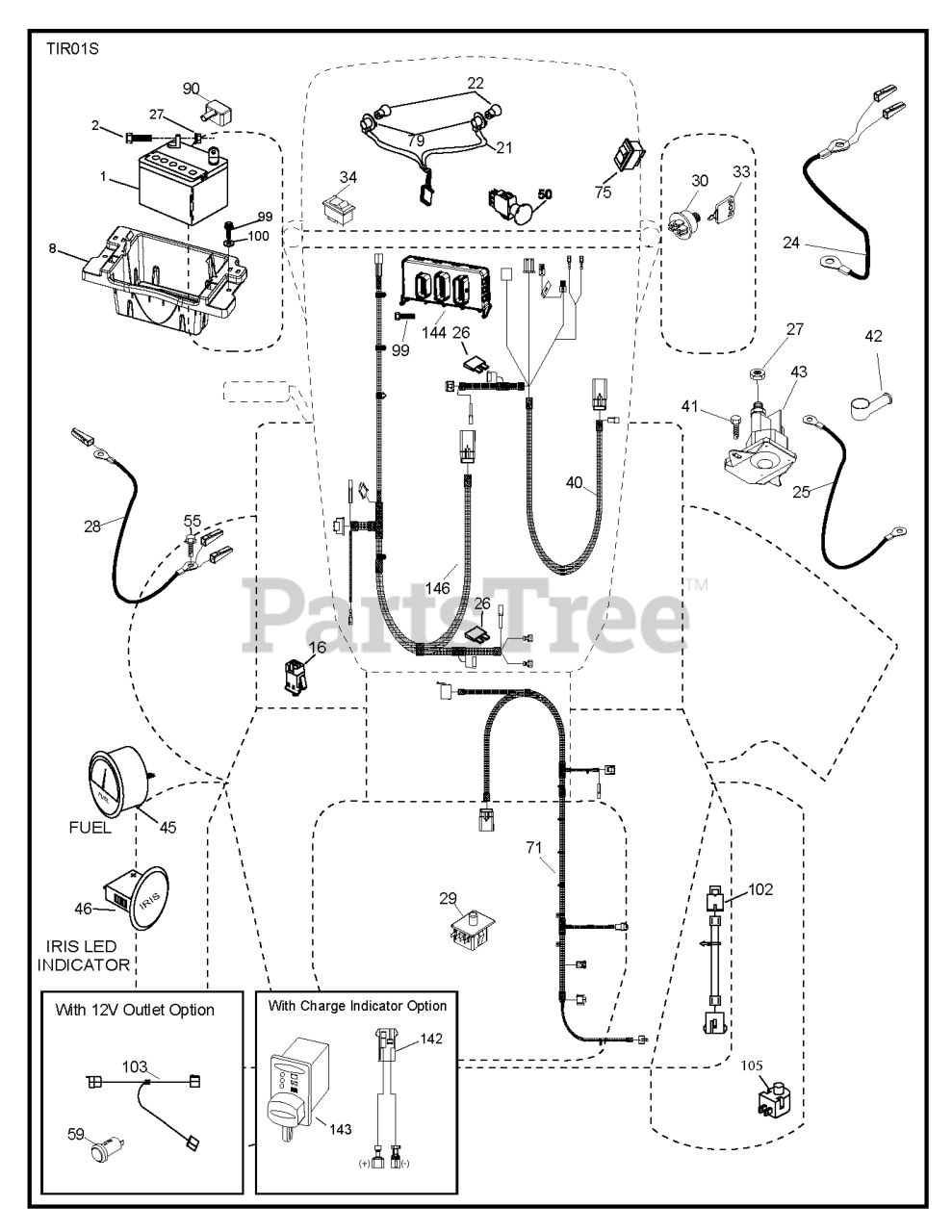

TS 348 XD (960430242-00) - Husqvarna 48" Garden Tractor (2017-09) ELECTRICAL Parts Diagram

48" Garden Tractor

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna 532163465

Battery 12 Volt 25 Amp
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$3.99

$

In Stock, only 2 left!

0

8

Husqvarna 587205101

TRAY.BATTERY BOX.FRONT

$21.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 20+

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

$27.99

$

In Stock, only 3 left!

0

22

Husqvarna 532004152

LIGHTBULB

$5.99

$

In Stock, Qty 20+

0

24

Husqvarna 590223801

PRIMARY CABLE POSITIVE, TWO HA

$17.99

$

Usually ships in 3-10 days

0

25

Husqvarna 585555501

CABLE.STARTER.8GA.17.5

$9.49

$

In Stock, Qty 11

0

26

Husqvarna 532175158

FUSE 20AMP

$5.99

$

In Stock, Qty 5

0

27

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 590223702

GROUND CABLE TWO HARNESS TAPS,

$27.99

$

Usually ships in 3-10 days

0

29

Husqvarna 587648401

SWITCH SEAT, 4 PIN NC/NO

$23.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$35.99

$

In Stock, Qty 20+

0

33

Husqvarna 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$11.99

$

In Stock, Qty 20+

0

34

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, Qty 9

0

40

Husqvarna 590193201

WIRING ASSY DASH, IRIS, 300, T

$335.99

$

Usually ships in 3-10 days

0

41

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.99

$

In Stock, only 2 left!

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$7.49

$

In Stock, only 4 left!

0

43

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$33.99

$

In Stock, Qty 20+

0

45

Husqvarna 590645901

GAUGE.FUEL.LEVEL. ROUND.2"

$65.99

$

Usually ships in 3-10 days

0

46

Husqvarna 590646001

GAUGE.6LED.IRIS.ROUND.2"
(Superseded to 594721501)

$143.99

$

Usually ships in 3-10 days

0

50

Husqvarna 582107601

SWITCH.PTO.8TERMINAL.STD.BLK

$31.99

$

In Stock, Qty 20+

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, Qty 8

0

71

Husqvarna 590193302

WIRING ASSY CHASSIS, IRIS, 300

$359.99

$

Usually ships in 3-10 days

0

75

Husqvarna 580366401

SWITCH.ON/OFF.(DIFF.LOCK)

$41.99

$

In Stock, only 1 left!

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$17.99

$

In Stock, Qty 9

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$5.99

$

In Stock, only 1 left!

0

99

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 1 left!

0

100

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0

102

Husqvarna 532404454

HARNESS PIGTAIL PCH TEX ROS

$21.99

$

In Stock, only 3 left!

0

105

Husqvarna 532407568

REVERSE SWITCH

$17.99

$

In Stock, only 2 left!

0

144

Husqvarna 590568001

CONTROL.UNIT.RIDE.ON.IRIS.BASE
(Superseded to 590568002)

$215.99

$

Usually ships in 3-10 days

0

146

Husqvarna 590193401

WIRING ASSY ENGINE, IRIS, 300,

$275.99

$

Usually ships in 3-10 days
