TS 348 XD (960430242-00) - Husqvarna 48" Garden Tractor (2017-09) ENGINE Parts Diagram

48" Garden Tractor

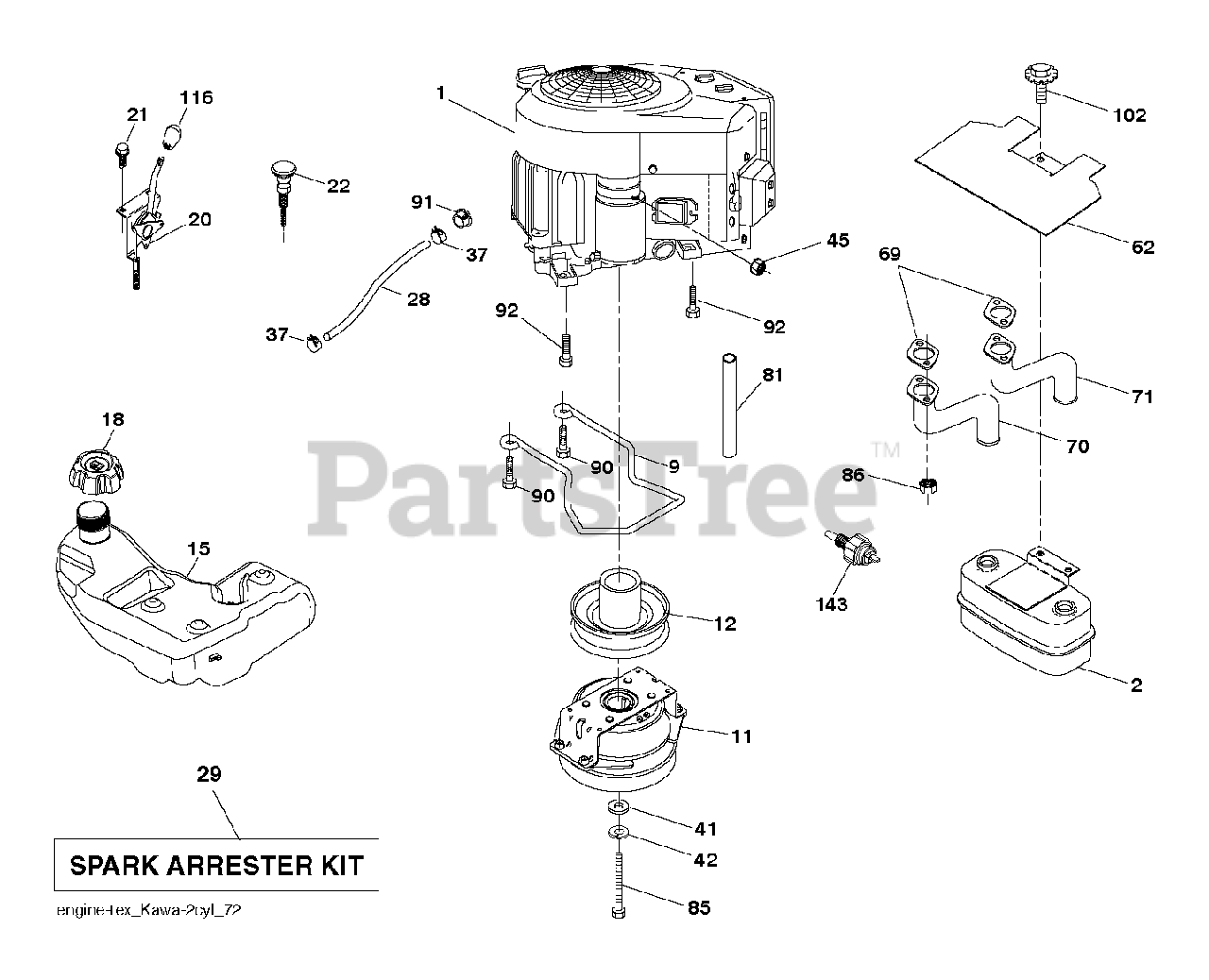

ENGINE Parts Diagram

  • Title

1

000000000

Note: ENGINE KAWA MODEL NO FR730V-ES04 (445363)

$

$

Not available

2

Husqvarna 589818701

Muffler Assembly, Twin MN

$44.99

$

Usually ships in 3-10 days

0

9

Husqvarna 501832601

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 501832602)

$

$

Not available

11

Husqvarna 587241401

CLUTCH.OGURA.5.0PD.GT1.5A-EH01

$278.99

$

In Stock, Qty 5

0

12

Husqvarna 532194343

PULLEY ENGINE

$74.99

$

In Stock, only 1 left!

0

15

Husqvarna 590599401

TANK SUBASM; 4 GAL MFG YEAR 20
(Superseded to 590599402)

$363.99

$

Usually ships in 3-10 days

0

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

$18.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532424341

CONTROL.THROTTLE.PRO.

$93.99

$

In Stock, Qty 6

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

22

Husqvarna 532189541

CONTROL, CHOKE
(Superseded to 532187768)

$37.99

$

In Stock, only 1 left!

0

28

Husqvarna 587044860

HOSE.1/4".LOW.PERM.FUEL.LN.60"

$15.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 19

0

42

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

70

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

Note: LH

$37.99

$

Usually ships in 3-10 days

0

71

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

Note: RH

$37.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$4.99

$

In Stock, Qty 18

0

85

Husqvarna 501606901

BOLT.HEX.7/16-20X3.GR5.YELLOW

$4.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 4 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.49

$

In Stock, Qty 12

0

143

Husqvarna 590044401

SENSOR.SWITCH.PRESSURE.OIL

$26.99

$

Usually ships in 3-10 days
