TS 350 E - Husqvarna Tile Saw (2008-10) ELECTRICAL Parts Diagram

Tile Saw

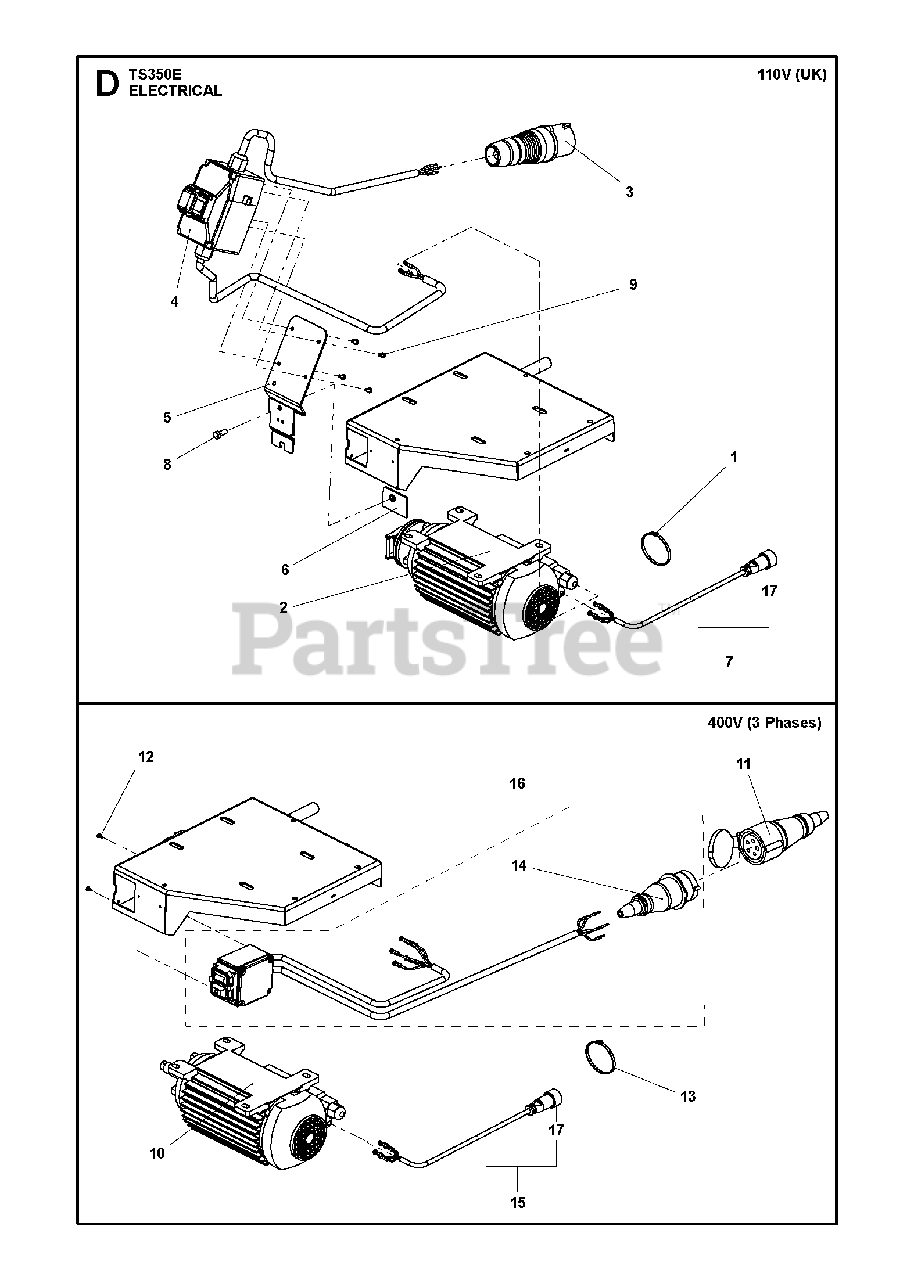

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna Construction 543 85 00-17

TIE STRAP

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 543 85 02-83

MOTOR

$

$

Not available

3

Husqvarna Construction 543 04 51-46

FICHE 2P+T 32A 110V 4H/PRESSE

$

$

Not available

4

Husqvarna Construction 543 07 15-77

SWITCH

$325.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 504 85 41-01

SUPPORT

$

$

Not available

6

Husqvarna Construction 543 06 99-74

TOLE DE SERRAGETS350F

$

$

Not available

7

Husqvarna Construction 506 57 75-01

WIRE ASSY

$124.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 725 24 51-71

SCREW EHHM

$1.99

$

In Stock, Qty 5

0

9

Husqvarna 725 23 27-71

SCREW EHHM
(Superseded to 503200003)

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 543 85 01-83

MOTOR

$

$

Not available

11

Husqvarna Construction 543 04 51-45

PROLONG. 3P+N+T 16A 6H/

$

$

Not available

12

Husqvarna 729 52 79-01

SCREW CRPANT

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 543 85 00-17

TIE STRAP

$3.49

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 543 04 51-36

FICHE 16A 380V 3P+N+T 6H/AVEC

$

$

Not available

15

Husqvarna Construction 506 57 75-01

WIRE ASSY

$124.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 543 85 00-45

SWITCH

$

$

Not available
