TS 352 (960410388-00) - Husqvarna 52" Garden Tractor (2015-04) MOWER DECK / CUTTING DECK Parts Diagram

52" Garden Tractor

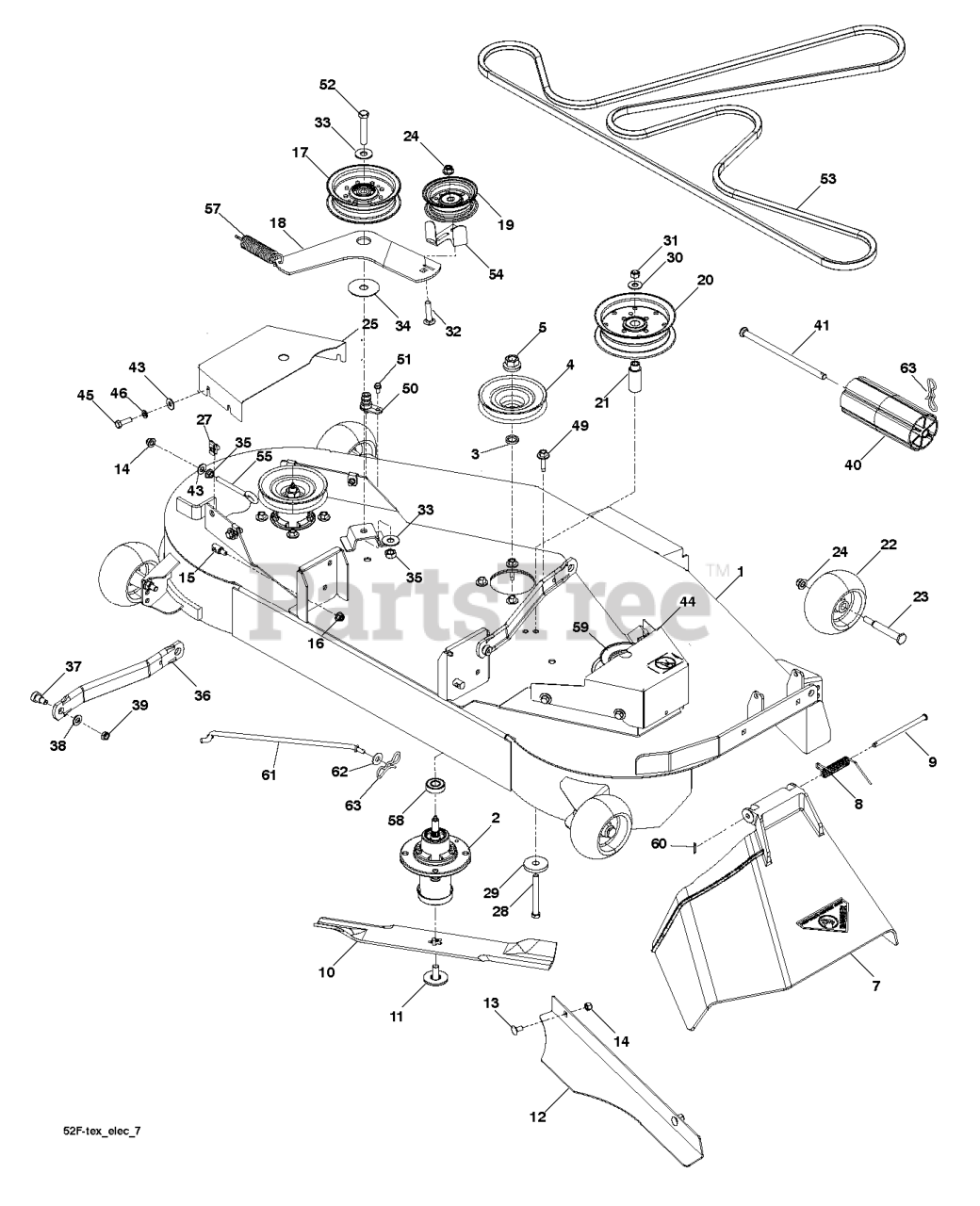

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 574804405

DECK SVCX.52F.498

$1082.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

$101.99

$

In Stock, Qty 20+

0

3

Husqvarna 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

4

Husqvarna 532174375

PULLEY.DRIVEN.DECK.48'

$43.99

$

In Stock, Qty 19

0

5

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

7

Husqvarna 539110733

DISCHARGE CHUTE 52"

$59.99

$

In Stock, Qty 20+

0

8

Husqvarna 539110735

SPRING - TORSION
(Superseded to 596646001)

$4.99

$

In Stock, Qty 13

0

9

Husqvarna 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD
(Superseded to 595935501)

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 574870801

BLADE, 17.75 X 2.5 X .25

$27.99

$

In Stock, Qty 20+

0

11

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$9.49

$

In Stock, Qty 20+

0

12

Husqvarna 574875002

PLATE.52".CONFINEMENT.BLACK

$45.99

$

In Stock, only 2 left!

0

13

Husqvarna 872110505

BOLT.CARR.5/16-18X5/8.SHORT
(Superseded to 596039401)

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE
(Superseded to 593824001)

$4.99

$

In Stock, Qty 7

0

16

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

17

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$47.99

$

In Stock, Qty 20+

0

18

Husqvarna 574841802

ARM, IDLER, 52" BLK

$35.99

$

In Stock, only 1 left!

0

19

Husqvarna 532177968

PULLEY.IDLER.FLAT

$33.99

$

In Stock, Qty 20+

0

20

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$35.99

$

In Stock, Qty 20+

0

21

Husqvarna 575224501

BUSHING, IDLER

$35.99

$

In Stock, only 2 left!

0

22

Husqvarna 532133957

WHEEL GAGE DONUT

$14.99

$

In Stock, Qty 20+

0

23

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$2.49

$

In Stock, Qty 20+

0

24

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 8

0

25

Husqvarna 575224706

SHIELD.BELT.LH.52.PNT.498

$

$

Not available

27

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 539108271

HCS 3/8-16 X 3-1/2 GR5 ZD

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 539106504

SPINDLE WASHER
(Superseded to 596770301)

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 819141614

RP WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990923

RHSNB 3/8-16X1-3/4

$3.49

$

In Stock, Qty 11

0

33

Husqvarna 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532178515

WASHER

$7.49

$

In Stock, Qty 20+

0

35

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$4.99

$

In Stock, Qty 15

0

36

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$17.99

$

In Stock, Qty 8

0

37

Husqvarna 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 539976979)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 532176066

NOSE ROLLER 48"

$14.99

$

In Stock, Qty 20+

0

41

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$8.49

$

In Stock, Qty 20+

0

43

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 575967304

SHIELD.BELT.RH.52.PNT.498

$17.99

$

Usually ships in 3-10 days

0

45

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00
(Superseded to 596580801)

$3.99

$

In Stock, Qty 19

0

46

Husqvarna 810030500

WASH.5/16.SLW.ZD
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

49

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 532415598

PORT.WASHOUT

$8.49

$

In Stock, Qty 20+

0

51

Husqvarna 817490408

SCREW
(Superseded to 596437001)

$3.99

$

In Stock, only 2 left!

0

52

Husqvarna 874780740

BOLT.HEX.7/16-14
(Superseded to 596435201)

$3.99

$

In Stock, Qty 20+

0

53

Husqvarna 574845603

BELT, 143.5" EL

$101.99

$

In Stock, Qty 20+

0

54

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, Qty 20+

0

55

Husqvarna 539115574

EYE BOLT 5/16 X 3.50
(Superseded to 596240801)

$4.99

$

In Stock, only 3 left!

0

57

Husqvarna 539106850

SPRING
(Superseded to 596645601)

$11.99

$

In Stock, only 1 left!

0

58

Husqvarna 532110485

BEARING

$17.99

$

In Stock, Qty 20+

0

59

Husqvarna 575352901

RP PULLEY, COLLECTION 48
(Superseded to 588586401)

$65.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, Qty 6

0

61

Husqvarna 532400337

ROD.ANTI.SWAY.48/54"TE
(Superseded to 596274401)

$14.99

$

In Stock, Qty 20+

0

62

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.99

$

In Stock, Qty 20+

0

63

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$1.49

$

In Stock, Qty 20+

0

--

Husqvarna 532416405

COUPLING.QUICK CONNECT

$9.99

$

In Stock, Qty 20+

0

--

Husqvarna 588781501

DECK.ASM.SVC.52F.EL.GW.WP.

$

$

Not available
