TS 354 - Husqvarna 54" Garden Tractor ENGINE Parts Diagram

54" Garden Tractor

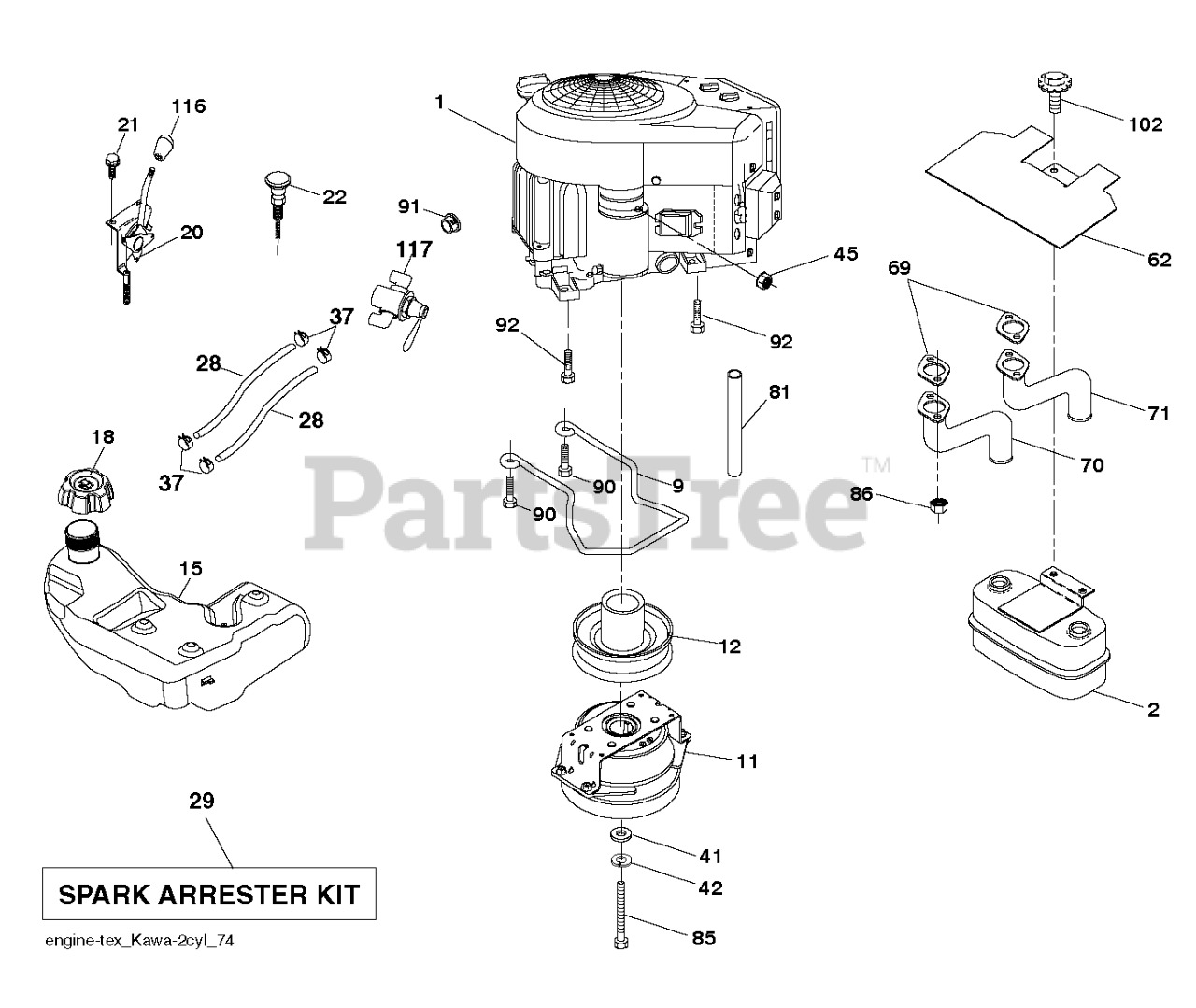

ENGINE Parts Diagram

  • Title

117

Husqvarna 532420828

VALVE FUEL RESERVE

Note: For 96041042800

$35.99

$

In Stock, only 2 left!

0

41

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 15

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$71.99

$

In Stock, Qty 17

0

62

Husqvarna 531154901

SERVICE KIT HEAT SHIELD

$14.99

$

In Stock, only 2 left!

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.99

$

In Stock, Qty 5

0

102

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$5.99

$

In Stock, Qty 20+

0

85

Husqvarna 501606901

BOLT.HEX.7/16-20X3.GR5.YELLOW

$3.49

$

In Stock, only 2 left!

0

28

Husqvarna 587044864

HOSE 1/4" LOW PERMEATION FUEL

$27.99

$

In Stock, only 2 left!

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

70

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

Note: LH

$33.99

$

In Stock, only 4 left!

0

18

Husqvarna 584248702

CAP.ASSY.FUEL.3".N-EPA.GRY.498

$21.99

$

In Stock, only 3 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

71

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

Note: RH

$33.99

$

In Stock, only 2 left!

0

22

Husqvarna 532187768

CONTROL.CHOKE.ERGO.BLACK

$37.99

$

In Stock, only 1 left!

0

116

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 10

0

12

Husqvarna 532194343

PULLEY ENGINE

$59.99

$

In Stock, only 2 left!

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 9

0

45

Husqvarna 596133601

Hardware

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 532424341

CONTROL.THROTTLE.PRO.

$45.99

$

In Stock, only 2 left!

0

15

Husqvarna 532422804

TANK FUEL

Note: For 96041042800

$193.99

$

Usually ships in 3-10 days

0

11

Husqvarna 587241401

CLUTCH.OGURA.5.0PD.GT1.5A-EH01

$275.99

$

In Stock, only 1 left!

0

69

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0

1

000000000

Note: ENGINE KAWA MODEL NO. FR730V-ES04 (445363)

$

$

Not available

9

Husqvarna 596501502

Keepers

$14.99

$

In Stock, only 2 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, only 2 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

15

Husqvarna 532193499

TANK.FUEL.4GAL

Note: For 96041045500

$96.99

$

In Stock, only 1 left!

0
