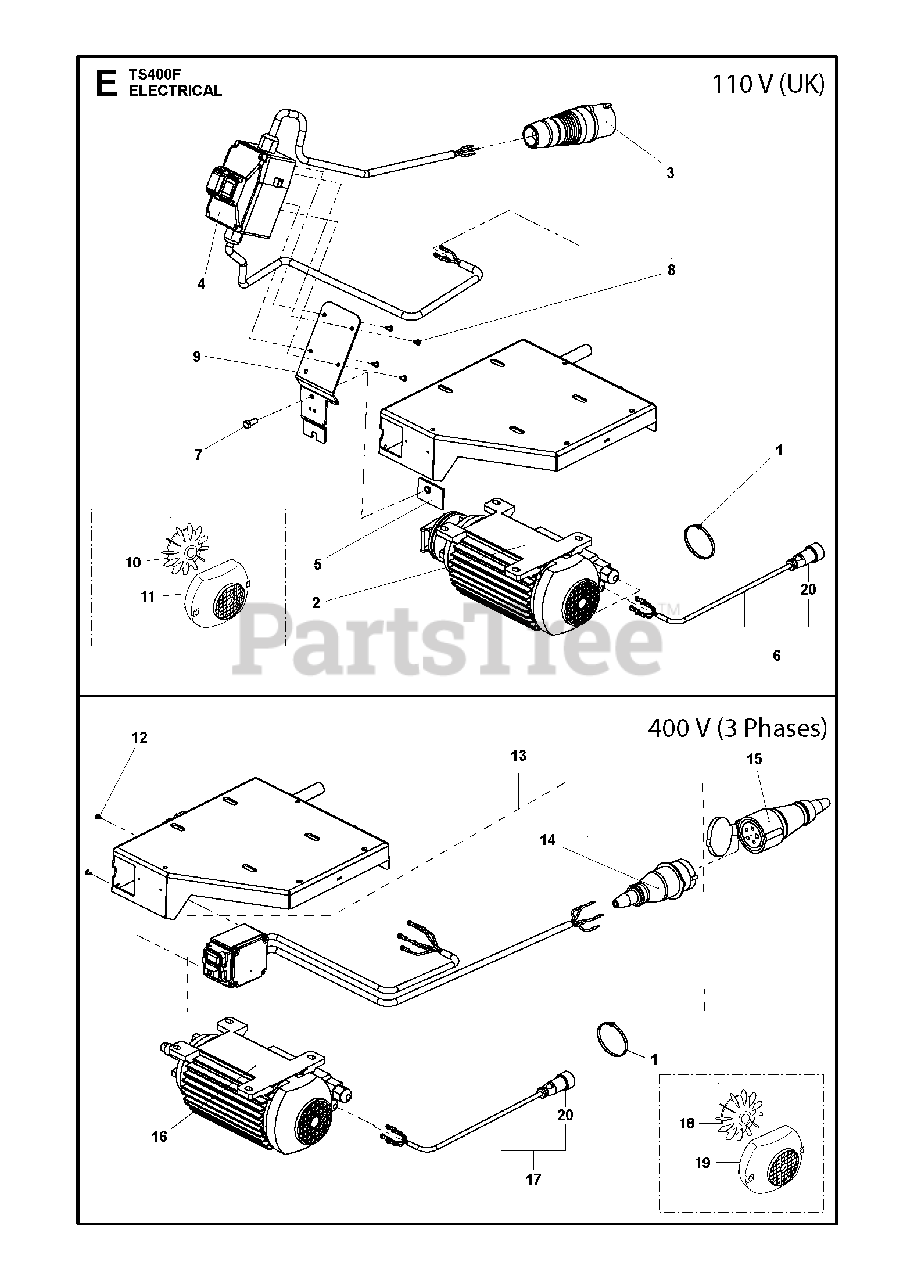

TS 400 F - Husqvarna Tile Saw (2014-08) ELECTRICAL Parts Diagram

Tile Saw

ELECTRICAL Parts Diagram

  • Title

1

Husqvarna Construction 543 85 00-17

TIE STRAP

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 543 85 02-83

MOTOR

$

$

Not available

3

Husqvarna Construction 543 04 51-46

FICHE 2P+T 32A 110V 4H/PRESSE

$

$

Not available

4

Husqvarna Construction 543 07 15-77

SWITCH

$325.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 543 06 99-74

TOLE DE SERRAGETS350F

$

$

Not available

6

Husqvarna Construction 506 57 75-01

WIRE ASSY

$124.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 725 24 51-71

SCREW EHHM

$1.99

$

In Stock, Qty 5

0

8

Husqvarna 725 23 27-71

SCREW EHHM
(Superseded to 503200003)

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 543 07 61-08

SUPPORT TRIPUS 110VTS400F

$

$

Not available

10

Husqvarna Construction 543 85 01-78

FLYWHEEL

$10.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 543 85 01-79

ABDECKUNG

$

$

Currently unavailable

12

Husqvarna 729 52 79-01

SCREW CRPANT

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 543 85 00-45

SWITCHCompl. 3 phase 200V/400V

$

$

Not available

14

Husqvarna Construction 543 04 51-36

FICHE 16A 380V 3P+N+T 6H/AVEC*

$

$

Not available

15

Husqvarna Construction 543 04 51-45

PROLONG. 3P+N+T 16A 6H/

$

$

Not available

16

Husqvarna Construction 543 85 01-83

MOTOR

$

$

Not available

17

Husqvarna Construction 506 57 75-01

WIRE ASSY

$124.99

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 543 85 01-78

FLYWHEEL

$10.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 543 85 01-79

ABDECKUNG

$

$

Currently unavailable

20

Husqvarna Construction 578 31 49-01

CONNECTOR

$81.99

$

Usually ships in 3-10 days

0
