TS 400 F - Husqvarna Tile Saw (2014-08) MOTOR AND BLADEGUARDS Parts Diagram

Tile Saw

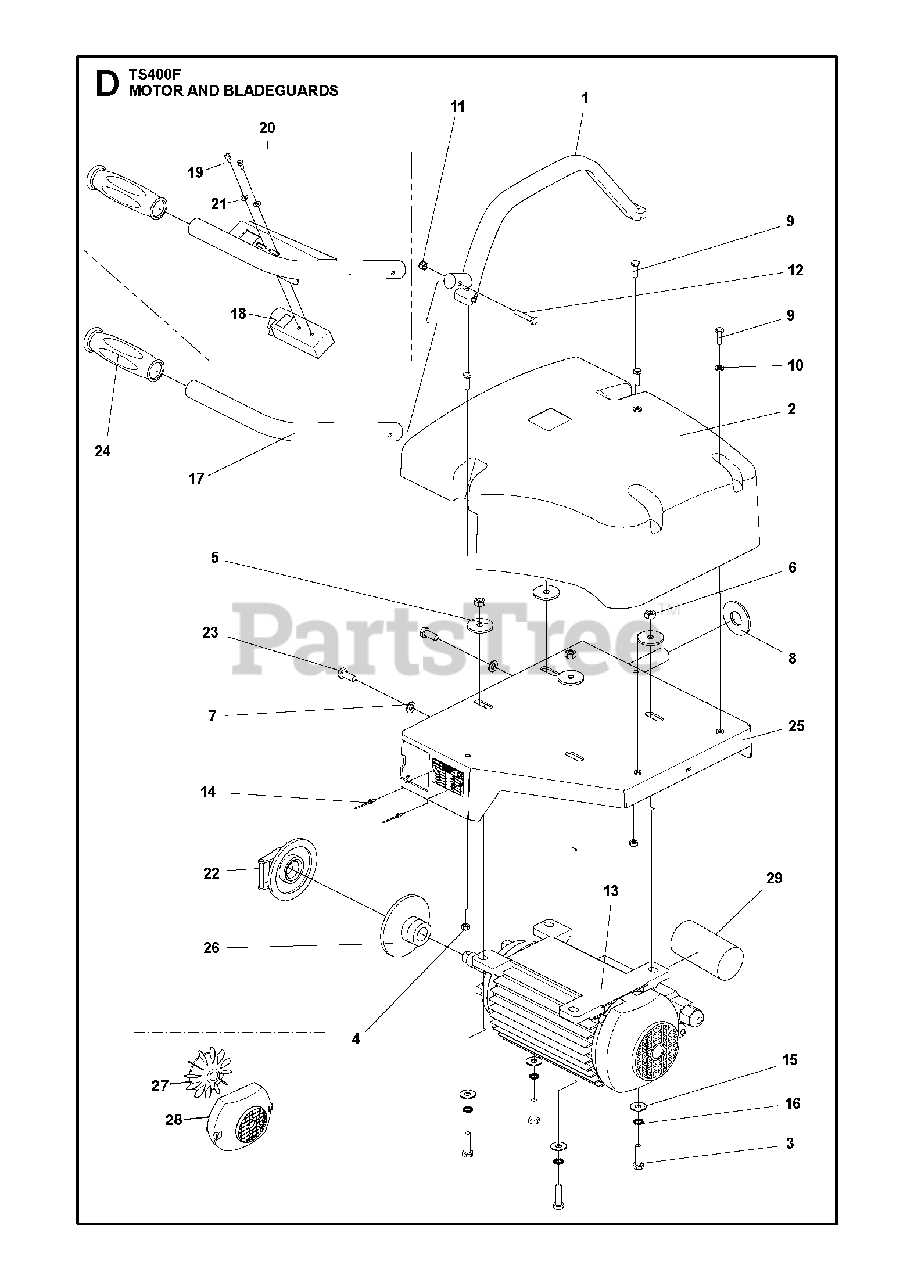

MOTOR AND BLADEGUARDS Parts Diagram

  • Title

1

Husqvarna Construction 540 06 47-01

HANDLE

$

$

Not available

2

Husqvarna Construction 540 06 46-01

COVER

$

$

Not available

3

Husqvarna 725 24 55-71

SCREW EHHM

$5.99

$

In Stock, Qty 10

0

4

Husqvarna 731 23 16-01

HEXAGON NUT

$6.49

$

In Stock, Qty 5

0

5

Husqvarna Construction 543 04 66-47

WASHER

$10.50

$

Usually ships in 3-10 days

0

6

Husqvarna 731 23 18-01

HEXAGON NUT
(Superseded to 695008078)

$

$

Not available

7

Husqvarna 734 11 63-01

WASHER
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna Construction 543 04 66-60

RONDELLE DE REGLAGE/

$

$

Not available

9

Husqvarna 725 23 70-71

SCREW EHHM

$7.49

$

Usually ships in 3-10 days

0

10

Husqvarna 734 11 52-01

WASHER

$4.99

$

In Stock, Qty 13

0

11

Husqvarna 732 25 16-01

HEXAGON LOCKING NUT

$4.99

$

In Stock, Qty 12

0

12

Husqvarna Construction 725 23 76-71

SCREW EHHM

$

$

Not available

13

Husqvarna Construction 543 85 01-80

MOTOR230V (EU)

$

$

Not available

13

Husqvarna Construction 543 85 01-95

MOTOR230V (AUS)

$

$

Not available

13

Husqvarna Construction 543 85 01-83

MOTOR400V

$

$

Not available

13

Husqvarna Construction 543 85 02-83

MOTOR115V (UK)

$

$

Not available

14

Husqvarna Construction 722 78 18-03

RIVET

$3.97

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 543 04 47-18

RONDELLE ACIER L8 BICHRO/

$4.67

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 735 21 64-01

LOCKWASHER

$0.35

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 540 06 61-01

HANDLE

$

$

Not available

18

Husqvarna Construction 543 08 07-59

POINTER

$

$

Not available

19

Husqvarna Construction 725 52 89-01

SCREW IHSCM

$0.88

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 540 06 62-01

HANDLE KITUntil s/n 2015 3200019

$

$

Not available

21

Husqvarna 734 11 36-01

WASHER

$4.99

$

In Stock, only 1 left!

0

22

Husqvarna Construction 543 04 33-57

NUT

$

$

Not available

23

Husqvarna Construction 725 24 51-71

SCREW EHHM

$2.49

$

In Stock, Qty 5

0

24

Husqvarna Construction 543 04 56-54

HANDLE

$4.67

$

Usually ships in 3-10 days

0

25

Husqvarna Construction 540 06 55-01

MOTOR SUPPORT

$

$

Not available

26

Husqvarna Construction 543 85 01-73

FLANGE

$

$

Not available

27

Husqvarna Construction 543 85 01-78

FLYWHEEL

$7.00

$

Usually ships in 3-10 days

0

28

Husqvarna Construction 543 85 01-79

ABDECKUNG

$

$

Currently unavailable

29

Husqvarna Construction 543 85 01-76

CAPACITOR"230V ""Capacitor 35_F for 2.2Kw motor"""

$

$

Currently unavailable

29

Husqvarna Construction 543 09 26-10

CAPACITOR"110V ""Capacitor 25_F for 1.1Kw motor"

$

$

Currently unavailable
