TS 600 M - Husqvarna Tile Saw (2007-01) FRAME Parts Diagram

Tile Saw

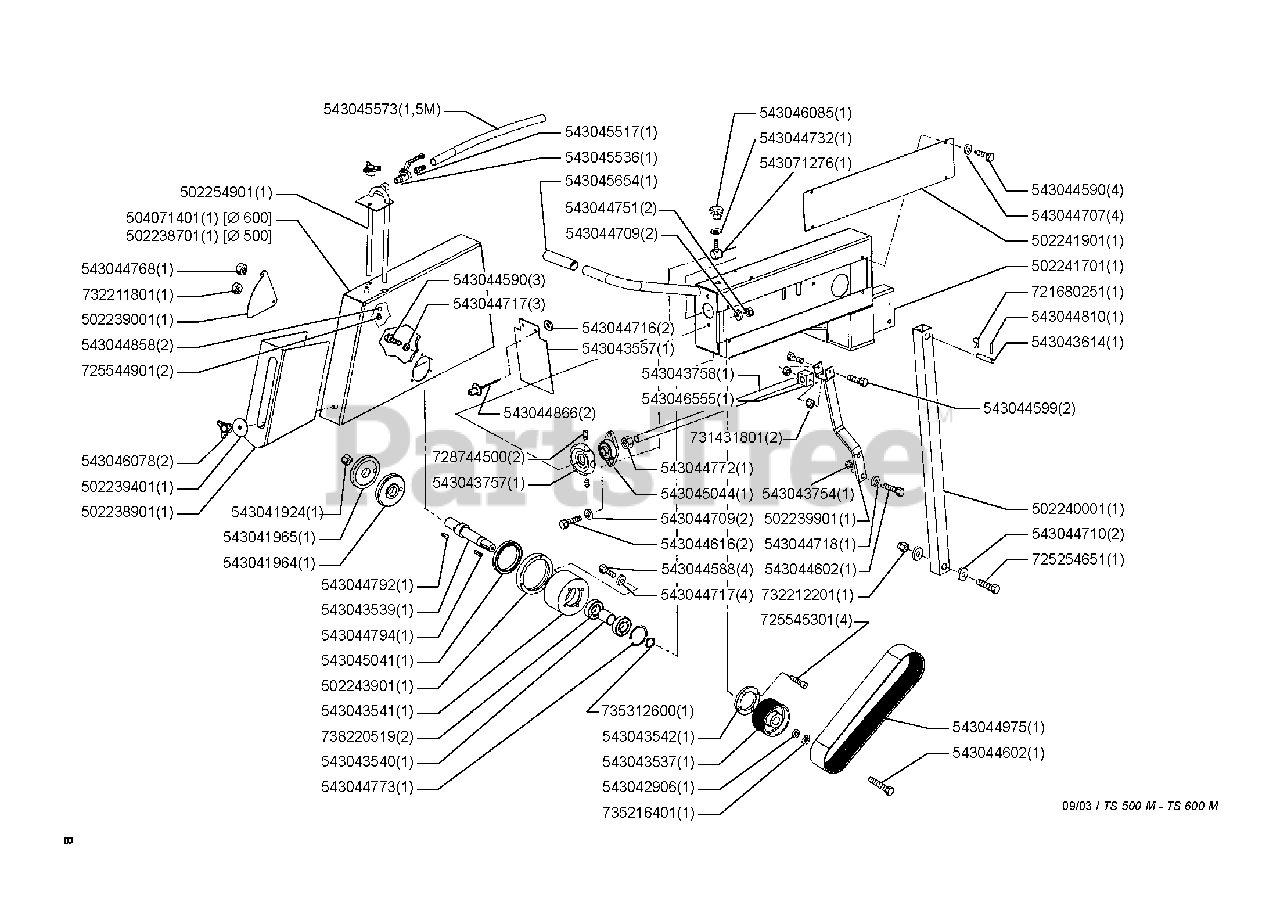

FRAME Parts Diagram

  • Title

502238701

Husqvarna Construction 502238701

BLADE GUARD

$

$

Not available

502 23 89-01

Husqvarna 502 23 89-01

PROTECTIVE SHUTTER

$

$

Not available

502 23 90-01

Husqvarna 502 23 90-01

PROTECTIVE PLATE

$

$

Not available

502 23 94-01

Husqvarna 502 23 94-01

WASHER

$

$

Not available

502 23 99-01

Husqvarna 502 23 99-01

PIVOTING STOP/

$

$

Not available

502 24 00-01

Husqvarna 502 24 00-01

PEDAL ARM

$

$

Not available

502 24 17-01

Husqvarna 502 24 17-01

PIVOTING ARM

$

$

Not available

502 24 19-01

Husqvarna 502 24 19-01

SECURING PLATE

$

$

Not available

502 24 39-01

Husqvarna 502 24 39-01

BEARING COVER

$

$

Not available

502 25 49-01

Husqvarna Construction 502 25 49-01

FORK

$

$

Not available

504 07 14-01

Husqvarna Construction 504 07 14-01

BLADE GUARD

$

$

Not available

543 04 19-24

Husqvarna Construction 543 04 19-24

NUT

$

$

Not available

543 04 19-64

Husqvarna Construction 543 04 19-64

KEYED FLANGE/

$

$

Not available

543 04 19-65

Husqvarna Construction 543 04 19-65

PLAIN FLANGE/

$

$

Not available

543 04 29-06

Husqvarna Construction 543 04 29-06

WASHER

$

$

Not available

543 04 35-37

Husqvarna Construction 543 04 35-37

RECEIVING PULLEY /

$

$

Not available

543 04 35-39

Husqvarna Construction 543 04 35-39

SPINDLE SHAFT

$

$

Not available

543 04 35-40

Husqvarna Construction 543 04 35-40

SPACER SPINDLE SHAFT/

$

$

Not available

543 04 35-41

Husqvarna Construction 543 04 35-41

SPINDLE CASING/

$

$

Not available

543 04 35-42

Husqvarna Construction 543 04 35-42

RONDELLE DE RENFORT/

$

$

Not available

543 04 35-57

Husqvarna Construction 543 04 35-57

MUD FLAP/

$

$

Not available

543 04 36-14

Husqvarna Construction 543 04 36-14

ARM UPPER AXLE/

$

$

Not available

543 04 37-54

Husqvarna Construction 543 04 37-54

STOP NUT/

$

$

Not available

543 04 37-57

Husqvarna Construction 543 04 37-57

VOLANT DE REGLAGE/

$

$

Not available

543 04 37-58

Husqvarna Construction 543 04 37-58

VIS DE REGLAGE/

$

$

Not available

543 04 45-88

Husqvarna Construction 543 04 45-88

VIS TH 8/8 6X10 BICHROM/

$0.99

$

Usually ships in 3-10 days

0

543 04 45-90

Husqvarna Construction 543 04 45-90

VIS TH 8/8 6X16 BICHROM/

$

$

Not available

543 04 45-90

Husqvarna Construction 543 04 45-90

VIS TH 8/8 6X16 BICHROM/

$

$

Not available

543 04 45-99

Husqvarna Construction 543 04 45-99

VIS TH 8/8 8X16 BICHROM/

$4.49

$

Usually ships in 3-10 days

0

543 04 46-02

Husqvarna Construction 543 04 46-02

SCREW

$

$

Not available

543 04 46-02

Husqvarna Construction 543 04 46-02

SCREW

$

$

Not available

543 04 46-16

Husqvarna Construction 543 04 46-16

SCREW

$

$

Not available

543 04 47-07

Husqvarna Construction 543 04 47-07

RONDELLE ACIER M6 BICHRO/

$

$

Currently unavailable

543 04 47-09

Husqvarna Construction 543 04 47-09

WASHER

$1.99

$

Usually ships in 3-10 days

0

543 04 47-09

Husqvarna Construction 543 04 47-09

WASHER

$1.99

$

Usually ships in 3-10 days

0

543 04 47-10

Husqvarna Construction 543 04 47-10

WASHER

$

$

Not available

543 04 47-16

Husqvarna Construction 543 04 47-16

RONDELLE ACIER L5 BICHRO/

$

$

Not available

543 04 47-17

Husqvarna Construction 543 04 47-17

WASHER

$

$

Not available

543 04 47-17

Husqvarna Construction 543 04 47-17

WASHER

$

$

Not available

543 04 47-18

Husqvarna Construction 543 04 47-18

RONDELLE ACIER L8 BICHRO/

$4.67

$

Usually ships in 3-10 days

0

543 04 47-32

Husqvarna Construction 543 04 47-32

WASHER

$4.67

$

Usually ships in 3-10 days

0

543 04 47-51

Husqvarna Construction 543 04 47-51

NUT

$

$

Not available

543 04 47-68

Husqvarna Construction 543 04 47-68

ECROU TWOLOK M8 BICHRO/

$

$

Not available

543 04 47-72

Husqvarna Construction 543 04 47-72

NUT

$11.67

$

Usually ships in 3-10 days

0

543 04 47-73

Husqvarna Construction 543 04 47-73

CIRCLIP

$

$

Not available

543 04 47-92

Husqvarna Construction 543 04 47-92

CLAVETTE 8X7X12BOUT ROND/

$

$

Not available

543 04 47-94

Husqvarna Construction 543 04 47-94

CLAVETTE 8X7X30BOUT ROND/

$

$

Not available

543 04 48-10

Husqvarna Construction 543 04 48-10

GOUPILLE ELASTIQUE 5X40/

$

$

Not available

543 04 48-58

Husqvarna Construction 543 04 48-58

TUBTEC CKO 830 S8 TETE/FINE

$

$

Not available

543 04 48-66

Husqvarna Construction 543 04 48-66

RIVET 4*21.5 BF 01 0523/

$

$

Not available

543 04 49-75

Husqvarna Construction 543 04 49-75

BELT

$

$

Not available

543 04 50-41

Husqvarna Construction 543 04 50-41

ROULT BILLE 61814 2RS/

$

$

Not available

543 04 50-44

Husqvarna Construction 543 04 50-44

PALIER FY TB 20 TF/

$

$

Not available

543 04 55-17

Husqvarna Construction 543 04 55-17

RACCOR CANNEL.NE05 12X17/

$

$

Not available

543 04 55-36

Husqvarna Construction 543 04 55-36

ROBINET 12X17MALE FEMELL/

$

$

Not available

543 04 55-73

Husqvarna Construction 543 04 55-73

HOSE

$

$

Not available

543 04 56-54

Husqvarna Construction 543 04 56-54

HANDLE

$4.67

$

Usually ships in 3-10 days

0

543 04 60-78

Husqvarna Construction 543 04 60-78

VOL.3P/65/B M10 6111040/

$

$

Not available

543 04 60-85

Husqvarna Construction 543 04 60-85

VOL.VB/40M10 PASS6114035/

$

$

Not available

543 04 65-55

Husqvarna Construction 543 04 65-55

NUT

$

$

Not available

543 07 12-76

Husqvarna Construction 543 07 12-76

FREIN DE LA VISTS500M/600M

$

$

Not available

721 68 02-51

Husqvarna 721 68 02-51

SPRING COTTER

$7.99

$

Usually ships in 3-10 days

0

725 25 46-51

Husqvarna 725 25 46-51

SCREW EHHM

$6.49

$

Usually ships in 3-10 days

0

725 54 49-01

Husqvarna Construction 725 54 49-01

SCREW IHSCM

$3.56

$

Usually ships in 3-10 days

0

725 54 53-01

Husqvarna Construction 725 54 53-01

SCREW IHSCM

$3.50

$

Usually ships in 3-10 days

0

728 74 45-00

Husqvarna Construction 728 74 45-00

SCREW IHSETM

$

$

Not available

731 43 18-01

Husqvarna 731 43 18-01

HEXAGON THIN NUT

$3.49

$

In Stock, only 3 left!

0

732 21 18-01

Husqvarna 732 21 18-01

LOCK NUT

$4.99

$

In Stock, Qty 8

0

732 21 22-01

Husqvarna Construction 732 21 22-01

NUT

$

$

Not available

735 21 64-01

Husqvarna Construction 735 21 64-01

LOCKWASHER

$0.35

$

Usually ships in 3-10 days

0

735 31 26-00

Husqvarna 735 31 26-00

CIRCLIP

$3.49

$

In Stock, Qty 13

0

738 22 05-19

Husqvarna 738 22 05-19

BALL BEARING

$54.99

$

In Stock, only 2 left!

0
