TS 70 - Husqvarna Tile Saw (2015-07) ARM Parts Diagram

Tile Saw

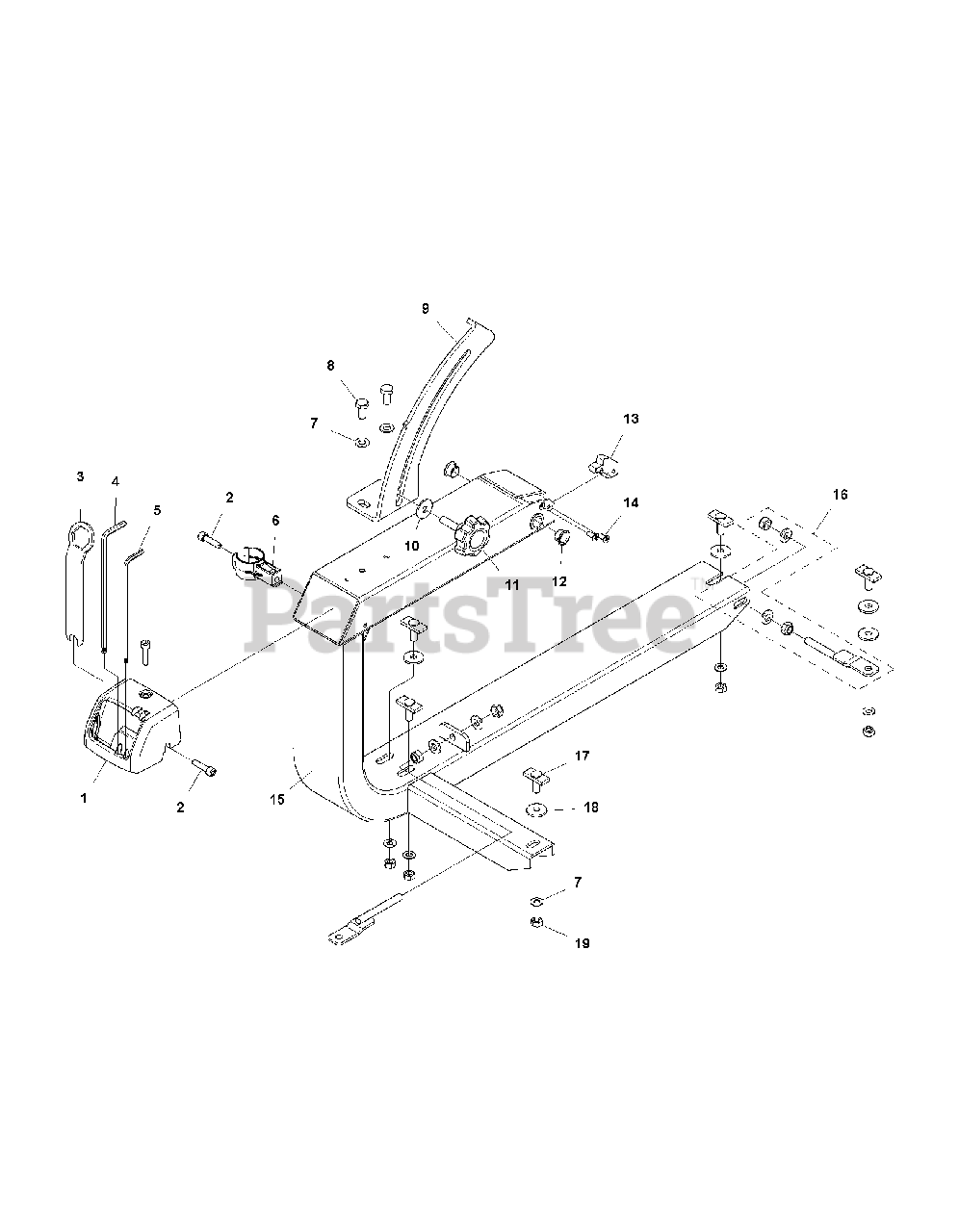

ARM Parts Diagram

  • Title

1

Husqvarna Construction 585 56 39-01

COVER

$10.99

$

Usually ships in 3-10 days

0

2

Husqvarna 725 53 72-01

SCREW IHSCM
(Superseded to 725537455)

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 510 22 54-37

WRENCH

$12.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 588 10 99-02

WRENCH

$8.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 588 10 99-01

WRENCH

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 585 54 53-01

CLIP

$8.99

$

Usually ships in 3-10 days

0

7

Husqvarna 734 11 63-01

WASHER
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 725 24 49-71

SCREW EHHM
(Superseded to 725244951)

$4.49

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 585 23 64-01

BRACKET

$39.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 584 14 69-01

WASHER

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 585 59 50-01

KNOB

$6.99

$

In Stock, Qty 6

0

12

Husqvarna Construction 585 62 09-02

BUSH

$39.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 585 54 93-01

BRACKET

$32.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 725 62 95-01

SCREW IHCSFM

$1.34

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 585 23 45-01

ARM

$378.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 588 95 77-01

ADJUSTER

$22.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 588 11 63-01

BRACKET

$10.99

$

In Stock, only 1 left!

0

18

Husqvarna Construction 504 58 11-01

WASHER

$6.99

$

In Stock, only 2 left!

0

19

Husqvarna 732 25 18-01

HEXAGON LOCKING NUT
(Superseded to 732211801)

$4.99

$

In Stock, Qty 8

0
