TS 70 - Husqvarna Tile Saw (2015-07) CUTTING HEAD Parts Diagram

Tile Saw

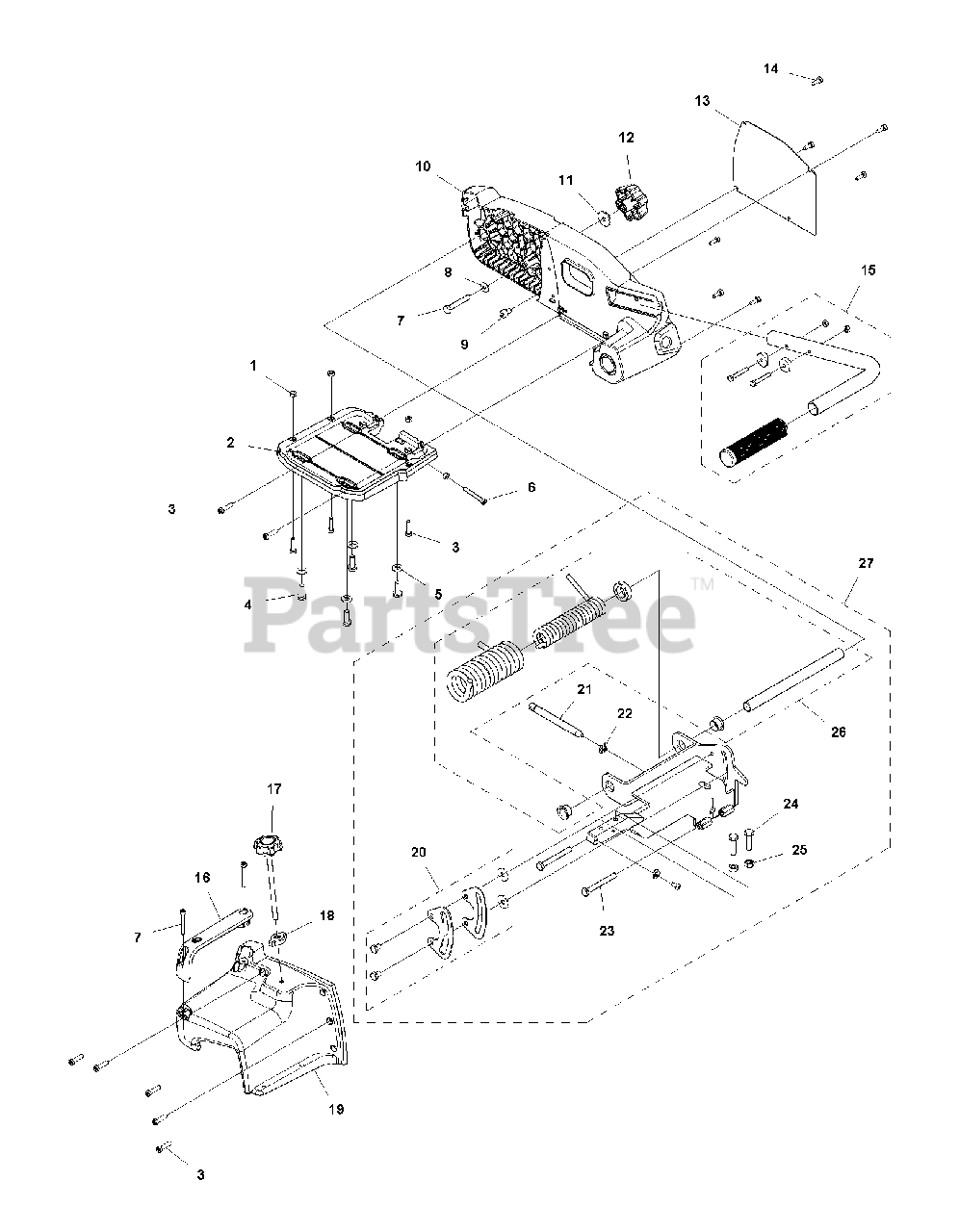

CUTTING HEAD Parts Diagram

  • Title

1

Husqvarna 732 25 16-01

HEXAGON LOCKING NUT

$3.49

$

In Stock, only 4 left!

0

2

Husqvarna Construction 586 33 26-01

MOTOR SUPPORT

$83.99

$

Usually ships in 3-10 days

0

3

Husqvarna 725 53 72-01

SCREW IHSCM
(Superseded to 725537455)

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 725 24 51-71

SCREW EHHM

$1.99

$

In Stock, Qty 5

0

5

Husqvarna 734 11 63-01

WASHER
(Superseded to 819111116)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna Construction 588 80 40-01

SCREW IHSCM

$1.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 725 24 63-51

SCREW EHHM

$5.99

$

In Stock, only 3 left!

0

8

Husqvarna Construction 584 14 69-01

WASHER

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 725 54 47-01

SCREW IHSCM

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 581 09 90-01

CUTTER ARM

$296.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 588 85 07-01

WASHER

$6.99

$

In Stock, only 2 left!

0

12

Husqvarna Construction 585 59 50-05

KNOB

$8.99

$

In Stock, only 2 left!

0

13

Husqvarna Construction 581 56 88-01

COVER

$16.33

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 725 53 27-01

SCREW IHSCM

$3.49

$

In Stock, only 1 left!

0

15

Husqvarna Construction 588 91 57-01

HANDLE KIT

$103.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 586 38 00-01

HANDLE

$15.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 585 59 50-02

KNOB

$8.99

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 522 77 44-03

KNOB

$10.99

$

In Stock, only 2 left!

0

19

Husqvarna Construction 581 27 99-01

CUTTER ARM

$156.99

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 588 91 85-01

PLATE KIT

$43.99

$

Usually ships in 3-10 days

0

21

Husqvarna Construction 587 40 94-01

AXLE

$8.17

$

Usually ships in 3-10 days

0

22

Husqvarna 579 48 28-01

E-CLIP

$

$

Not available

23

Husqvarna Construction 725 24 65-51

SCREW EHHM

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 725 24 59-71

SCREW

$8.49

$

Usually ships in 3-10 days

0

25

Husqvarna 731 23 18-01

HEXAGON NUT
(Superseded to 695008078)

$

$

Not available

26

Husqvarna Construction 588 91 84-01

SPRING

$1174.83

$

Usually ships in 3-10 days

0

27

Husqvarna Construction 586 83 02-02

JOINT

$400.17

$

Usually ships in 3-10 days

0
