TS 70 - Husqvarna Tile Saw (2015-07) MOTOR Parts Diagram

Tile Saw

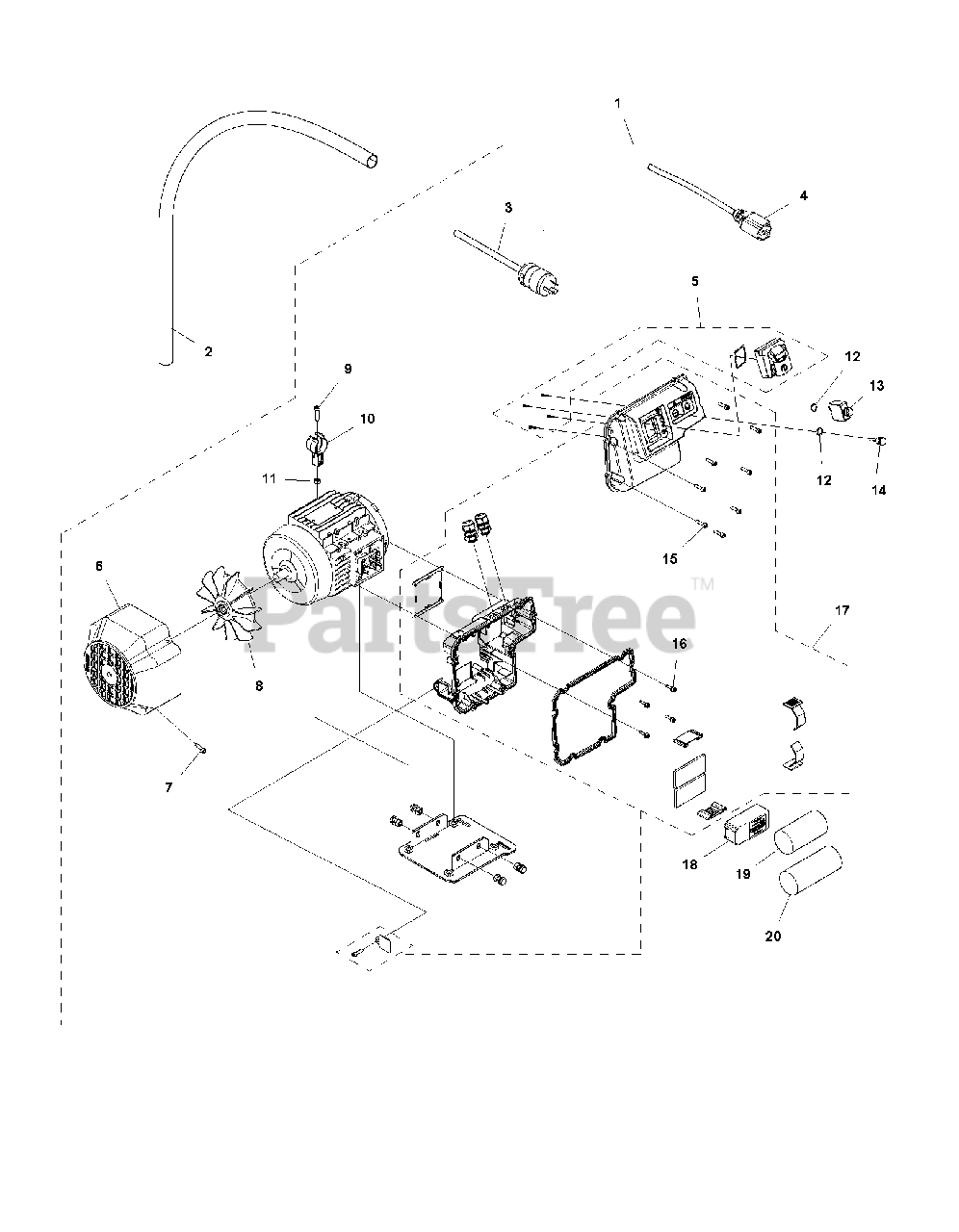

MOTOR Parts Diagram

  • Title

1

Husqvarna Construction 585 22 54-04

MOTOR

$1403.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 585 54 54-02

HOSE

$108.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 586 36 93-02

CABLE

$89.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 525 81 45-02

CABLE

$

$

Currently unavailable

5

Husqvarna Construction 588 92 96-01

SWITCH KIT

$60.99

$

In Stock, only 2 left!

0

6

Husqvarna Construction 589 23 41-01

FAN COVER

$36.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 724 13 23-01

SCREW CRPANM

$1.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 589 23 45-01

FAN

$26.99

$

In Stock, only 1 left!

0

9

Husqvarna 725 53 70-01

SCREW IHSCM
(Superseded to 725537055)

$10.99

$

In Stock, Qty 20+

0

10

Husqvarna Construction 585 54 53-01

CLIP

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 732 25 16-01

HEXAGON LOCKING NUT

$3.49

$

In Stock, only 4 left!

0

12

Husqvarna Construction 587 92 36-01

O-RING

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 585 54 41-02

CIRCUIT BREAKER

$32.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 580 88 16-03

LAMP

$31.99

$

Usually ships in 3-10 days

0

15

Husqvarna 725 53 31-05

SCREW IHSCM
(Superseded to 725533155)

$6.49

$

In Stock, Qty 17

0

16

Husqvarna 725 52 93-01

SCREW IHSCM

$3.49

$

In Stock, only 3 left!

0

17

Husqvarna Construction 588 91 91-01

ELECTRONIC BOX

$196.99

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 586 29 40-02

ELECTRONIC BOX

$237.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 585 54 44-01

CAPACITOR

$48.99

$

In Stock, only 2 left!

0

20

Husqvarna Construction 585 54 45-01

CAPACITOR

$81.99

$

Usually ships in 3-10 days

0
