TS 73 R - Husqvarna Tile Saw (2008-06) ELECTRICAL Parts Diagram

Tile Saw

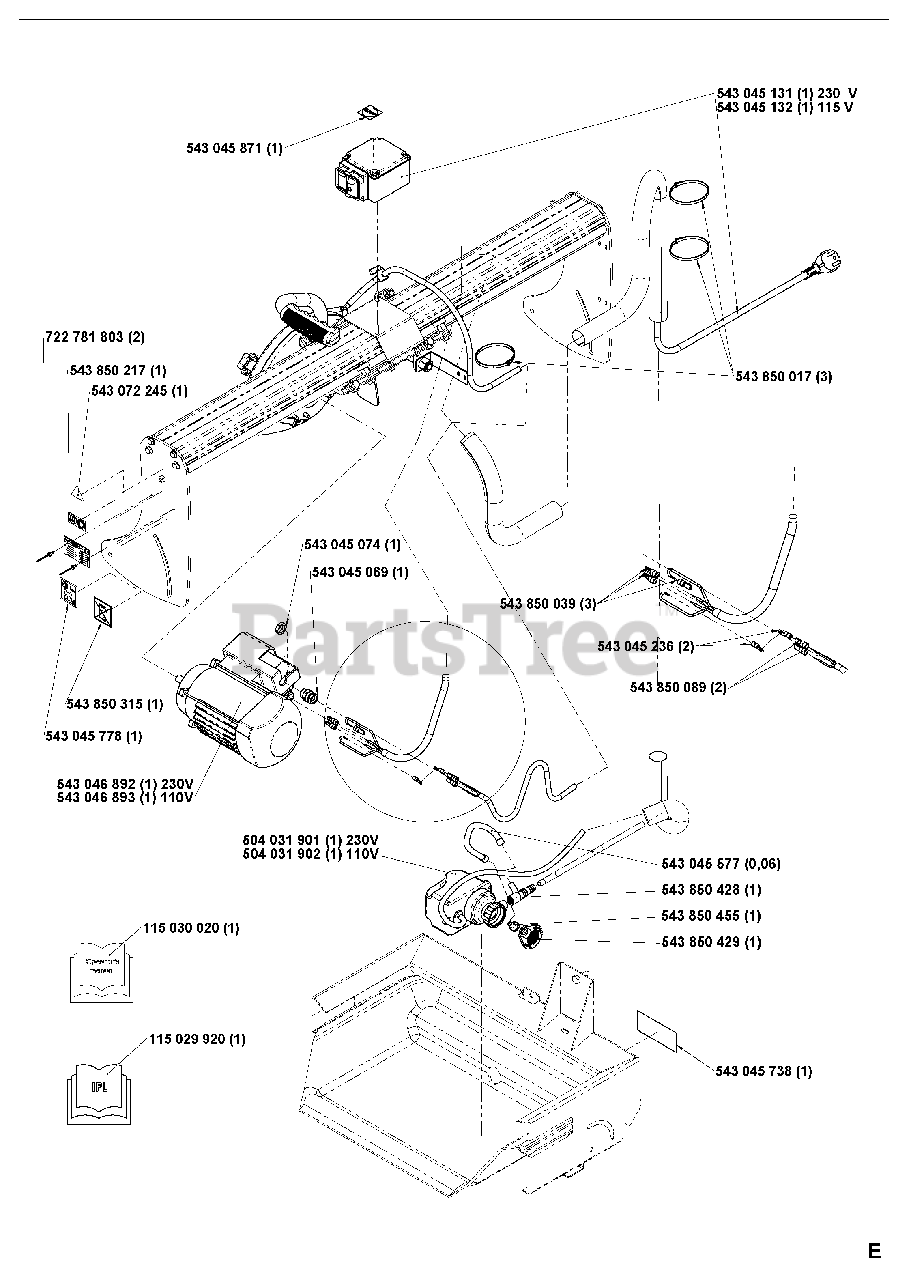

ELECTRICAL Parts Diagram

  • Title

543 85 00-17

Husqvarna Construction 543 85 00-17

TIE STRAP

$2.33

$

Usually ships in 3-10 days

0

543 04 51-31

Husqvarna Construction 543 04 51-31

SWITCH

$65.33

$

Usually ships in 3-10 days

0

543 04 51-32

Husqvarna Construction 543 04 51-32

SWITCH KOA8 110V/

$

$

Not available

543 04 50-69

Husqvarna Construction 543 04 50-69

PRESSE ETOUPE PLASTIQ.D9/

$

$

Not available

543 04 50-74

Husqvarna Construction 543 04 50-74

CONTRE ECROU PLASTIQ.D9/G40090

$

$

Not available

543 04 57-38

Husqvarna Construction 543 04 57-38

UTILISATION DE LA POMPE/

$

$

Not available

543 04 58-71

Husqvarna Construction 543 04 58-71

DECAL

$2.33

$

Usually ships in 3-10 days

0

543 85 02-17

Husqvarna Construction 543 85 02-17

STICKER

$

$

Not available

543 04 57-78

Husqvarna Construction 543 04 57-78

NOISE STICKER 66/

$

$

Not available

543 07 22-45

Husqvarna Construction 543 07 22-45

STICKER

$

$

Not available

543 85 03-15

Husqvarna Construction 543 85 03-15

STICKER

$

$

Not available

543 85 04-28

Husqvarna Construction 543 85 04-28

BYPASS TEE FOR PUMP 25W

$

$

Not available

543 04 55-77

Husqvarna Construction 543 04 55-77

HOSE

$1.99

$

Usually ships in 3-10 days

0

543 85 04-55

Husqvarna Construction 543 85 04-55

ADAPTATOR FOR FILTER

$

$

Not available

543 85 04-29

Husqvarna Construction 543 85 04-29

FILTER

$

$

Not available

504 03 19-01

Husqvarna Construction 504 03 19-01

PUMP

$

$

Not available

504 03 19-02

Husqvarna Construction 504 03 19-02

PUMP

$

$

Not available

722 78 18-03

Husqvarna Construction 722 78 18-03

RIVET

$3.97

$

Usually ships in 3-10 days

0

543 04 68-92

Husqvarna Construction 543 04 68-92

MOTOR

$

$

Not available

543 04 68-93

Husqvarna Construction 543 04 68-93

MOTOR

$

$

Not available

543 85 00-39

Husqvarna Construction 543 85 00-39

CONNECTOR

$

$

Not available

543 85 00-89

Husqvarna Construction 543 85 00-89

ELECTRIC ISOLATED PODMALE

$

$

Not available

543 04 52-36

Husqvarna Construction 543 04 52-36

COSSE BLEUE PLAG D4 BFM4/

$

$

Not available

115 03 00-20

Husqvarna Construction 115 03 00-20

OPERATOR´S MANUAL

$

$

Not available

115 02 99-20

Husqvarna Construction 115 02 99-20

ILLUSTRATED PARTS LIST

$

$

Not available
