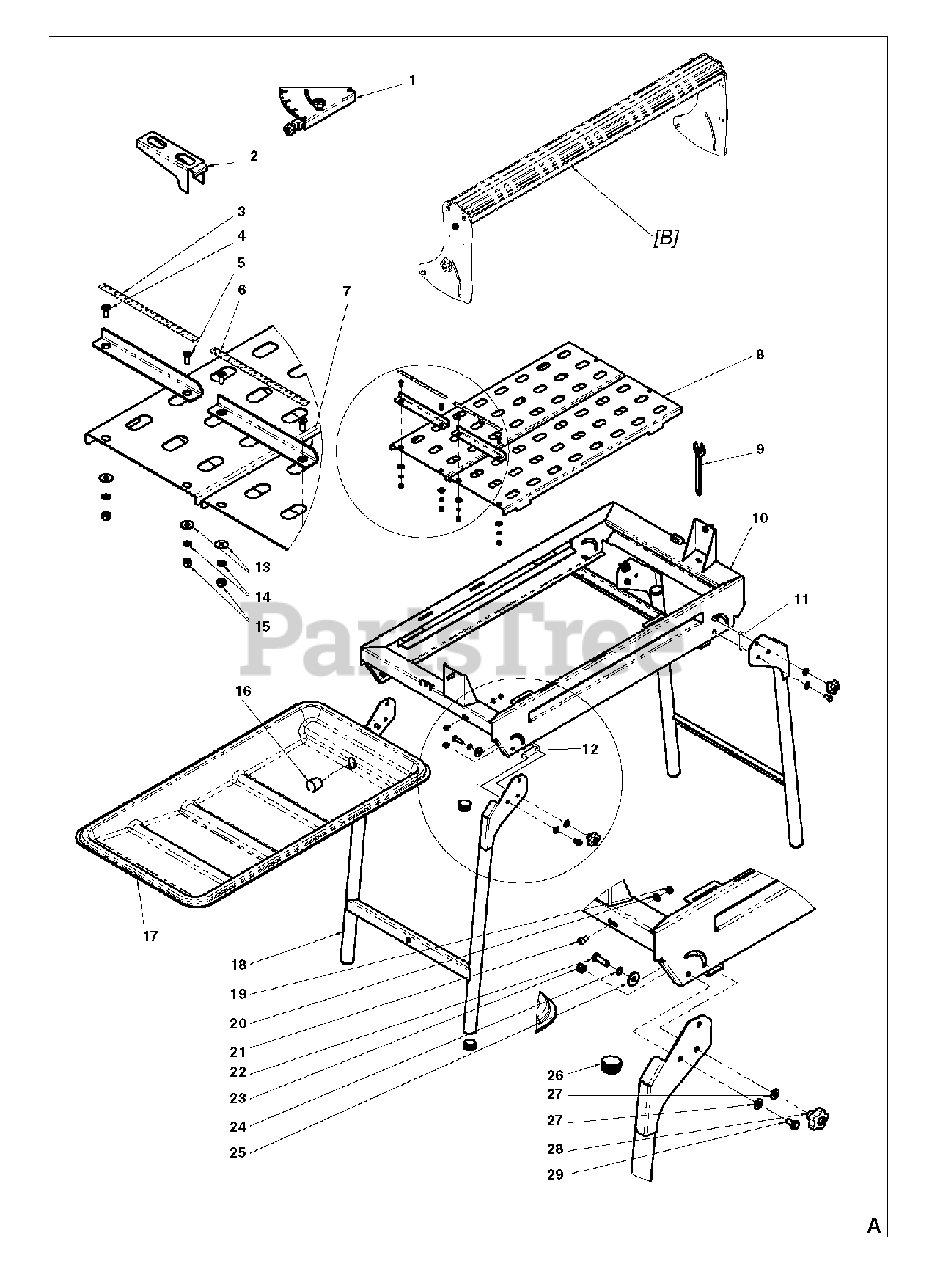

TS 73 R - Husqvarna Tile Saw (2008-06) FRAME Parts Diagram

Tile Saw

FRAME Parts Diagram

  • Title

1

Husqvarna Construction 543 06 98-41

GUIDE

$

$

Not available

2

Husqvarna Construction 544 94 53-01

SUPPORT PLATE

$

$

Not available

3

Husqvarna Construction 543 07 20-05

RULER, LEFT, TS73R

$

$

Not available

4

Husqvarna 724 33 68-51

SCREW CRCSFM

$

$

Not available

6

Husqvarna Construction 543 07 20-04

RULER, RIGHT, TS73R

$

$

Not available

5

Husqvarna 724 33 68-51

SCREW CRCSFM

$

$

Not available

7

Husqvarna Construction 543 05 94-30

MATERIAL STOP/TS73R

$

$

Not available

8

Husqvarna Construction 543 85 04-17

TABLE

$

$

Not available

9

Husqvarna Construction 543 04 58-95

WRENCH

$

$

Not available

10

Husqvarna Construction 544 94 44-01

FRAME

$

$

Not available

11

Husqvarna Construction 543 85 04-54

STOPNUT, REAR

$

$

Currently unavailable

12

Husqvarna Construction 543 85 04-53

STOPNUT, FRONT

$

$

Currently unavailable

13

Husqvarna Construction 543 04 47-17

WASHER

$

$

Not available

14

Husqvarna 735 21 53-01

LOCKWASHER

$

$

Not available

15

Husqvarna Construction 543 04 47-49

NUT

$

$

Not available

16

Husqvarna Construction 543 04 60-51

PLUG

$17.50

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 544 94 43-01

TANK

$

$

Not available

18

Husqvarna Construction 544 94 45-01

LEGS

$

$

Not available

19

Husqvarna 732 21 16-01

NUT

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 543 04 47-07

RONDELLE ACIER M6 BICHRO/

$

$

Currently unavailable

21

Husqvarna 725 53 64-01

SCREW IHSCM

$5.76

$

Usually ships in 3-10 days

0

22

Husqvarna Construction 543 04 46-01

SCREW

$

$

Not available

23

Husqvarna 732 21 18-01

LOCK NUT

$5.99

$

In Stock, Qty 13

0

24

Husqvarna Construction 543 85 02-11

WASHER

$0.35

$

Usually ships in 3-10 days

0

25

Husqvarna Construction 543 04 48-98

WASHER

$4.67

$

Usually ships in 3-10 days

0

26

Husqvarna Construction 543 07 28-45

PAD

$5.83

$

Usually ships in 3-10 days

0

27

Husqvarna Construction 543 04 47-08

WASHER

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna Construction 543 04 60-84

STEERING WHEEL

$7.88

$

Usually ships in 3-10 days

0

29

Husqvarna Construction 543 04 45-99

VIS TH 8/8 8X16 BICHROM/

$4.99

$

In Stock, only 2 left!
