TS 90 - Husqvarna Tile Saw (2015-07) FRAME Parts Diagram

Tile Saw

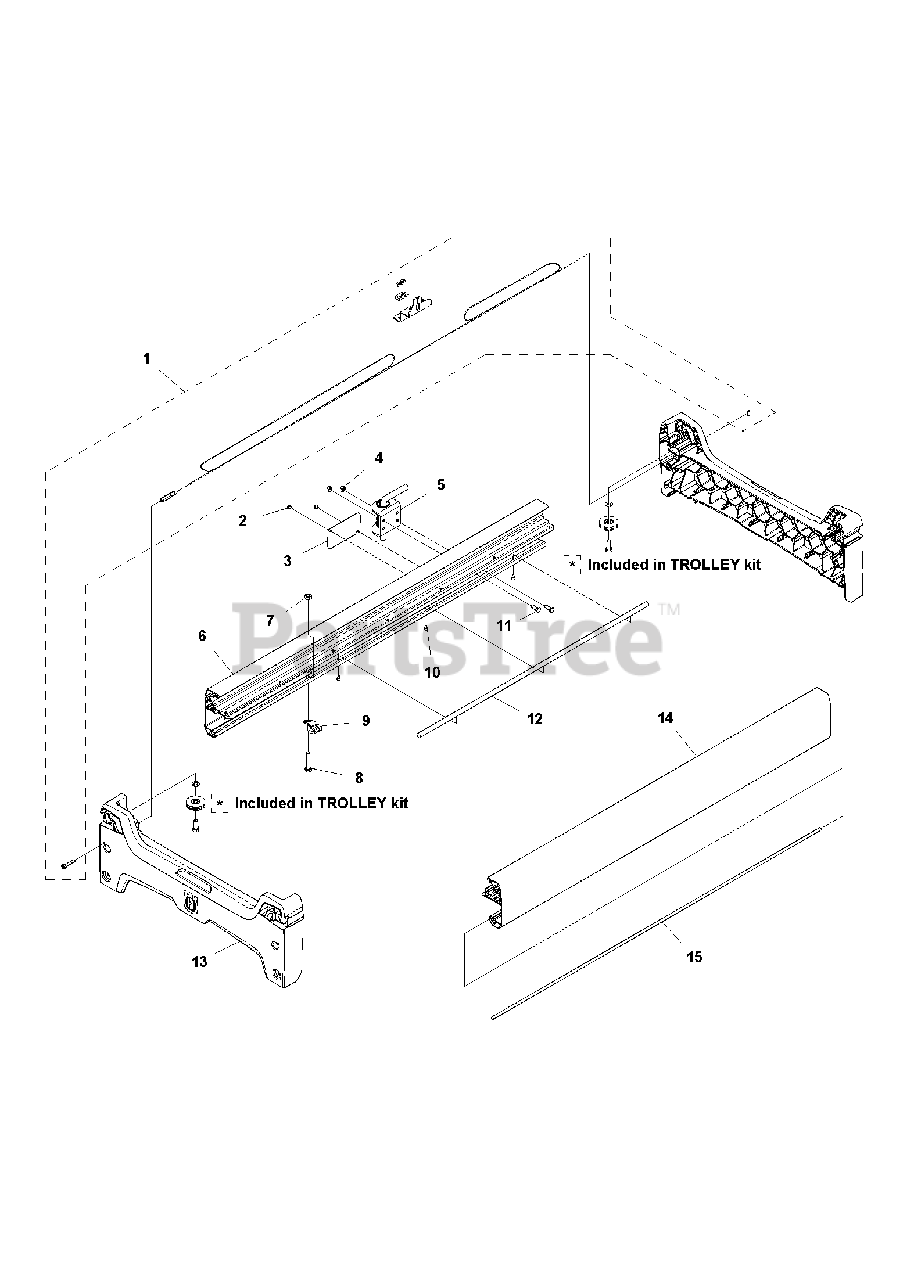

FRAME Parts Diagram

  • Title

1

Husqvarna Construction 588 92 77-01

WIRE

$342.99

$

Usually ships in 3-10 days

0

2

Husqvarna 729 53 40-01

SCREW CCRPANT

$3.49

$

In Stock, Qty 6

0

3

Husqvarna Construction 586 06 80-01

COVER

$12.99

$

Usually ships in 3-10 days

0

4

Husqvarna 732 25 14-01

HEXAGON LOCKING NUT

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 586 03 56-01

LOCK

$60.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 577 69 94-01

PROFILE

$308.99

$

Usually ships in 3-10 days

0

7

Husqvarna 732 25 18-01

HEXAGON LOCKING NUT
(Superseded to 732211801)

$4.99

$

In Stock, Qty 8

0

8

Husqvarna 725 24 59-51

SCREW EHHM

$6.99

$

In Stock, only 4 left!

0

9

Husqvarna Construction 585 24 56-01

CLIP

$32.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 588 71 93-02

SCREW IHSCM

$

$

Currently unavailable

11

Husqvarna 725 23 27-71

SCREW EHHM
(Superseded to 503200003)

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 585 54 39-01

ROD

$200.67

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 585 23 61-01

GABLE

$1106.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 577 69 95-01

PROFILE

$216.99

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 585 54 40-02

ROD

$101.99

$

Usually ships in 3-10 days

0
