TS 90 - Husqvarna Tile Saw (2015-07) MOTOR Parts Diagram

Tile Saw

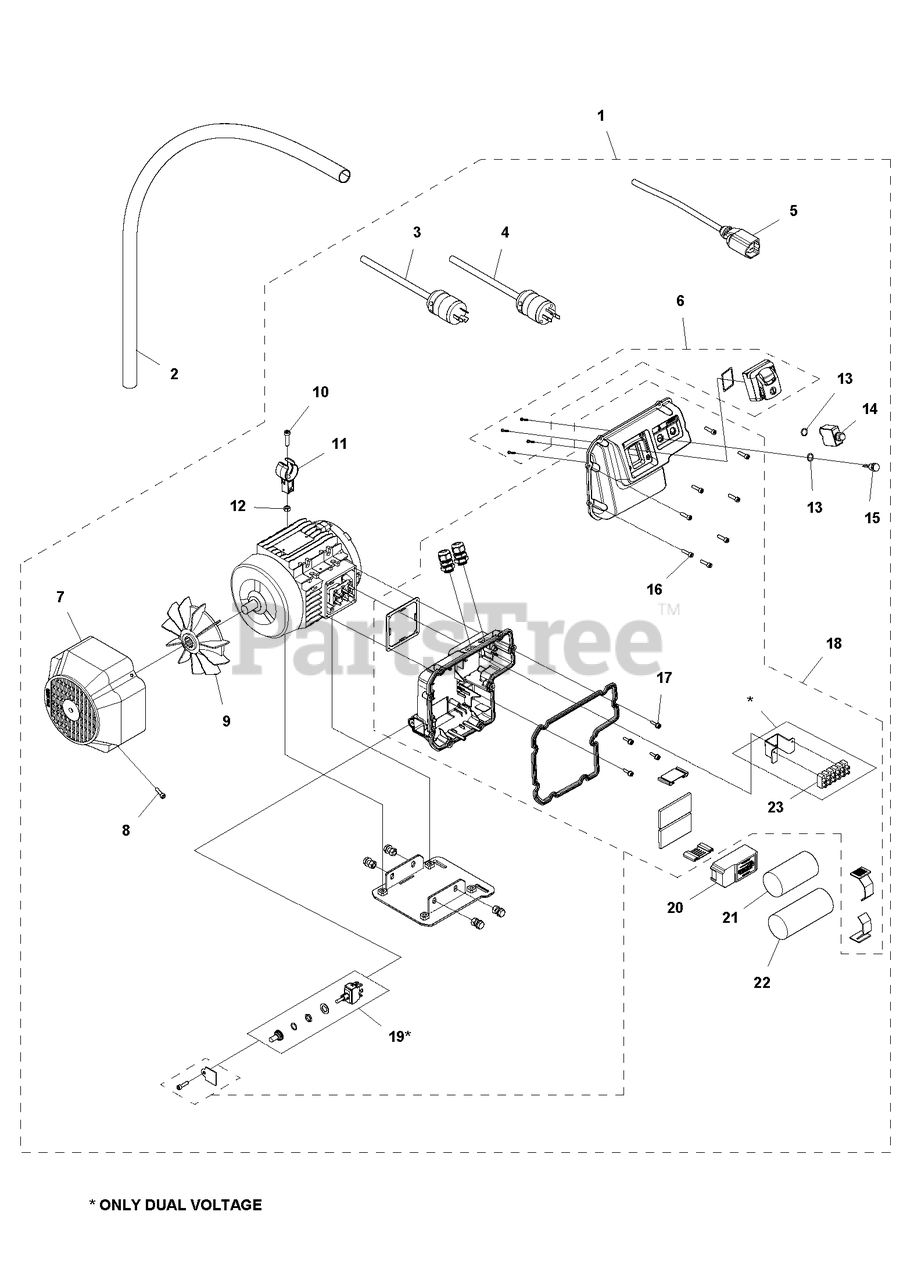

MOTOR Parts Diagram

  • Title

1

Husqvarna Construction 585 22 54-03

MOTOR115V/230V,1.5kW, 60Hz CPL

$1899.99

$

Usually ships in 3-10 days

0

1

Husqvarna Construction 585 22 54-04

MOTOR115V,1.1 kW, 60Hz CPL

$1495.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 585 54 54-02

HOSE

$115.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 586 36 93-02

CABLEUsed for: 585 22 54-04

$95.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 586 36 93-03

CABLEUsed for: 585 22 54-03

$103.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 525 81 45-02

CABLE

$

$

Currently unavailable

6

Husqvarna Construction 588 92 96-01

SWITCH KIT

$64.99

$

In Stock, only 1 left!

0

7

Husqvarna Construction 589 23 41-01

FAN COVERUsed for: 585 22 54-04

$38.99

$

In Stock, only 2 left!

0

7

Husqvarna Construction 589 23 41-02

FAN COVERUsed for: 585 22 54-03

$53.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 724 13 23-01

SCREW CRPANM

$1.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 589 23 45-01

FANUsed for: 585 22 54-04

$27.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 589 23 45-02

FANUsed for: 585 22 54-03

$179.99

$

Usually ships in 3-10 days

0

10

Husqvarna 725 53 70-01

SCREW IHSCM
(Superseded to 725537055)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna Construction 585 54 53-01

CLIP

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 732 25 16-01

HEXAGON LOCKING NUT

$3.99

$

In Stock, Qty 10

0

13

Husqvarna Construction 587 92 36-01

O-RING

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 585 54 41-02

CIRCUIT BREAKERUsed for: 585 22 54-04

$35.99

$

In Stock, only 2 left!

0

14

Husqvarna Construction 585 54 41-03

CIRCUIT BREAKERUsed for: 585 22 54-03

$35.99

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 580 88 16-04

LAMP

$35.99

$

Usually ships in 3-10 days

0

16

Husqvarna 725 53 31-05

SCREW IHSCM
(Superseded to 525824902)

$3.99

$

In Stock, Qty 7

0

17

Husqvarna 725 52 93-01

SCREW IHSCM

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 588 91 91-01

ELECTRONIC BOX

$210.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 589 23 58-01

SWITCH KITDual Voltage Only

$49.99

$

In Stock, only 1 left!

0

20

Husqvarna Construction 586 29 40-01

ELECTRONIC BOX

$296.99

$

Usually ships in 3-10 days

0

21

Husqvarna Construction 585 54 44-01

CAPACITORUsed for: 585 22 54-04

$51.99

$

In Stock, only 2 left!

0

21

Husqvarna Construction 585 54 44-02

CAPACITORUsed for: 585 22 54-03

$59.99

$

Usually ships in 3-10 days

0

22

Husqvarna Construction 585 54 45-01

CAPACITORUsed for: 585 22 54-04

$86.99

$

In Stock, only 2 left!

0

22

Husqvarna Construction 585 54 45-02

CAPACITORUsed for: 585 22 54-03

$90.99

$

In Stock, only 1 left!

0
