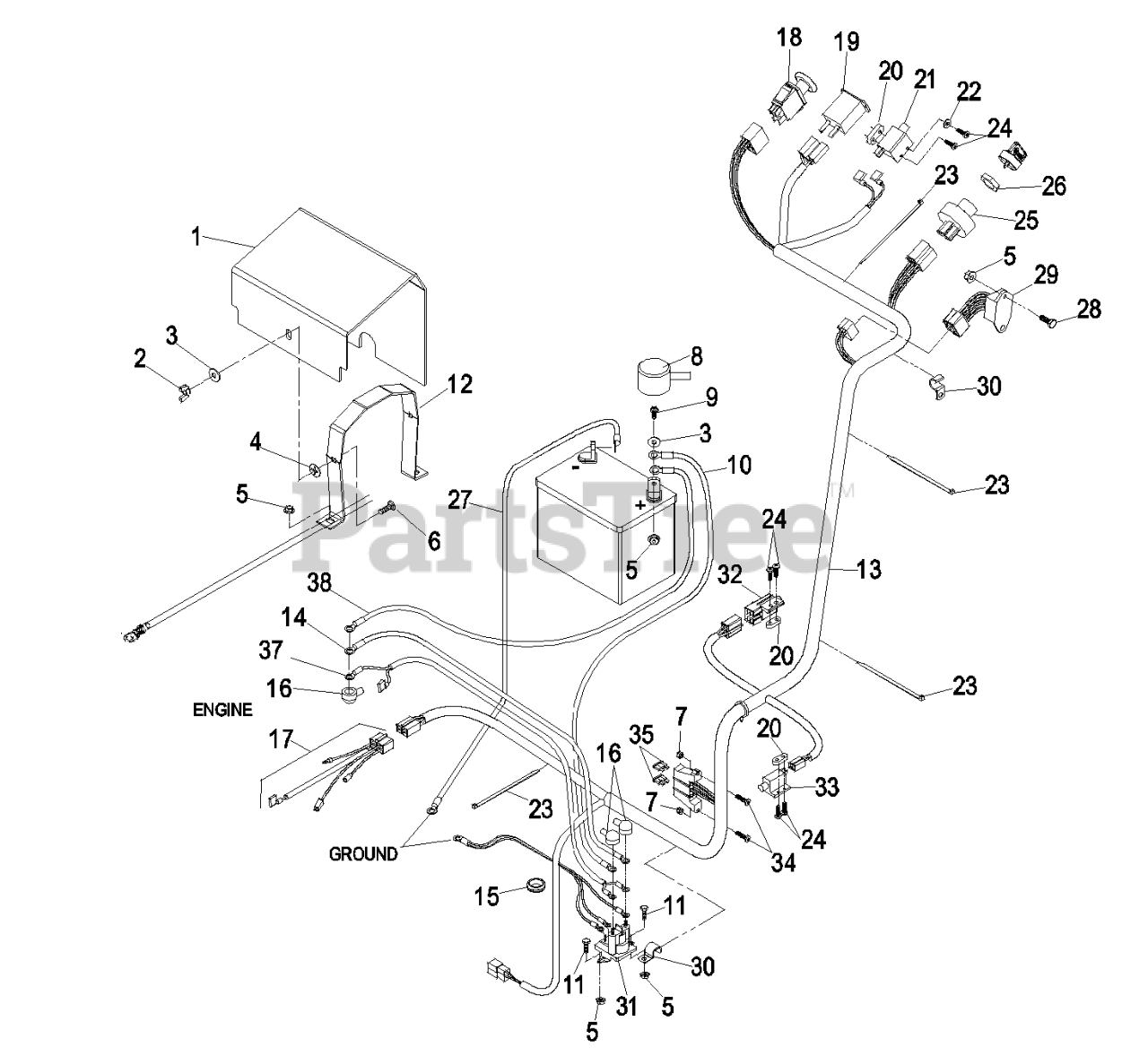

TT20KCE ECS - Exmark Turf Tracer Hydro ECS Walk-Behind Mower, 20HP Kohler (SN: 720000 - 789999) (2008) > Parts Diagrams (8) > Electrical Group

  • Title
103-3424

1

Cover, Battery W/Decal

Part# 103-3424

Note: (1-603105)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $54.15

1-803038

2

Wingnut, 1/4-20

Part# 1-803038

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.11

3256-2

3

Washer, 1/4flat

Part# 3256-2 (Superseded to 3256-2)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.45

1-803037

4

Nut, Retaining 1/4-20

Part# 1-803037

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.11

32128-33

5

Nut, Whizlock 1/4-20

Part# 32128-33

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.62

1-807512

6

Bolt, Carriage 1/4-20x3/4

Part# 1-807512

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

3296-2

7

Nut, Nyloc#10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.24

109-2407

8

Insulator, Battery +

Part# 109-2407

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

321-4

9

Screw, 1/4-20 X 3/4

Part# 321-4

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.78

109-7653

10

Cable, Battery To Solenoid (+)

Part# 109-7653

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.71

321-2

11

Screw, 1/4-20 X 1/2

Part# 321-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.01

1-603814-03

12

Strap, Battery Holddown

Part# 1-603814-03

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $54.15

109-2175

13

Harness, Wiring

Part# 109-2175

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $203.68

109-7654

14

Cable, Solenoid To Starter (+)

Part# 109-7654

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $24.71

154-3286

15

Grommet

Part# 154-3286

Not available

1-543393

16

Insulator, Solenoid

Part# 1-543393

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

1-613262

17

Harness, Wiring

Part# 1-613262

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $25.89

103-5221

18

Switch, Pto

Part# 103-5221

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $37.57

1-513374

19

Meter, Engine Hour

Part# 1-513374

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $82.40

1-633181

20

Plate, Tapped

Part# 1-633181

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

1-513051

21

Switch, No

Part# 1-513051

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $12.29

3256-14

22

Washer, Flat#10

Part# 3256-14

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.13

1-303335

23

Plastic Tie

Part# 1-303335

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.03

3290-500

24

Screw, #10-24 X 5/8

Part# 3290-500

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-543070

25

Switch, Ignition W/Keys

Part# 1-543070

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $29.71

1-603511

Key, Ignition

Part# 1-603511

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.34

103-2106

Key, Exmark Logo

Part# 103-2106

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $3.52

103-0498

26

Nut, Ignition

Part# 103-0498

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $2.23

1-543767

27

Cable, Ground

Part# 1-543767

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.11

321-3

28

Screw, 1/4-20 X 5/8

Part# 321-3

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $0.97

1-613198

29

Module, Safety Interlock

Part# 1-613198

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $145.98

103-1193

30

Clip, Loom Half

Part# 103-1193

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.34

1-513075

31

Switch, 12v Solenoid

Part# 1-513075 (Superseded to 117-1197)

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $31.30

1-633111

32

Switch, N.O/N.C

Part# 1-633111

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $14.52

1-513152

33

Switch, N.C

Part# 1-513152

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $11.17

1-803075

34

Screw, #10-24 X 3/4

Part# 1-803075

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.11

1-816001

35

Fuse, Blade 20 Amp

Part# 1-816001

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $4.69

3296-2

36

Nut, Nylo C#10-24

Part# 3296-2

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $1.24

109-8395

37

Harness, Solenoid To Starter

Part# 109-8395

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 5 to 8 business days

Your price: $56.50

109-7630

38

Cable, Solenoid To Starter (+)

Part# 109-7630

OEM Warranty Repair Part for Exmark

Usually leaves our warehouse in 1 business day

Your price: $30.60
