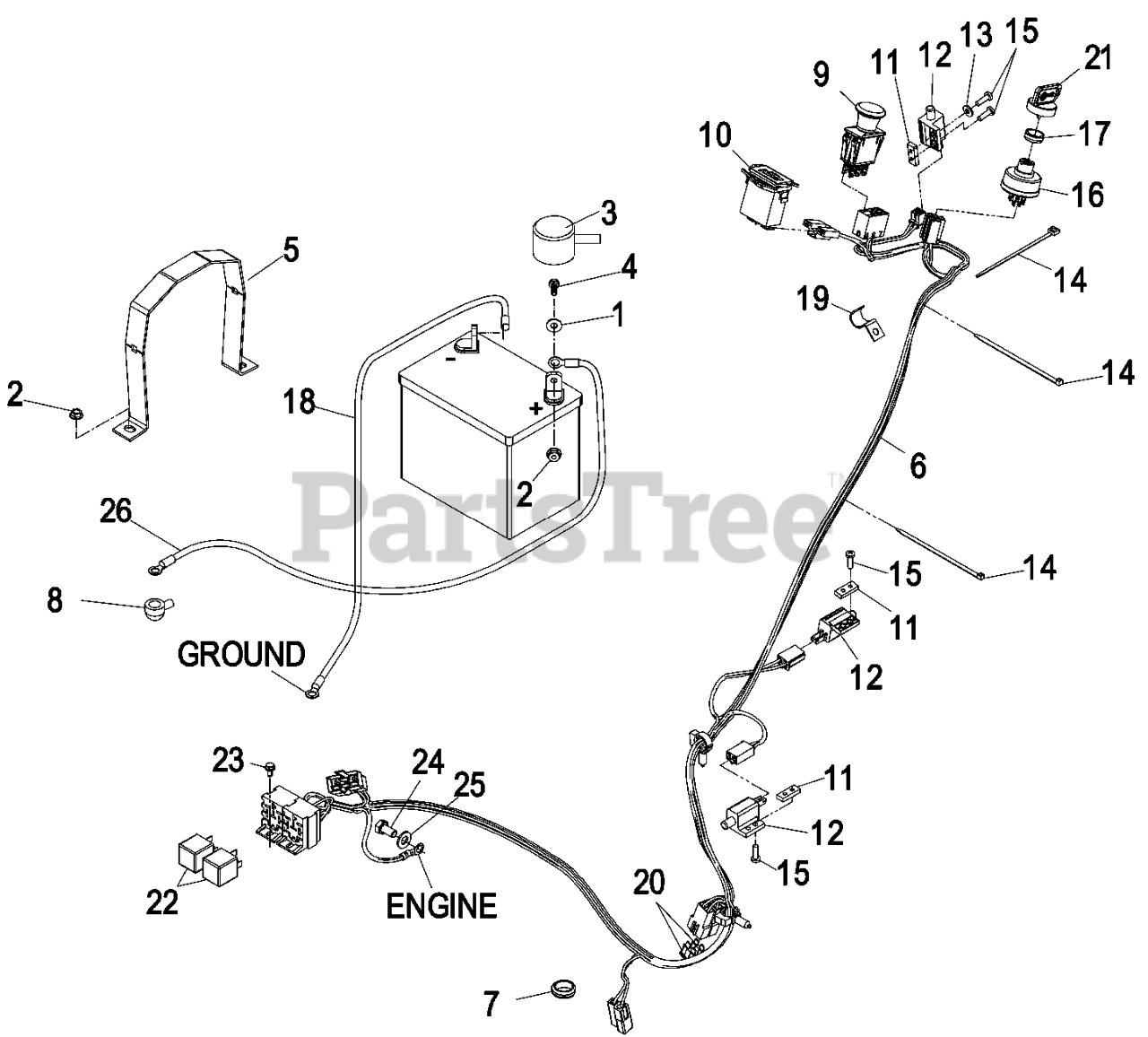

TT20KCE - Exmark Turf Tracer Hydro ECS Walk-Behind Mower, 20hp Kohler (SN: 850000 - 919999) (2010) Electrical Group Parts Diagram

Turf Tracer Hydro ECS Walk-Behind Mower, 20hp Kohler

Electrical Group Parts Diagram

  • Title

1

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

2

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

3

Exmark 109-2407

INSULATOR-BATTERY

$5.49

$

In Stock, only 2 left!

0

4

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-603814-03

STRAP,BATTERY HOLDDOWN

$94.99

$

Usually ships in 3-6 days

0

6

Exmark 109-2175

HARNESS,TTH ECS WIRING

$

$

Not available

7

Exmark 1-543286

GROMMET

$13.99

$

Usually ships in 3-6 days

0

8

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 1 left!

0

9

Exmark 103-5221

SWITCH-PTO

$61.99

$

In Stock, Qty 20+

0

10

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$74.99

$

In Stock, Qty 5

0

11

Exmark 1-633181

PLATE-TAPPED

$6.99

$

In Stock, Qty 18

0

12

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$20.99

$

In Stock, Qty 20+

0

13

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

14

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

15

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

16

Exmark 103-0206

109-4736
(Superseded to 109-4736)

$44.99

$

In Stock, Qty 20+

0

17

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 20+

0

18

Exmark 1-543767

WIRE-GROUND

$22.99

$

In Stock, only 2 left!

0

19

Exmark 103-1193

CLIP-HALF, LOOM

$

$

Not available

20

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.99

$

In Stock, only 3 left!

0

21

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

22

Exmark 1-643275

RELAY

$25.99

$

In Stock, Qty 20+

0

23

Exmark 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

24

Exmark 33114-016

SCREW-HH

Note: (KAW)

$0.99

$

In Stock, Qty 10

0

25

Exmark 33094-00

WASHER-PLAIN

Note: (KAW)

$0.99

$

In Stock, only 2 left!

0

26

Exmark 109-7630

POSITIVE BATTERY CABLE AS

Note: Includes items 3 & 8.

$45.99

$

In Stock, only 2 left!

0
