Exmark TT20KCE - Exmark Turf Tracer Hydro ECS Walk-Behind Mower, 20hp Kohler (SN: 850000 - 919999) (2010) Engine Deck Group (Cont.) Parts Lookup with Diagrams

1

Exmark 109-0346

CAP-FUEL, GAS

$22.99

$

In Stock, Qty 6

2

Exmark 103-2893

ASM,FUEL TANK W/B

$325.99

$

Usually ships in 3-6 days

3

Exmark 1-633023

STUD

Note: Use Pro-lock, retaining type (P/N 1-840023, .5cc tube) on stud threads going into the tank.

$6.99

$

In Stock, only 2 left!

4

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

5

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, Qty 16

6

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

7

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

8

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

9

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

10

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-lock, nut type (P/N 1-840022, .5ml tube) on fuel fitting threads.

$38.99

$

In Stock, only 1 left!

11

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 20+

12

Exmark 109-0303

HOSE-FUEL

Note: (KAW)

$6.99

$

Usually ships in 3-6 days

Exmark 109-0293

HOSE-FUEL

Note: (KOH)

$6.99

$

Usually ships in 3-6 days

13

Exmark 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 20+

14

Exmark 109-0293

HOSE-FUEL

Note: (KAW)

$6.99

$

Usually ships in 3-6 days

Exmark 109-0304

HOSE-FUEL

Note: (KOH)

$2.49

$

In Stock, Qty 5

15

Exmark ~KAWASAK1

Part No 49019-7001 Fuel Filter

$

Currently unavailable 

Exmark ~KOHLER

Part No 2405010 Fuel Filter

$

Currently unavailable 

16

Exmark 109-4544

LEVER,PRK BRK W/DECALS

$98.99

$

Usually ships in 3-6 days

17

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 5

18

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

19

Exmark 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

20

Exmark 1-413347

SLEEVE-BUSHING

$2.99

$

In Stock, Qty 18

21

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

22

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

23

Exmark 109-4078

LINKAGE, PARK BRAKE

$61.99

$

Usually ships in 3-6 days

24

Exmark 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 13

25

Exmark 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

26

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$17.99

$

In Stock, Qty 6

27

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

28

Exmark 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

29

Exmark 1-323161

SPRING-IDLER

$12.99

$

In Stock, only 2 left!

30

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

31

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

32

Exmark 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 14

33

Exmark 103-2205-03

116-9159

(Superseded to 116-9159) 

$242.99

$

Usually ships in 3-6 days

34

Exmark 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

35

Exmark 1-413344

BUSHING-PIVOT

$20.99

$

In Stock, only 1 left!

36

Exmark 116-1823

116-4398

(Superseded to 116-4398) 

Note: (KAW)

$502.99

$

Usually ships in 3-6 days

37

Exmark 114-3549

NUT

Note: (KAW)

$1.99

$

In Stock, Qty 20+

38

Exmark 114-3550

WASHER-LOCK

Note: (KAW)

$1.49

$

In Stock, Qty 13

39

Exmark 1-653313

GASKET-EXHAUST

Note: (KAW)

$5.49

$

Usually ships in 3-6 days

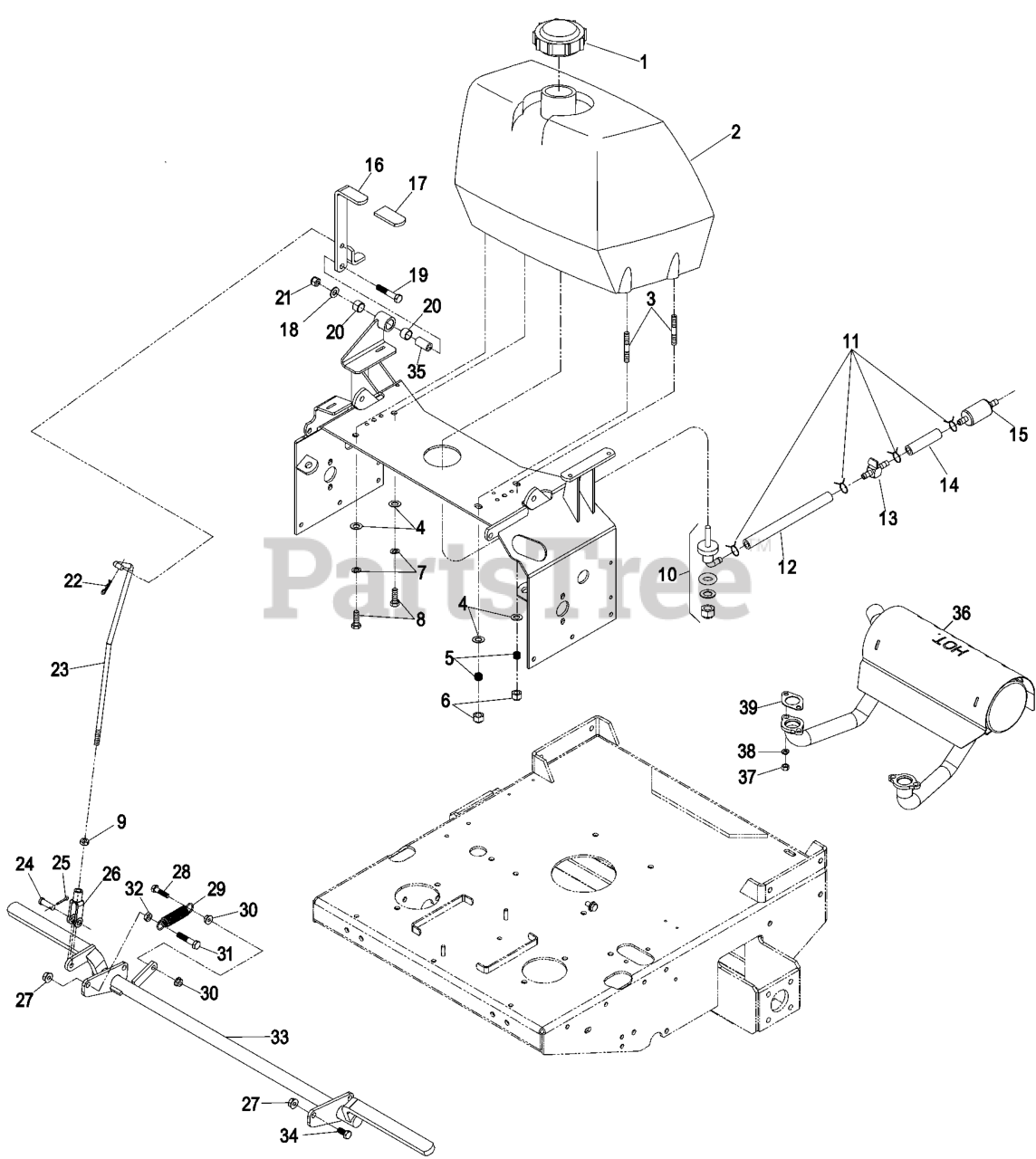

TT20KCE - Exmark Turf Tracer Hydro ECS Walk-Behind Mower, 20hp Kohler (SN: 850000 - 919999) (2010) Engine Deck Group (Cont.) Parts Diagram

Engine Deck Group (Cont.) Parts Diagram
