TT5217KAEC - Exmark 52" Turf Tracer Hydro Walk-Behind Mower, 17hp Kawasaki (SN: 260000 - 319999) (2001) 48" Mower Deck Parts Diagram

52" Turf Tracer Hydro Walk-Behind Mower, 17hp Kawasaki

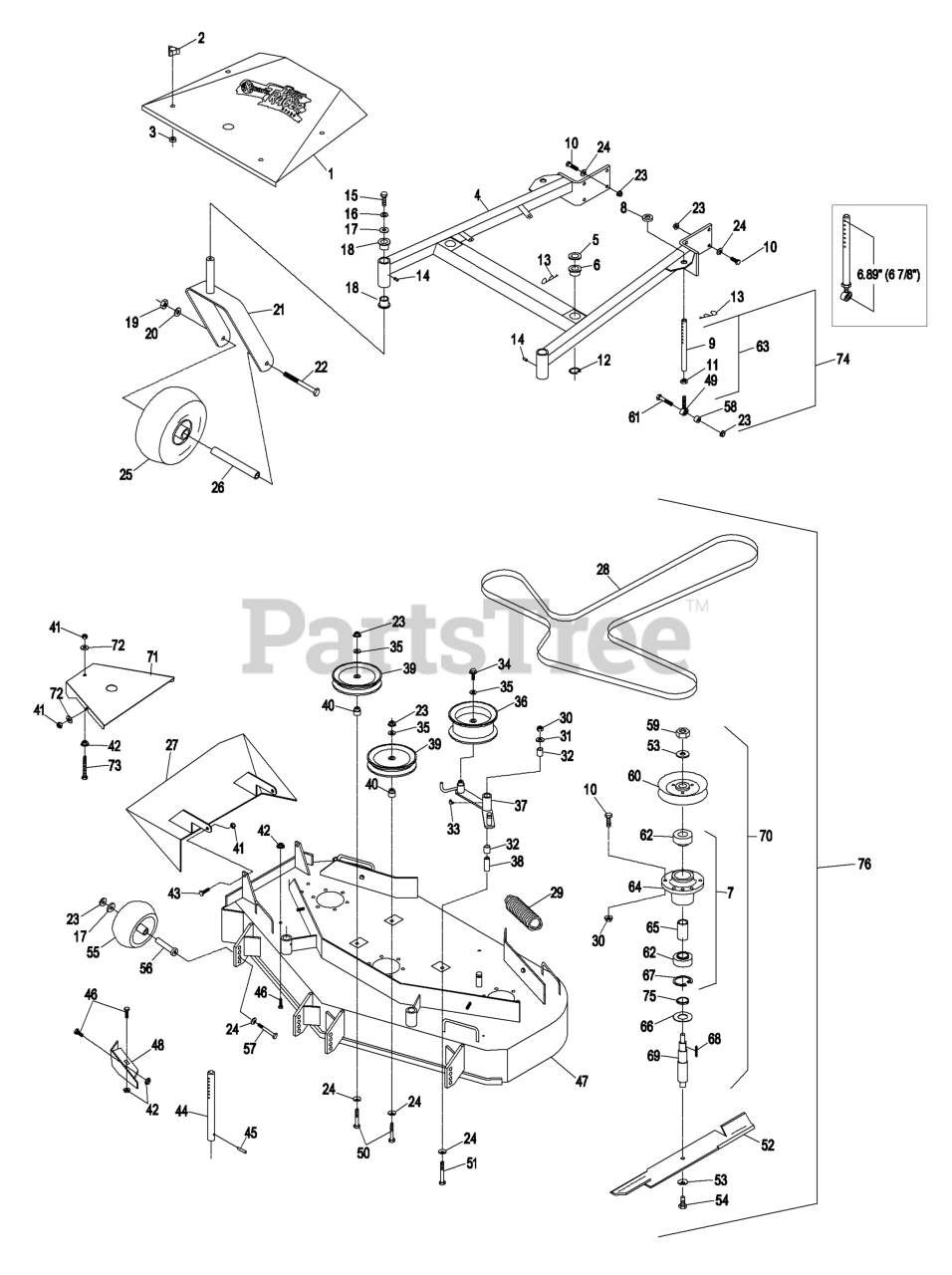

48" Mower Deck Parts Diagram

  • Title

1

Exmark 1-414387

116-2711
(Superseded to 116-2711)

$395.99

$

In Stock, only 1 left!

0

Exmark 1-413101-01

Shield, Belt

$

$

Currently unavailable

2

Exmark 1-323385

KNOB-3 PRONG

$5.99

$

In Stock, Qty 20+

0

3

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

4

Exmark 1-414310

DECK SUPPORT W/BSHGS 48"

$1386.99

$

Usually ships in 3-6 days

0

Exmark 1-412110-01

Support Weldmt

$

$

Currently unavailable

5

Exmark 1-413425

SPACER-DECK SUPPORT

$6.99

$

In Stock, Qty 11

0

6

Exmark 1-513336

BUSHING-DECK

$26.99

$

In Stock, Qty 20+

0

7

Exmark 1-634619

103-8280
(Superseded to 103-8280)

$290.99

$

In Stock, only 2 left!

0

8

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

9

Exmark 1-413525

LINK,SUPPORT

$52.99

$

In Stock, Qty 8

0

10

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

11

Exmark 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 13

0

12

Exmark 32120-33

RING-RETAINING

$7.99

$

In Stock, Qty 20+

0

13

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

0

14

Exmark 302-52

FITTING-GREASE

$6.99

$

In Stock, Qty 19

0

15

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Exmark 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

17

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

18

Exmark 1-303514

BEARING-FLANGED

$13.99

$

In Stock, Qty 20+

0

19

Exmark 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

20

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 11

0

21

Exmark 1-522143-01

116-7941-01
(Superseded to 116-7941-01)

$104.99

$

Usually ships in 3-6 days

0

22

Exmark 325-20

SCREW-HH

$8.49

$

In Stock, Qty 20+

0

23

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

24

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

25

Exmark 103-1224

103-2171
(Superseded to 103-2171)

Note: Early models with standard pistol grip handles have pneumatic casters (with valve stems - order assembly part number 1-513648). Later models with standard pistol grip handles and all models with ECS handles have semi-pneumatic casters (without valve stems

$137.99

$

In Stock, only 3 left!

0

Exmark 1-513648

103-2171
(Superseded to 103-2171)

Note: Early models with standard pistol grip handles have pneumatic casters (with valve stems - order assembly part number 1-513648). Later models with standard pistol grip handles and all models with ECS handles have semi-pneumatic casters (without valve stems

$137.99

$

In Stock, only 3 left!

0

Exmark 1-513819

Roller Bearing (All)

$

$

Currently unavailable

Exmark 1-513810

BUSHING

$6.49

$

In Stock, Qty 20+

0

Exmark 1-513807

103-2171
(Superseded to 103-2171)

$137.99

$

In Stock, only 3 left!

0

Exmark 1-513808

TIRE

$54.99

$

In Stock, only 2 left!

0

26

Exmark 1-513547

SPACER

$13.99

$

In Stock, Qty 20+

0

27

Exmark 1-522478-01

103-2431-01
(Superseded to 103-2431-01)

$174.99

$

In Stock, only 1 left!

0

28

Exmark 1-413093

BELT - V, B

$152.99

$

In Stock, only 2 left!

0

29

Exmark 1-633151

116-6317
(Superseded to 116-6317)

$30.99

$

In Stock, Qty 15

0

30

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

31

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

32

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 17

0

33

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 5

0

34

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 14

0

35

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Exmark 1-413099

116-4666
(Superseded to 116-4666)

$72.99

$

In Stock, only 1 left!

0

37

Exmark 1-412394

1-414398
(Superseded to 1-414398)

$

$

Not available

Exmark 1-414398

DISCONTINUED

$

$

Not available

38

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 14

0

39

Exmark 1-613098

PULLEY-IDLER

$50.99

$

In Stock, Qty 7

0

40

Exmark 1-413113

BUSHING-IDLER

$6.49

$

In Stock, Qty 20+

0

41

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

42

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

43

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

44

Exmark 1-603001

ROD,DECK SUPPORT

$54.99

$

In Stock, only 2 left!

0

45

Exmark 1-806332

32121-15
(Superseded to 32121-15)

$1.99

$

In Stock, Qty 20+

0

46

Exmark 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

47

Exmark 1-414384

ASM,DECK W/DECALS TTHP/MH

$2908.99

$

Usually ships in 3-6 days

0

Exmark 1-412106-01

1-414384
(Superseded to 1-414384)

$2908.99

$

Usually ships in 3-6 days

0

48

Exmark 1-522480-01

116-2297-01
(Superseded to 116-2297-01)

$36.99

$

In Stock, only 1 left!

0

49

Exmark 1-613204

BALLJOINT

$35.99

$

In Stock, Qty 20+

0

50

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

51

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

52

Exmark 1-323515

103-6583-S
(Superseded to 103-6583-S)

$34.99

$

In Stock, Qty 9

0

Exmark 1-413438

103-1577-S
(Superseded to 103-1577-S)

$44.99

$

In Stock, only 3 left!

0

Exmark 1-403148

103-6581-S
(Superseded to 103-6581-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK483(48")

$36.99

$

In Stock, Qty 18

0

Exmark 1-403149

103-6738-S
(Superseded to 103-6738-S)

Note: (Optional)

$37.99

$

In Stock, only 4 left!

0

53

Exmark 1-513208

WASHER-SPRING

$9.99

$

In Stock, Qty 8

0

54

Exmark 103-1026

SCREW-CAP

$5.49

$

In Stock, Qty 14

0

55

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

56

Exmark 1-603602

BUSHING-ROLLER

$25.99

$

In Stock, Qty 20+

0

57

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

58

Exmark 1-603050

SPACER

$7.99

$

In Stock, Qty 11

0

59

Exmark 3219-6

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

60

Exmark 1-413424

SHEAVE,W/HUB 5.72

Note: Use antisieze on bore of sheaves and bearings

$88.99

$

In Stock, Qty 5

0

61

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

62

Exmark 1-513016

BEARING

Note: Use antisieze on bore of sheaves and bearings

$90.99

$

In Stock, Qty 20+

0

63

Exmark 1-414521

1-411532
(Superseded to 1-411532)

Note: Link assembly must be assembled to 6.89" (or approximately 6 7/8") length from center of ball joint to center of furthest hole. See "48" Mower Deck" illustration

$168.99

$

In Stock, only 2 left!

0

64

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$290.99

$

In Stock, only 2 left!

0

65

Exmark 1-323528

SPACER-BEARING

$9.99

$

In Stock, Qty 7

0

66

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, only 2 left!

0

67

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, only 1 left!

0

68

Exmark 1-807268

KEY-RECTANGLE

$2.99

$

In Stock, Qty 10

0

69

Exmark 1-413330

SHAFT,SPINDLE

$106.99

$

In Stock, only 3 left!

0

70

Exmark 1-414335

HOUSING,CUTTER COMPLETE

$579.99

$

Usually ships in 3-6 days

0

71

Exmark 1-653482

103-2970-01
(Superseded to 103-2970-01)

$41.99

$

In Stock, only 4 left!

0

72

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

73

Exmark 1-800017

BOLT,TAP HH

$7.99

$

In Stock, only 1 left!

0

74

Exmark 1-611216

1-411532
(Superseded to 1-411532)

$168.99

$

In Stock, only 2 left!

0

75

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 5

0

76

Exmark 103-0321

Assembly, Cutting Deck Complete

$

$

Currently unavailable

Exmark 1-850337

PAINT,SPRAY RED

$36.99

$

In Stock, Qty 10

0
