TTA749AKC604N0 - Exmark 60" Turf Tracer Autonomous Walk-Behind Mower (SN: 417930746 & Above) (Rev B) (2025) ACS Assembly Parts Diagram

60" Turf Tracer Autonomous Walk-Behind Mower

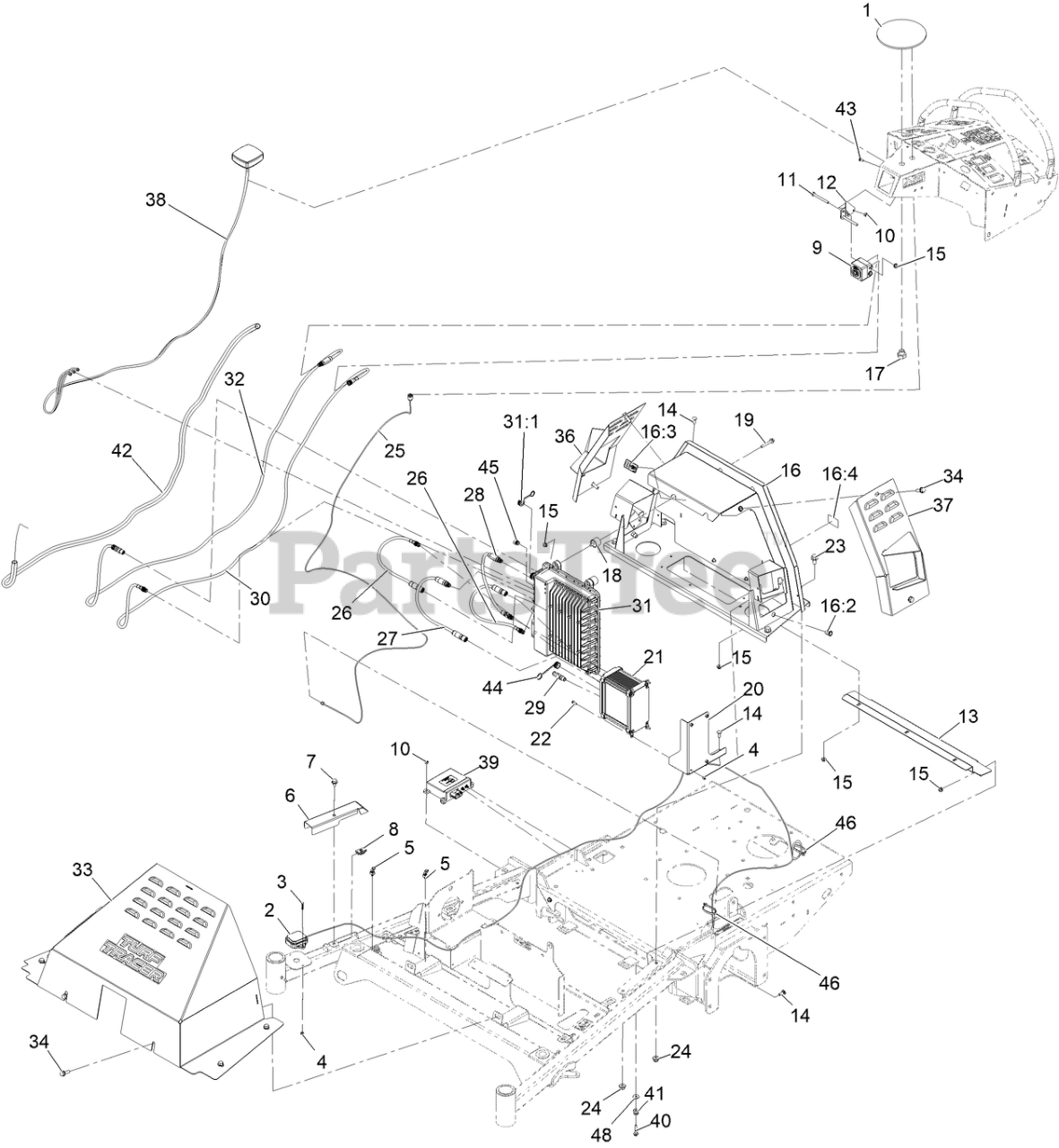

ACS Assembly Parts Diagram

  • Title

1

Exmark 142-9055

ANTENNA-GPS

$2016.99

$

Usually ships in 0 days

0

2

Exmark 142-9582

ANTENNA-GPS

$215.99

$

Usually ships in 0 days

0

3

Exmark 360-0272

Screw

$0.99

$

In Stock, only 2 left!

0

4

Exmark 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

5

Exmark 32180-400

CLIP-TIE, FIR TREE W/TIE, 5MM/.196"" HOLE

$5.99

$

Usually ships in 0 days

0

6

Exmark 146-2600-01

COVER-WIRE

$33.99

$

Usually ships in 0 days

0

7

Exmark 3234-30

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

8

Exmark 110-3510

Nut-Retainer

$6.99

$

Usually ships in 3-6 days

0

9

Exmark 142-9884

CAMERA - 180 DEGREE FOV

$2016.99

$

Usually ships in 0 days

0

10

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

11

Exmark 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

12

Exmark 146-4807-03

BRACKET-CAMERA

$50.99

$

Usually ships in 0 days

0

13

Exmark 146-2673-03

SHIELD-HEAT, LOWER

$90.99

$

Usually ships in 0 days

0

14

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

15

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Exmark 146-5963

Acs Mount ASM

$

$

Currently unavailable

16:2

Exmark 138-2899

Nut-Clinch

$

$

Currently unavailable

16:3

Exmark 137-8127

DECAL-NO SPRAY

$6.49

$

Usually ships in 0 days

0

16:4

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 1 left!

0

17

Exmark 146-5525

SCREW-HH,

$18.99

$

Usually ships in 0 days

0

18

Exmark 125-2674

MOUNT-CYLINDRICAL

$6.99

$

Usually ships in 3-6 days

0

19

Exmark 32105-18

Screw-HHF

$0.99

$

Usually ships in 3-6 days

0

20

Exmark 146-2681-03

BRACKET-CONTROLLER

$50.99

$

Usually ships in 0 days

0

21

Exmark 161-7459

Controller - Radar

$

$

Currently unavailable

22

Exmark 112-3169

SCREW-HHF, SERRATED

$0.99

$

Usually ships in 3-6 days

0

23

Exmark 3234-1

Screw-HH Flg 3/8-16 X 3/4

$1.99

$

In Stock, Qty 14

0

24

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Exmark 142-9883

GPS ANTENNA CABLE

$672.99

$

Usually ships in 0 days

0

26

Exmark 161-7456

CABLE - RADAR IO M/F

$297.99

$

Usually ships in 0 days

0

27

Exmark 142-9890

CABLE -RADAR PWR

$741.99

$

Usually ships in 0 days

0

28

Exmark 142-9891

CABLE - RADAR ETHERNET

$534.99

$

Usually ships in 0 days

0

29

Exmark 122-3451

CABLE ASSY, ACS NOVA 2.1, RADAR PLUG

$164.99

$

Usually ships in 0 days

0

30

Exmark 142-9895

CABLE - CAMERA PWR

$178.99

$

Usually ships in 0 days

0

31

Exmark 161-7460

Controller-Autonomous

$

$

Currently unavailable

31:1

Exmark 142-9894

COVER - M12

$20.99

$

Usually ships in 0 days

0

32

Exmark 142-9896

CABLE - CAMERA IO

$611.99

$

Usually ships in 0 days

0

33

Hood ASM

Note: Not serviced separately

$

$

Not available

34

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

36

Exmark 146-5229-05

WELD-PANEL ACCESS, RH

$137.99

$

Usually ships in 0 days

0

37

Exmark 146-5228-05

WELD-PANEL ACCESS, LH

$137.99

$

Usually ships in 0 days

0

38

Exmark 161-7450

ANTENNA - CELL/WIFI

$227.99

$

Usually ships in 0 days

0

39

Exmark 146-5748

KIT-INS

$4121.99

$

Usually ships in 0 days

0

40

Exmark 146-5204

SCREW-SHOULDER

$11.99

$

Usually ships in 0 days

0

41

Exmark 161-7455

ISOLATOR-RUBBER

$1.49

$

Usually ships in 0 days

0

42

Exmark 146-4810

LOOM-SPLIT

$26.99

$

Usually ships in 0 days

0

43

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 16

0

44

Exmark 161-7454

COVER - M16

$23.99

$

Usually ships in 0 days

0

45

Exmark 161-7479

PLUG - LIDAR

$9.99

$

Usually ships in 0 days

0

46

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

48

Exmark 3256-61

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0
