TTA749AKC604N0 - Exmark 60" Turf Tracer Autonomous Walk-Behind Mower (SN: 417930746 & Above) (Rev B) (2025) Battery Assembly Parts Diagram

60" Turf Tracer Autonomous Walk-Behind Mower

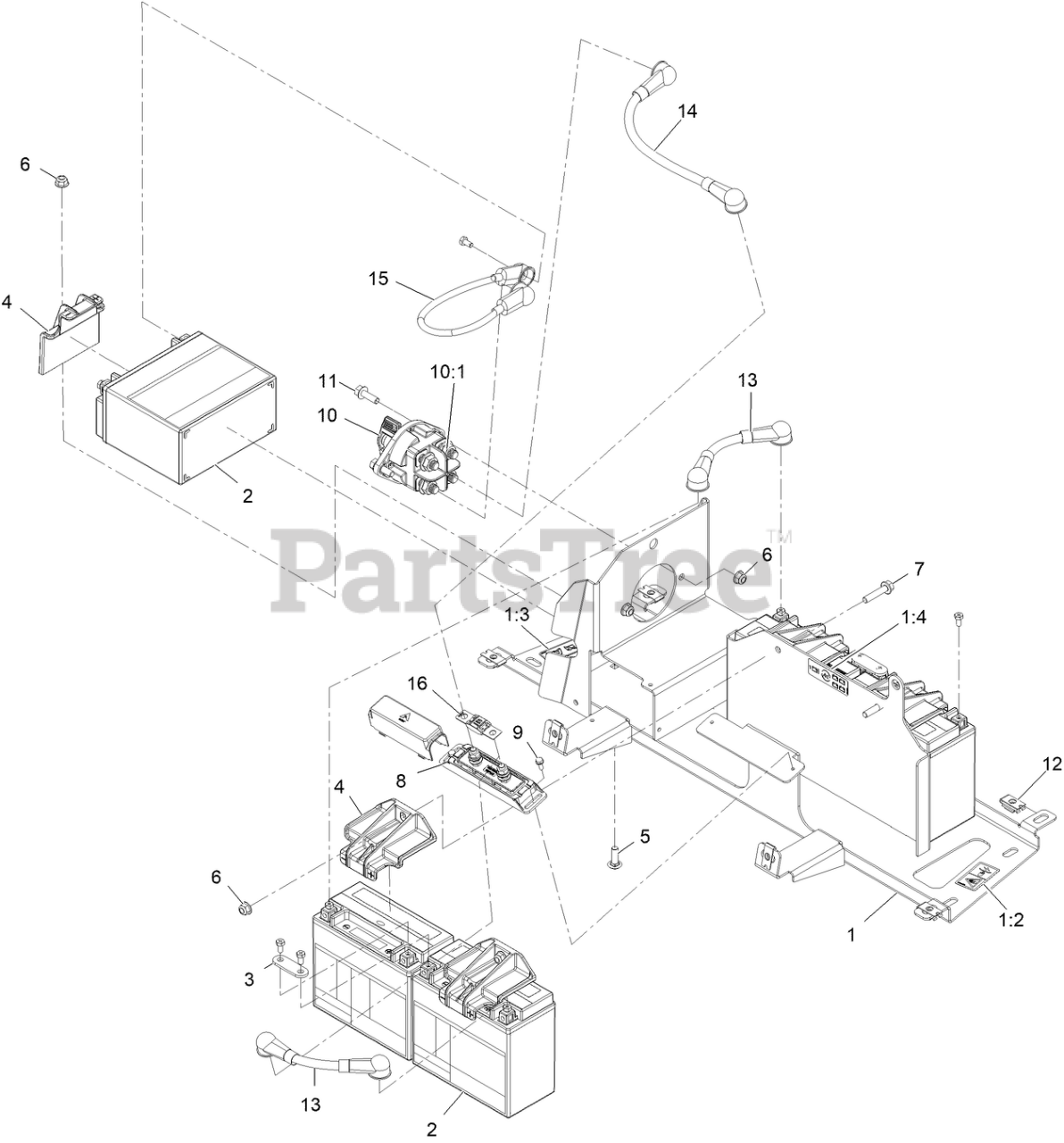

Battery Assembly Parts Diagram

  • Title

1

Exmark 146-3850

SUPPORT-BATTERY

$319.99

$

Usually ships in 0 days

0

1:2

Exmark 146-3693

DECAL-SHOCK HAZARD

$20.99

$

Usually ships in 0 days

0

1:3

Exmark 144-7008

DECAL-SERVICE, SHUT-OFF

$7.99

$

Usually ships in 0 days

0

1:4

Exmark 146-5916

Decal-Battery Replacement

$

$

Currently unavailable

2

Exmark 142-7345

BATTERY-AGM

$244.90

$

Usually ships in 4-12 days

0

3

Exmark 146-2661

BAR-BUS, 2 POS

$33.99

$

Usually ships in 0 days

0

4

Exmark 135-4422

HOLD DOWN, BATTERY

$8.49

$

Usually ships in 3-6 days

0

5

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 3 left!

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 7

0

7

Exmark 115-1794

SCREW-HHF

$2.49

$

In Stock, Qty 5

0

8

Exmark 145-4958

HOLDER-FUSE

$30.99

$

Usually ships in 3-6 days

0

9

Exmark 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

10

Exmark 122-0603

SWITCH-DISCONNECT

$294.99

$

Usually ships in 3-6 days

0

10:1

Exmark 33006-00

Nut-HF

$1.99

$

Usually ships in 3-6 days

0

11

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

12

Exmark 110-3510

Nut-Retainer

$6.99

$

Usually ships in 3-6 days

0

13

Exmark 146-3619

CABLE-BATT, RD ASM

$69.99

$

Usually ships in 0 days

0

14

Exmark 146-3620

CABLE-BATT,RD ASM

$88.99

$

Usually ships in 0 days

0

15

Exmark 146-3621

CABLE-BATT, RD ASM

$50.99

$

Usually ships in 0 days

0

16

Exmark 122-2563

FUSE-150A

$18.99

$

Usually ships in 0 days

0
