Exmark TTA749AKC604N0 - Exmark 60" Turf Tracer Autonomous Walk-Behind Mower (SN: 417930746 & Above) (Rev B) (2025) Deck Assembly Parts Lookup with Diagrams

1

Exmark 146-2685

ASM, DECK W/ DECALS, 60

$3638.99

$

Usually ships in 0 days

2

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$167.99

$

In Stock, Qty 5

2:2

Exmark 116-0720

BEARING-BALL

$25.99

$

In Stock, Qty 12

2:3

Exmark 116-3312

SPACER-BEARING

$9.49

$

In Stock, only 4 left!

3

Exmark 116-3341

ASM-SPINDLE AND SEAL

$96.99

$

In Stock, Qty 7

4

Exmark 103-6383

USE 103-6383-S

(Superseded to 103-6383-S) 

Note: Optional Equipment

$36.99

$

In Stock, Qty 20+

4

Exmark 103-6388

USE 103-6388-S

(Superseded to 103-6388-S) 

Note: Optional Equipment

$39.99

$

In Stock, only 4 left!

4

Exmark 103-6393

USE 103-6393-S

(Superseded to 103-6393-S) 

$33.99

$

In Stock, Qty 20+

4

Exmark 103-6403

USE 103-6403-S

(Superseded to 103-6403-S) 

Note: Optional Equipment

$34.99

$

In Stock, Qty 20+

4

Exmark 116-5174

Blade-Extreme 2, 20.50"

Note: Optional Equipment

$

Currently unavailable 

5

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 12

6

Exmark 1-632954-03

BAFFLE WLD RH MULCH

$291.99

$

Usually ships in 3-6 days

7

Exmark 1-632948-03

BAFFLE WLD LH MULCH

$123.99

$

Usually ships in 3-6 days

8

Exmark 1-633956-03

XREF 1-633956-03 (EXMARK)

$59.99

$

In Stock, Qty 6

9

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

Note: Torque to 50-60 ft-lb | Apply lubricant to threads as needed to prevent seizing. Copper based anti-seize preferable. Grease is an acceptable substitute.

$8.99

$

In Stock, Qty 20+

10

Exmark 116-1286

GUARD,BEARING TOP .989

$5.99

$

In Stock, only 2 left!

11

Exmark 146-4608

SHEAVE,BLADE DRIVE 7.25

$39.99

$

Usually ships in 0 days

12

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

13

Exmark 116-7306

NUT-HEX

Note: Torque to 130-160 ft-lb

$2.99

$

In Stock, Qty 20+

14

Exmark 109-2872

SPACER-PULLEY

$23.99

$

In Stock, Qty 6

15

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

16

Exmark 126-2314

ASM, DECK IDLER

$212.99

$

Usually ships in 3-6 days

17

Exmark 3231-24

SCREW-CARR

$15.99

$

Usually ships in 3-6 days

18

Exmark 126-9195

SHIELD-GUARD, DUST

$3.49

$

In Stock, Qty 5

19

Exmark 146-4609

IDLER-PULLEY, FLAT

$37.99

$

In Stock, only 4 left!

20

Exmark 43-0940

SPACER

$5.99

$

In Stock, Qty 9

21

Exmark 146-4624

Pulley-Idler, Flat

$36.99

$

Usually ships in 0 days

22

Exmark 126-8043

SHIELD-DUST

$3.49

$

In Stock, Qty 20+

23

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

24

Exmark 1-603050

SPACER

$7.99

$

In Stock, Qty 11

25

Exmark 146-5304

ASM, SUPPORT LINK

$54.99

$

Usually ships in 0 days

25:1

Exmark 146-4894

PIN-DECK SUPPORT

$30.99

$

Usually ships in 0 days

25:2

Exmark 1-613204

BALLJOINT

$35.99

$

In Stock, Qty 20+

25:3

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

26

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

27

Exmark 103-7353

PIN-CUT HEIGHT

$12.99

$

In Stock, Qty 5

28

Exmark 146-5305

SPACER

$13.99

$

Usually ships in 0 days

29

Exmark 146-4895

PIN-DECK SUPPORT

$36.99

$

Usually ships in 0 days

30

Exmark 1-413425

SPACER-DECK SUPPORT

$6.99

$

In Stock, Qty 17

31

Exmark 135-4828

COLLAR, DECK HEIGHT PIN

$21.99

$

Usually ships in 3-6 days

32

Exmark 32121-32

PIN-ROLL

$1.99

$

In Stock, Qty 8

33

Exmark 1-806332

USE 32121-15

(Superseded to 32121-15) 

$1.99

$

In Stock, Qty 20+

34

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 20+

35

Exmark 116-6317

SPRING-EXTENSION

$30.99

$

In Stock, Qty 16

36

Exmark 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

37

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

38

Exmark 32128-19

NUT-HF

$1.99

$

In Stock, only 1 left!

39

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

40

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

41

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

42

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$55.99

$

In Stock, Qty 20+

43

Exmark 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, Qty 5

44

Exmark 126-2539

USE 126-2539-SL

(Superseded to 126-2539-SL) 

$199.99

$

In Stock, Qty 5

45

Exmark 109-6982

WIREFORM-COVER

$12.99

$

In Stock, only 2 left!

46

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

47

Exmark 142-7105

SHIELD, RT

$31.99

$

Usually ships in 3-6 days

48

Exmark 142-7104

SHIELD, LT

$31.99

$

Usually ships in 3-6 days

49

Exmark 146-5506

ASM, IDLER WITH TARGET

$72.99

$

Usually ships in 0 days

50

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, only 3 left!

51

Exmark 146-5308

SPACER

$17.99

$

Usually ships in 0 days

52

Exmark 146-2647-01

BRACKET-SENSOR, BLADE

$41.99

$

Usually ships in 0 days

53

Exmark 146-2958

SENSOR-SPEED

$315.99

$

Usually ships in 0 days

54

Exmark 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 10

55

Exmark 32180-400

CLIP-TIE, FIR TREE W/TIE, 5MM/.196"" HOLE

$5.99

$

Usually ships in 0 days

56

Exmark 116-8131

AXLE, ROLLER

$15.99

$

In Stock, Qty 20+

57

Exmark 103-8415

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

58

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

59

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

60

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 12

61

Exmark 146-5530

KIT,SUPPORT LINK W/PIN

$110.99

$

Usually ships in 0 days

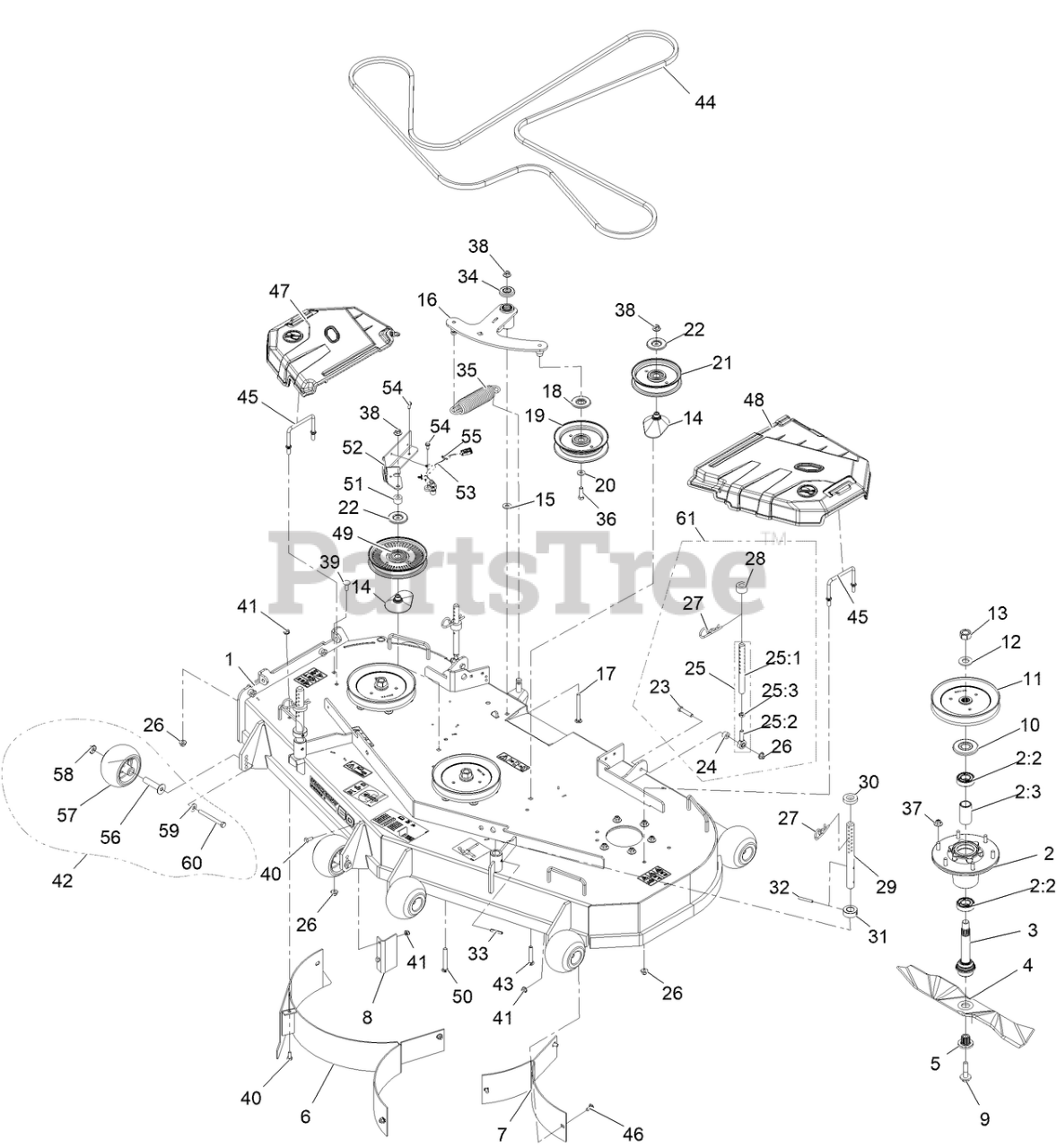

TTA749AKC604N0 - Exmark 60" Turf Tracer Autonomous Walk-Behind Mower (SN: 417930746 & Above) (Rev B) (2025) Deck Assembly Parts Diagram

Deck Assembly Parts Diagram
