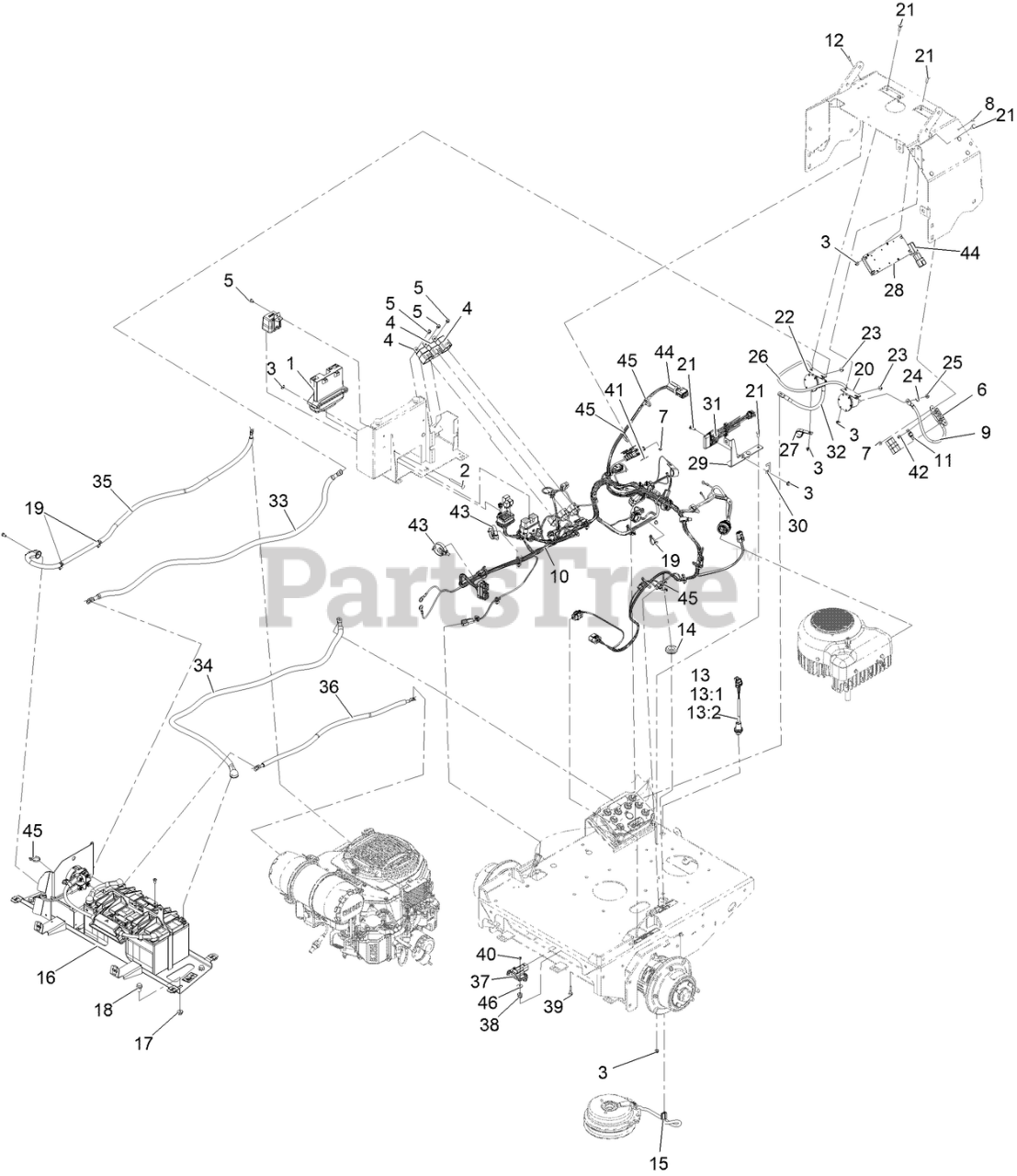

TTA749AKC604N0 - Exmark 60" Turf Tracer Autonomous Walk-Behind Mower (SN: 417930746 & Above) (Rev B) (2025) Electrical Assembly Parts Diagram

60" Turf Tracer Autonomous Walk-Behind Mower

Electrical Assembly Parts Diagram

  • Title

1

Exmark 142-9022

Controller-Safety

$

$

Currently unavailable

2

Exmark 3229-8

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

3

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

4

Exmark 70-1480

RELAY

$119.99

$

Usually ships in 3-6 days

0

5

Exmark 137-4795

Screw

$1.49

$

In Stock, Qty 20+

0

6

Exmark 132-9796

FUSE-HOLDER, MIDI FUSE

$20.99

$

Usually ships in 0 days

0

7

Exmark 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

8

Exmark 104-1450

Bolt-CARR

$

$

Currently unavailable

9

Exmark 146-3490

CABLE-GEN, RD ASM

$28.99

$

Usually ships in 0 days

0

10

Exmark 146-2908

HARNESS-WIRE, CHASSIS

$1924.99

$

Usually ships in 0 days

0

11

Exmark 122-2621

FUSE-80A

$42.99

$

Usually ships in 0 days

0

12

Exmark 3290-321

SCREW-HWH

$4.99

$

Usually ships in 3-6 days

0

13

Exmark 115-5300

PROXIMITY SWITCH ASM

$161.99

$

In Stock, Qty 6

0

13:1

Exmark 117-3207

NUT-HEX

$22.99

$

In Stock, only 2 left!

0

13:2

Exmark 117-3208

WASHER-LOCK, INTERNAL TOO

$11.99

$

In Stock, only 4 left!

0

14

Exmark 1-543286

GROMMET

$13.99

$

Usually ships in 3-6 days

0

15

Exmark 126-0624

HARNESS-CLUTCH PIGTAIL

$16.99

$

In Stock, only 2 left!

0

16

Battery ASM

Note: Not serviced separately

$

$

Not available

17

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 3234-1

Screw-HH Flg 3/8-16 X 3/4

$1.99

$

In Stock, Qty 14

0

19

Exmark 32180-400

CLIP-TIE, FIR TREE W/TIE, 5MM/.196"" HOLE

$5.99

$

Usually ships in 0 days

0

20

Exmark 122-1274

Contactor-DC, 48V

$

$

Currently unavailable

21

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, Qty 10

0

22

Exmark 145-3542

CONTACTOR-DC, 12V

$94.99

$

Usually ships in 3-6 days

0

23

Exmark 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

24

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, only 2 left!

0

25

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

26

Exmark 146-3622

CABLE-CONT, RD ASM

$31.99

$

Usually ships in 0 days

0

27

Exmark 120-5018

CLIP-OPEN J, COATED

$4.49

$

Usually ships in 0 days

0

28

Exmark 144-6975

CONVERTER DC-DC

$474.99

$

Usually ships in 3-6 days

0

29

Exmark 146-4819-01

PLATE- CAN ISOLATOR MNT

$62.99

$

Usually ships in 0 days

0

30

Exmark 32180-020

Clip-Connector

$

$

Currently unavailable

31

Exmark 119-4330

Isolated Can Module ASM

$574.99

$

Usually ships in 3-6 days

0

32

Exmark 146-3623

CABLE-MTR CTR, RD ASM

$72.99

$

Usually ships in 0 days

0

33

Exmark 146-3624

CABLE-PWR, RD ASM

$200.99

$

Usually ships in 0 days

0

34

Exmark 146-3625

CABLE-GRND, BLK ASM

$206.99

$

Usually ships in 0 days

0

35

Exmark 146-3626

CABLE-GRND, BLK ASM

$72.99

$

Usually ships in 0 days

0

36

Exmark 146-3627

CABLE-PWR, RD ASM

$54.99

$

Usually ships in 0 days

0

37

Exmark 146-5720

Kit-Complete Imu

$

$

Currently unavailable

38

Exmark 161-7455

ISOLATOR-RUBBER

$1.49

$

Usually ships in 0 days

0

39

Exmark 146-5204

SCREW-SHOULDER

$11.99

$

Usually ships in 0 days

0

40

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

41

Exmark 146-4949

DECAL-FUSE,MAIN

$16.99

$

Usually ships in 0 days

0

42

Exmark 120-4580

Nut-HF

$0.99

$

Usually ships in 3-6 days

0

43

Exmark 32181-018

Clip, Fir Tree W/Tie

$

$

Currently unavailable

44

Exmark 147-8183

FERRITE, SNAP-ON

$12.99

$

Usually ships in 0 days

0

45

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

46

Exmark 3256-61

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0
