TTA749AKC604N0 - Exmark 60" Turf Tracer Autonomous Walk-Behind Mower (SN: 417930746 & Above) (Rev B) (2025) Engine Assembly Parts Diagram

60" Turf Tracer Autonomous Walk-Behind Mower

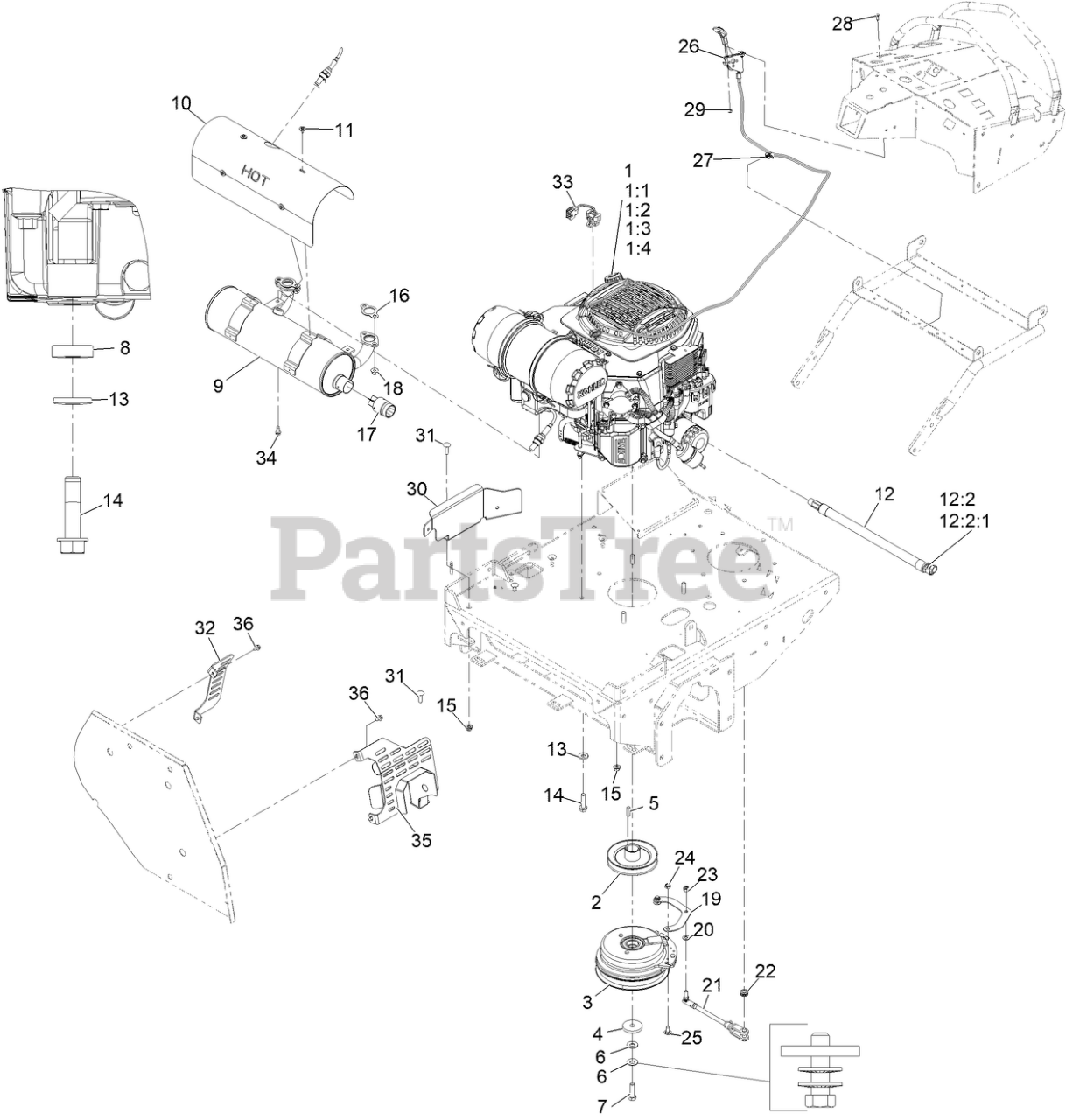

Engine Assembly Parts Diagram

  • Title

1

Exmark 126-8306

Engine-Kohler Ecv749-3064

$

$

Currently unavailable

1:1

Kohler 52 050 02-S Engine Oil Filter

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

1:2

Kohler 25 083 01-S Engine Air Filter

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

1:3

Kohler 25 083 04-S Safety Filter

Note: Not serviced separately | Obtain parts from www.kohlerplus.com

$

$

Not available

1:4

Kohler 25 050 42-S Fuel Filter

Note: Not serviced separately

$

$

Not available

2

Exmark 142-9579

PULLEY-ENGINE

$39.99

$

Usually ships in 3-6 days

0

3

Exmark 146-1268

CLUTCH-200CMS

$559.99

$

Usually ships in 3-6 days

0

4

Exmark 109-6919

WASHER-CLUTCH

$8.99

$

In Stock, Qty 6

0

5

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 20+

0

6

Exmark 1-603610

WASHER-SPRING

$5.99

$

In Stock, Qty 20+

0

7

Exmark 87-2080

BOLT-HEX, TAP

$10.99

$

Usually ships in 3-6 days

0

8

Exmark 62-6660

SPACER

$0.99

$

In Stock, Qty 7

0

9

Exmark 116-8653

MUFFLER-TTX, EFI

$356.99

$

Usually ships in 3-6 days

0

10

Exmark 116-8654

SHIELD-MUFFLER,TTX EFI

$71.99

$

Usually ships in 3-6 days

0

11

Exmark 116-1103

SCREW-HH, THREAD FORMING

$2.99

$

In Stock, Qty 5

0

12

Exmark 116-5316

OIL DRAIN HOSE ASM

$62.99

$

In Stock, Qty 11

0

12:2

Exmark 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$9.49

$

In Stock, only 1 left!

0

12:2:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 14

0

13

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

14

Exmark 125-1073

SCREW-HWH

$3.99

$

In Stock, only 2 left!

0

15

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 110-6697

GASKET-EXHAUST

$7.49

$

Usually ships in 3-6 days

0

17

Exmark 142-7683

Screen-Spark Arrestor

$33.99

$

Usually ships in 3-6 days

0

18

Exmark 68-9400

NUT-FLANGE

$2.99

$

In Stock, only 1 left!

0

19

Exmark 126-2602

STRAP, CLUTCH

$12.99

$

In Stock, only 2 left!

0

20

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

21

Exmark 126-0620

ASM, CLUTCH ANCHOR

$76.99

$

In Stock, only 2 left!

0

22

Exmark 237-136

GROMMET

$4.49

$

In Stock, only 3 left!

0

23

Exmark 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 6

0

24

Exmark 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

25

Exmark 3230-18

SCREW-CARR

$5.99

$

In Stock, Qty 8

0

26

Exmark 109-3958

CONTROL-THROTTLE

$44.99

$

In Stock, Qty 15

0

27

Exmark 32180-400

CLIP-TIE, FIR TREE W/TIE, 5MM/.196"" HOLE

$5.99

$

Usually ships in 3-6 days

0

28

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

29

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Exmark 146-5921-03

GUARD, HEAT

$49.99

$

Usually ships in 3-6 days

0

31

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

32

Exmark 146-5919-03

Guard, Heat [black]

$31.99

$

Usually ships in 3-6 days

0

33

Exmark 146-5436

HARNESS-ENGINE JUMPER

$36.99

$

Usually ships in 3-6 days

0

34

Exmark 116-5722

SCREW-HWHTF

$1.99

$

Usually ships in 3-6 days

0

35

Exmark 146-5960-03

Weld, Muffler Guard [black]

$104.99

$

Usually ships in 3-6 days

0

36

Exmark 32104-116

SCREW-HWHTF

$0.99

$

Usually ships in 3-6 days

0
