TTA749AKC604N0 - Exmark 60" Turf Tracer Autonomous Walk-Behind Mower (SN: 417930746 & Above) (Rev B) (2025) Engine Deck Assembly Parts Diagram

60" Turf Tracer Autonomous Walk-Behind Mower

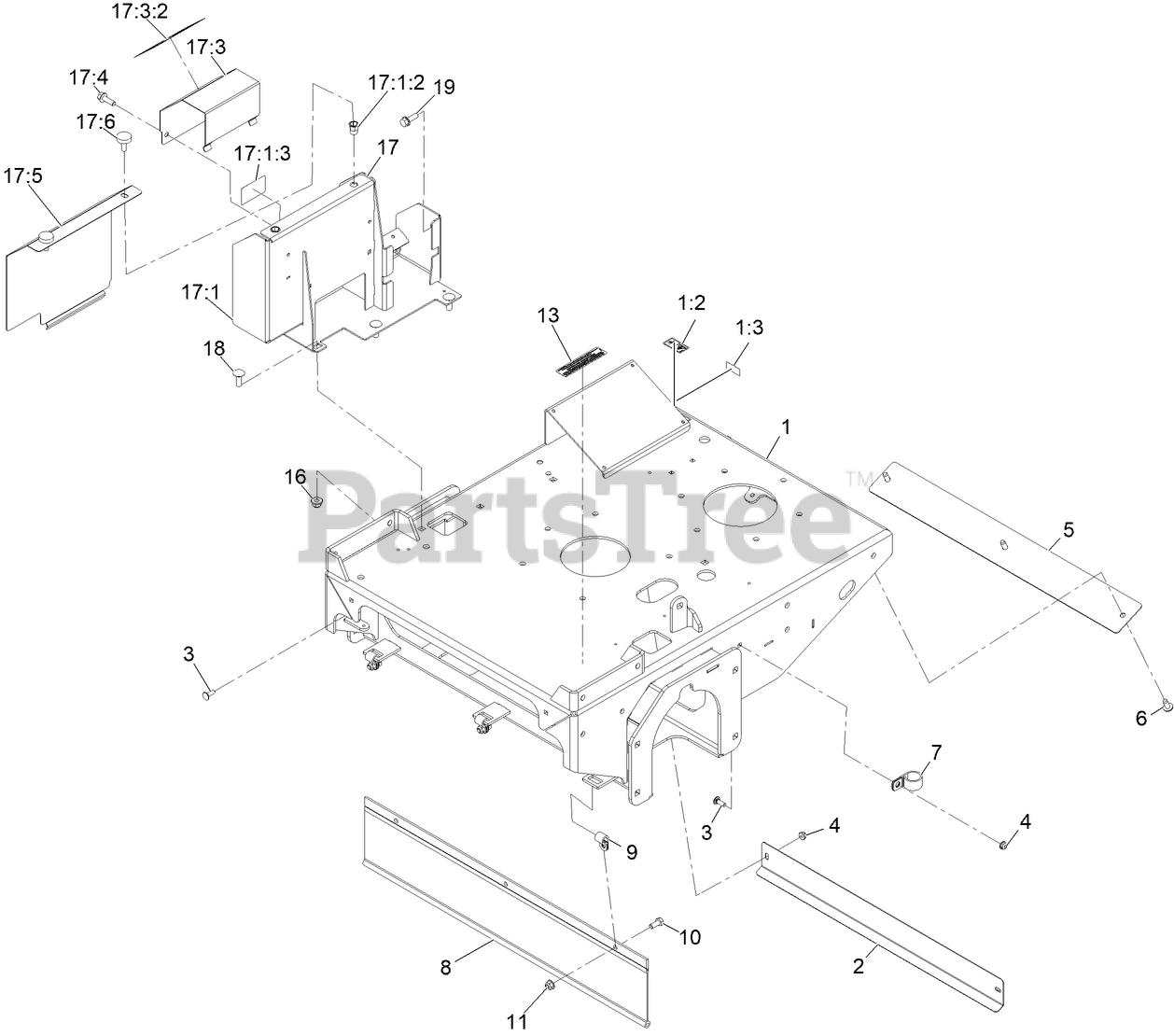

Engine Deck Assembly Parts Diagram

  • Title

1

Exmark 146-3853

ENGINE DECK ASM

$1112.99

$

Usually ships in 3-6 days

0

1:2

Exmark 146-3693

DECAL-SHOCK HAZARD

$20.99

$

Usually ships in 3-6 days

0

1:3

Exmark 114-1606

DECAL-DANGER

$2.99

$

In Stock, Qty 7

0

2

Exmark 142-9638-01

GUARD-LOWER

$35.99

$

Usually ships in 3-6 days

0

3

Exmark 1-807512

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

4

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Exmark 142-9622-01

PANEL-BOTTOM

$28.99

$

Usually ships in 3-6 days

0

6

Exmark 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-643312

CLIP-LOOM

$6.99

$

In Stock, only 2 left!

0

8

Exmark 103-2224

SHIELD,DRAG

$75.99

$

In Stock, only 2 left!

0

9

Exmark 1-413510

CLIP-LOOM

$2.99

$

In Stock, Qty 12

0

10

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$3.49

$

Usually ships in 3-6 days

0

16

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Bracket ASM-Controller

Note: Not serviced separately

$

$

Not available

17:1

Exmark 146-5501

ASM-ELEC HOUSING

$397.99

$

Usually ships in 3-6 days

0

17:1:2

Exmark 138-2899

Nut-Clinch

$1.99

$

Usually ships in 3-6 days

0

17:1:3

Exmark 146-4948

DECAL-FUSE,MAIN

$10.99

$

Usually ships in 3-6 days

0

17:3

Exmark 146-4809

ASM- RELAY COVER

$88.99

$

Usually ships in 3-6 days

0

17:3:2

Exmark 146-4154

DECAL-SERVICE AID

$21.99

$

Usually ships in 3-6 days

0

17:4

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

17:5

Exmark 146-4781-03

COVER- HOUSING

$71.99

$

Usually ships in 3-6 days

0

17:6

Exmark 146-3450

SCREW-THUMB

$3.99

$

Usually ships in 3-6 days

0

18

Exmark 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

19

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0
